Door/Trunk Ajar Indicator/Lamp: Locations

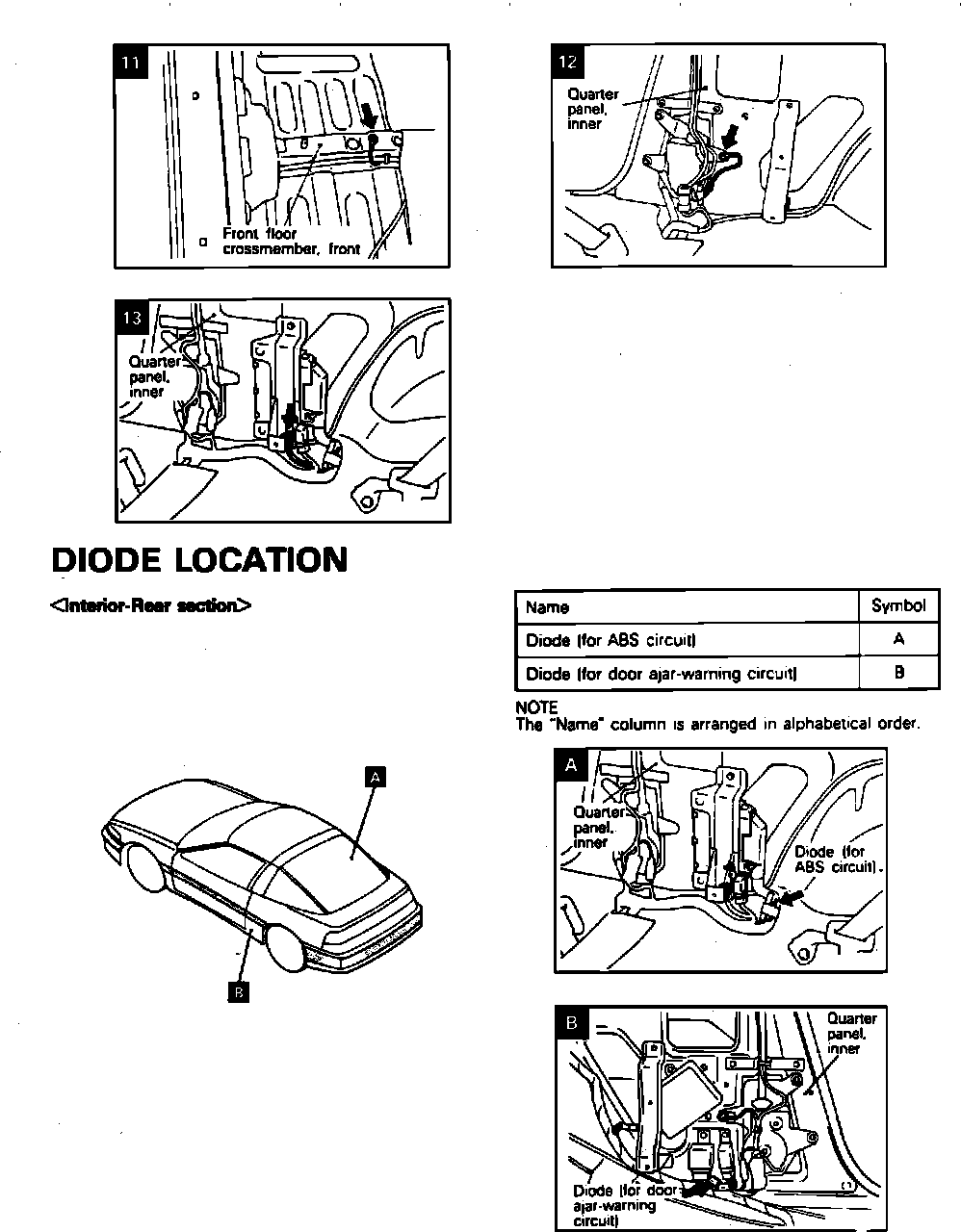

Interior & Luggage Compartment Ground Locations & Diode Locations:




LH "B" Pillar
