Block Diagrams

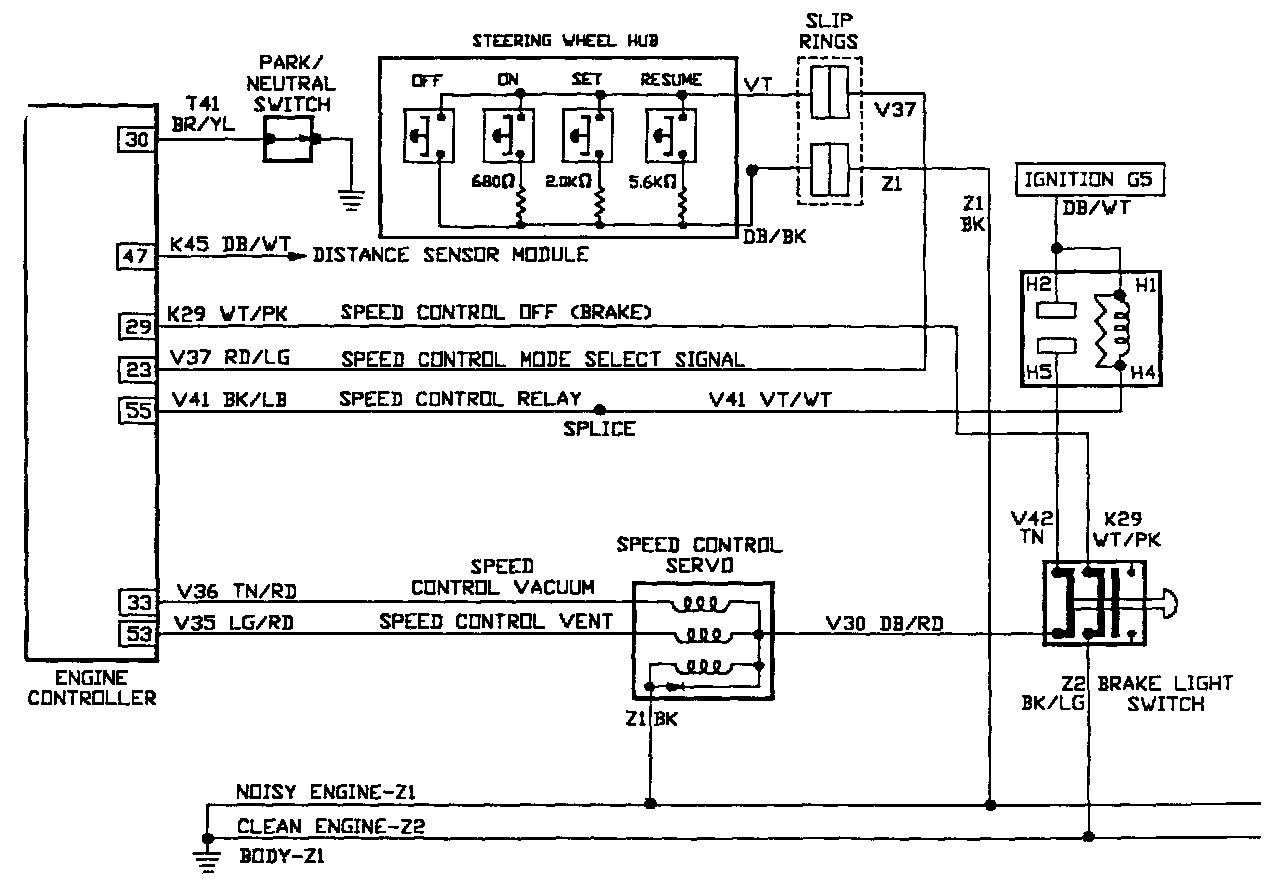

NOTE: Only speed control system circuits and wire colors are called out in the illustration above. For information about other circuits, refer to Powertrain Management.

CAVITY CIRCUIT FUNCTION

23 V37 RD/LG S/C Switch
29 K29 WT/PK Brake Switch Sense
30 T41 BR/YL Park/Neutral Switch
33 V36 TN/RD S/C Vacuum Solenoid
47 K45 DB/WT Speed Signal Processor
53 V35 LG/RD S/C Vent Solenoid
55 V41 BK/LB S/C Control Relay
