Instrument Cluster / Carrier
>>
Instrument Panel Circuit Board
Instrument Panel Circuit Board

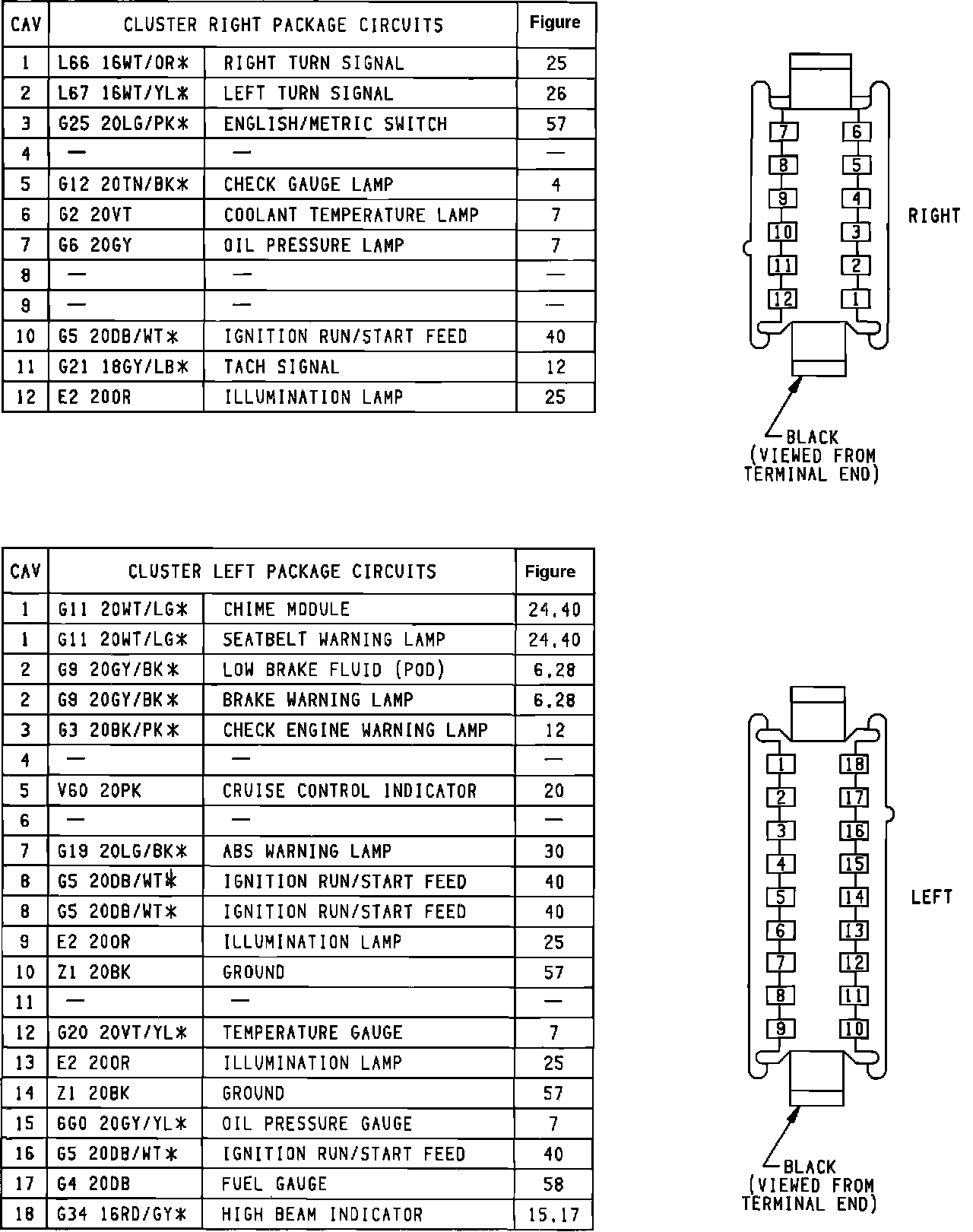

P.C. Board Connectors:
