Home >> Eagle >> 1992 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Front Crossbody to Doors Interconnect

Front Crossbody to Doors Interconnect

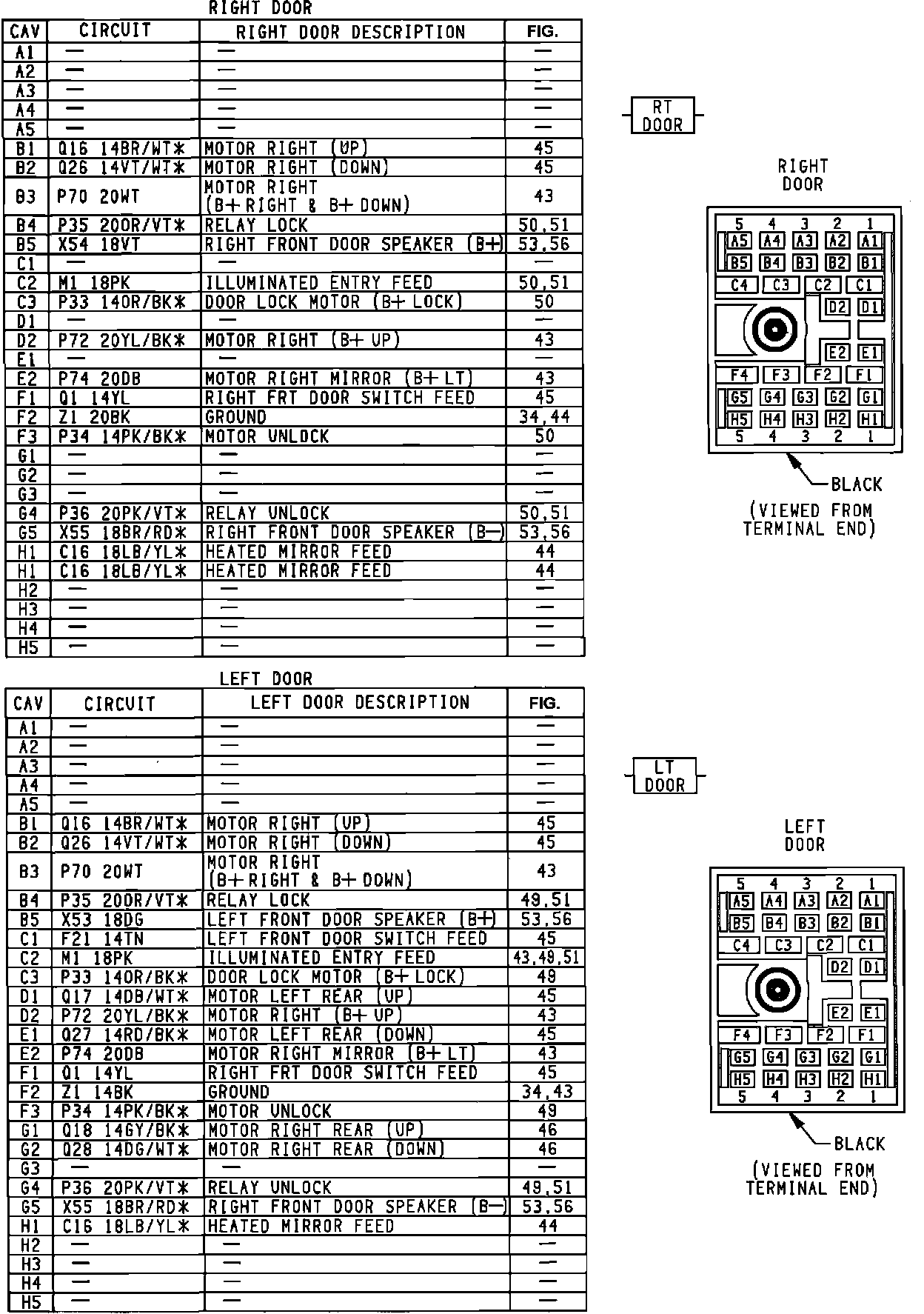

Front Crossbody To Doors Interconnect:
