Vehicle Speed Sensor/Transducer - Cruise Control

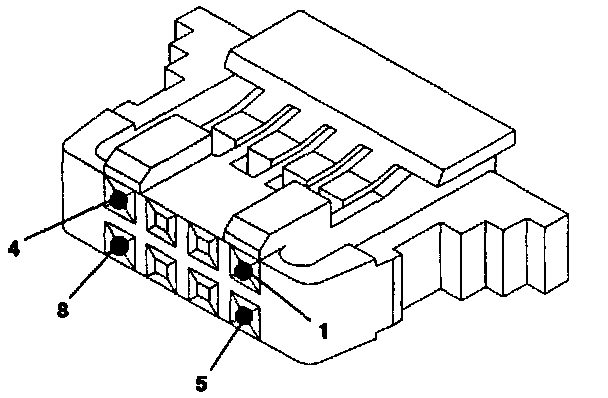

SPEED SENSOR BUFFER MODULE CONNECTOR


CAVITY CIRCUIT FUNCTION

1 K45 DB/WT Engine Controller Sense
2 G7 WT/OR Passive Restraint Module Sense
3 G67 GY Odometer Module
4 K86 RD/LB Speed/Dist. Sensor (-)
5 Z2 BK/LG Clean Module Ground
6 Z11 Uninsulated Ground
7 K87 RD/BK Speed/Dist. Sensor (+)
8 Z1 BK Ground
