Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

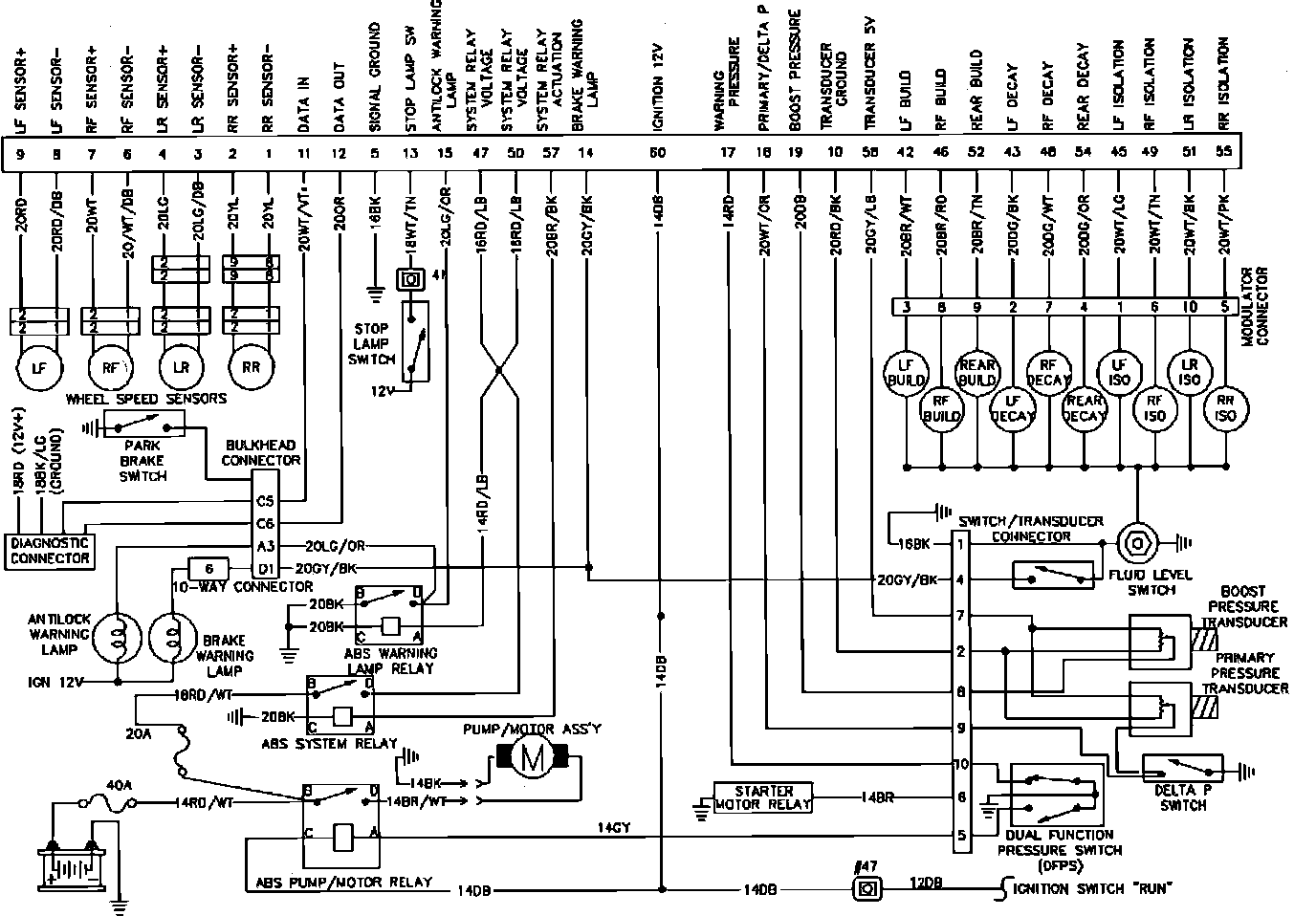

Fig. 4 Bendix Anti-Lock 10 Braking System Wiring Diagram:
Fig. 7 Bendix Anti-Lock 10 Braking System Connector Identification:
Anti-Lock Brake System:
Anti-Lock Brake System:
