Eagle
>>
1992
>>
Premier V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device Control Module
Audible Warning Device Control Module

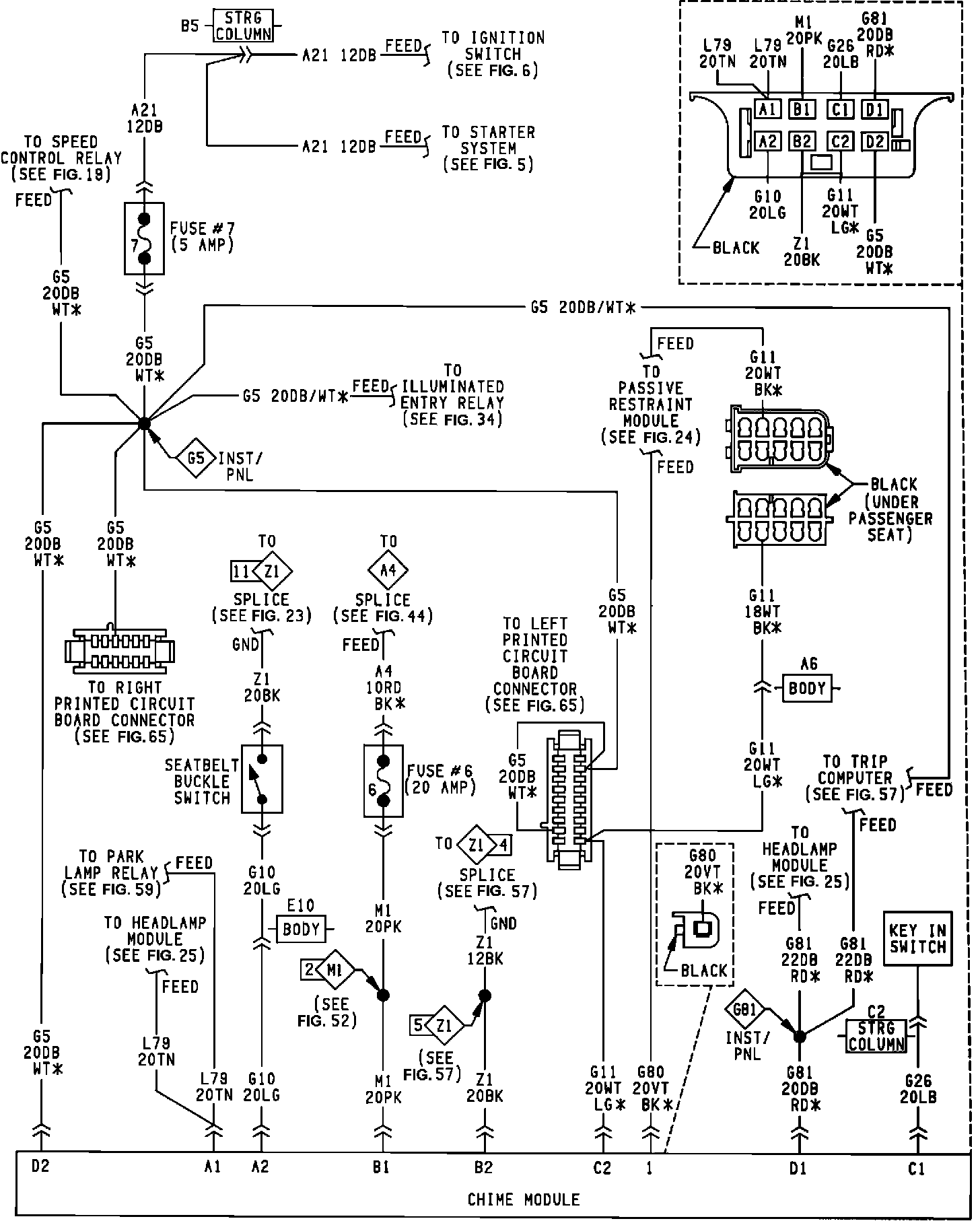

Chime Module:
