Home >> Eagle >> 1992 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Keyless Entry

Keyless Entry

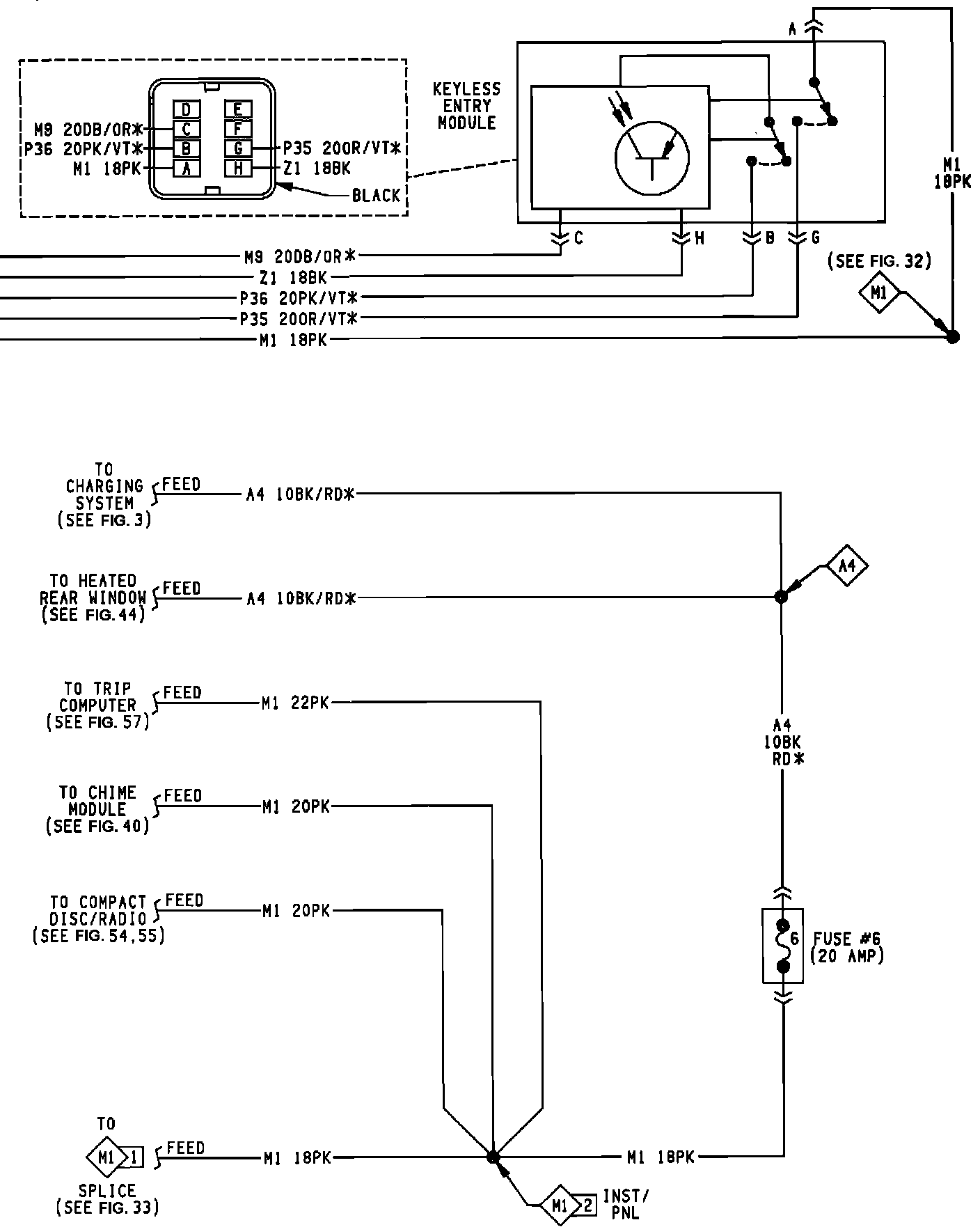

Keyless Entry System:

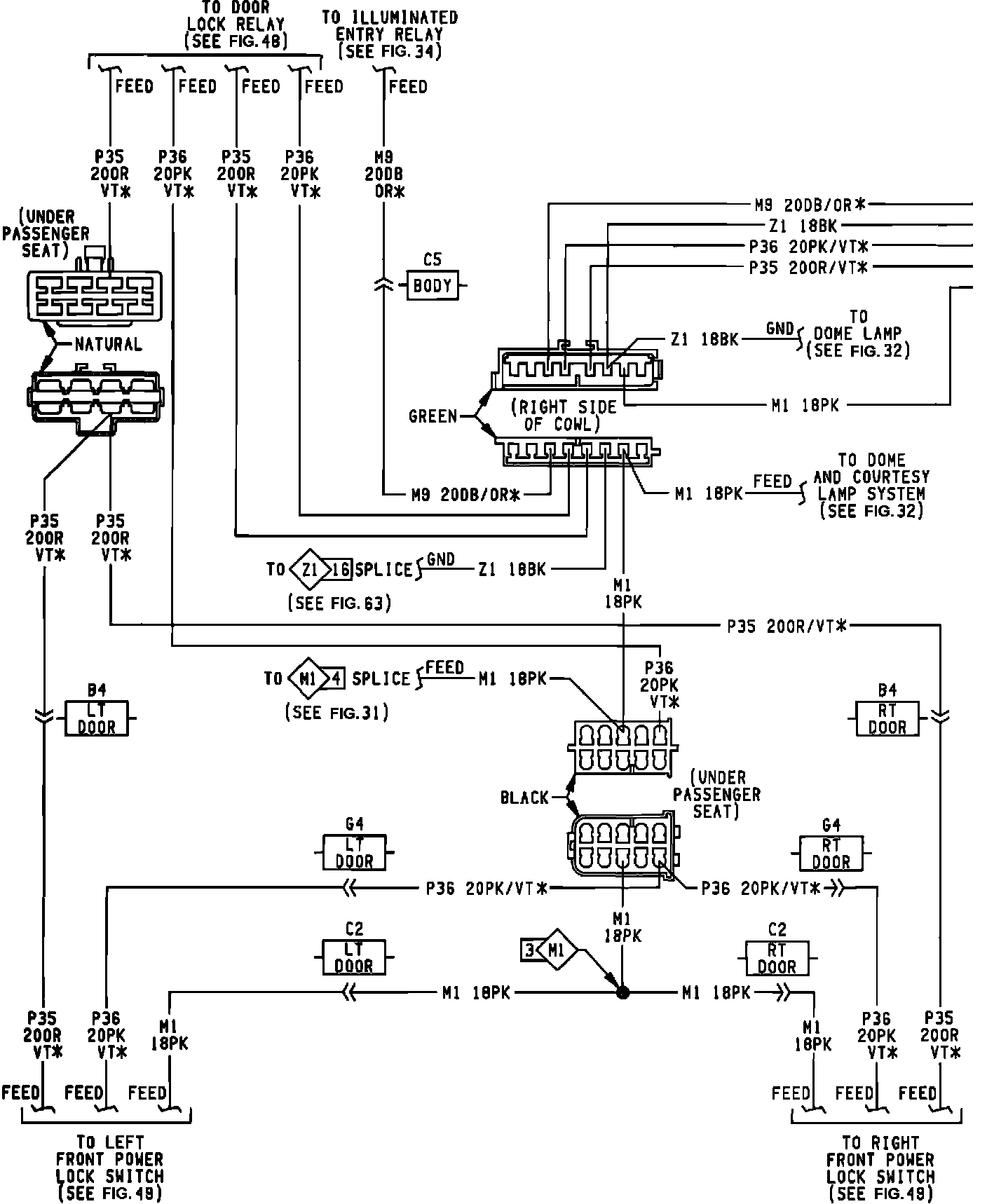

Keyless Entry System:
