Cargo Lamp

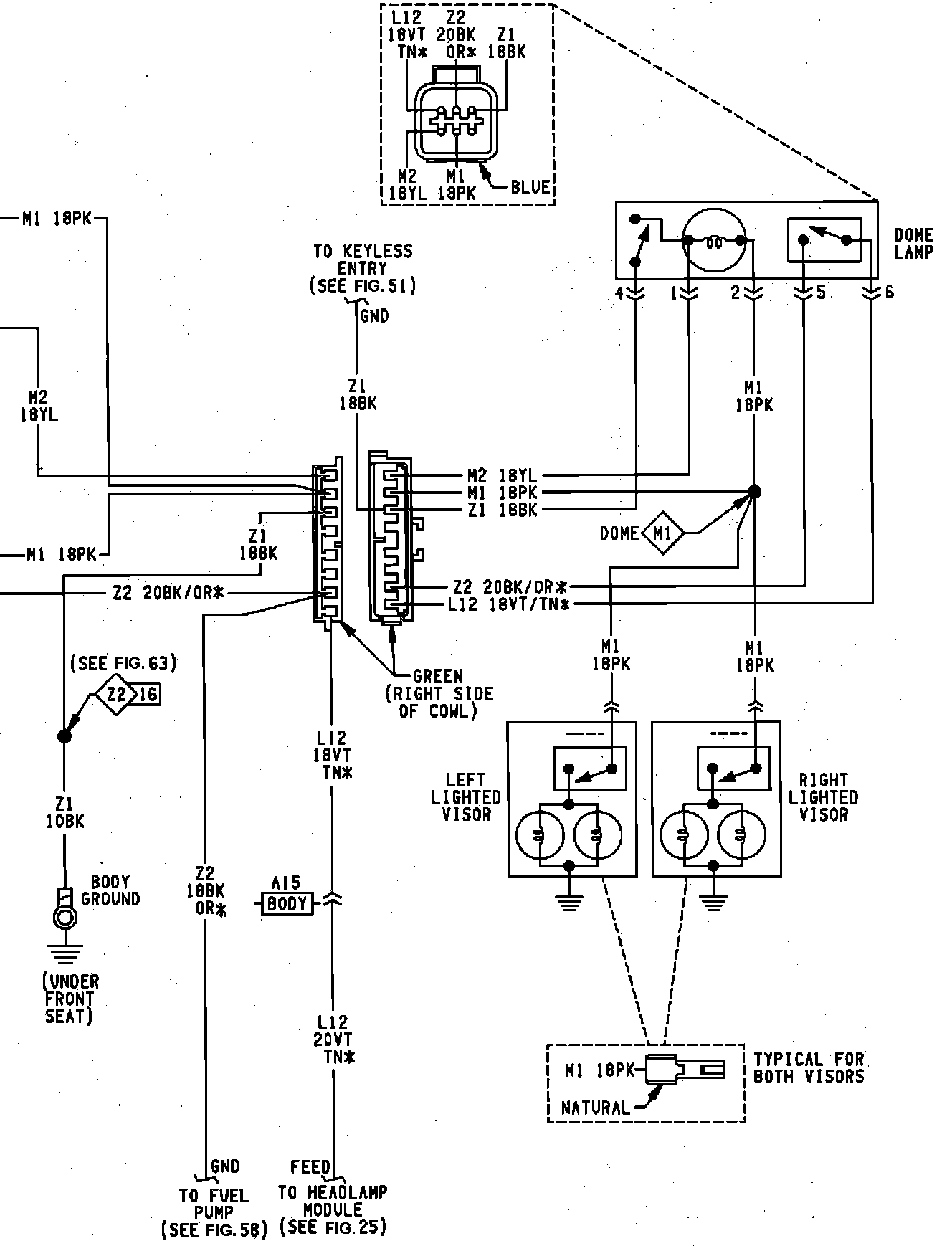

Dome & Courtesy Lamp System:

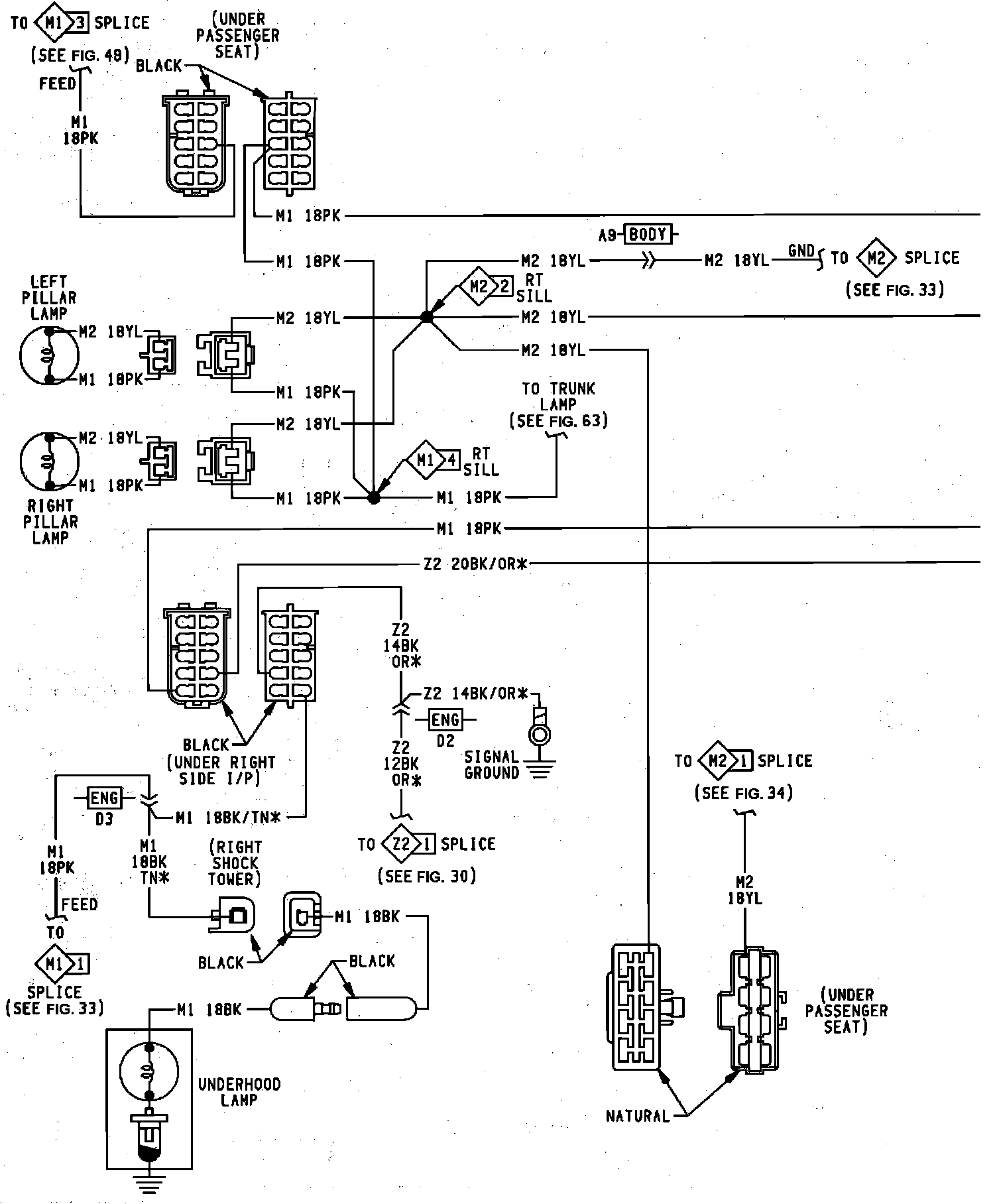

Dome & Courtesy Lamp System:



Dome & Courtesy Lamp System:



Dome & Courtesy Lamp System:
