Tail Lamp

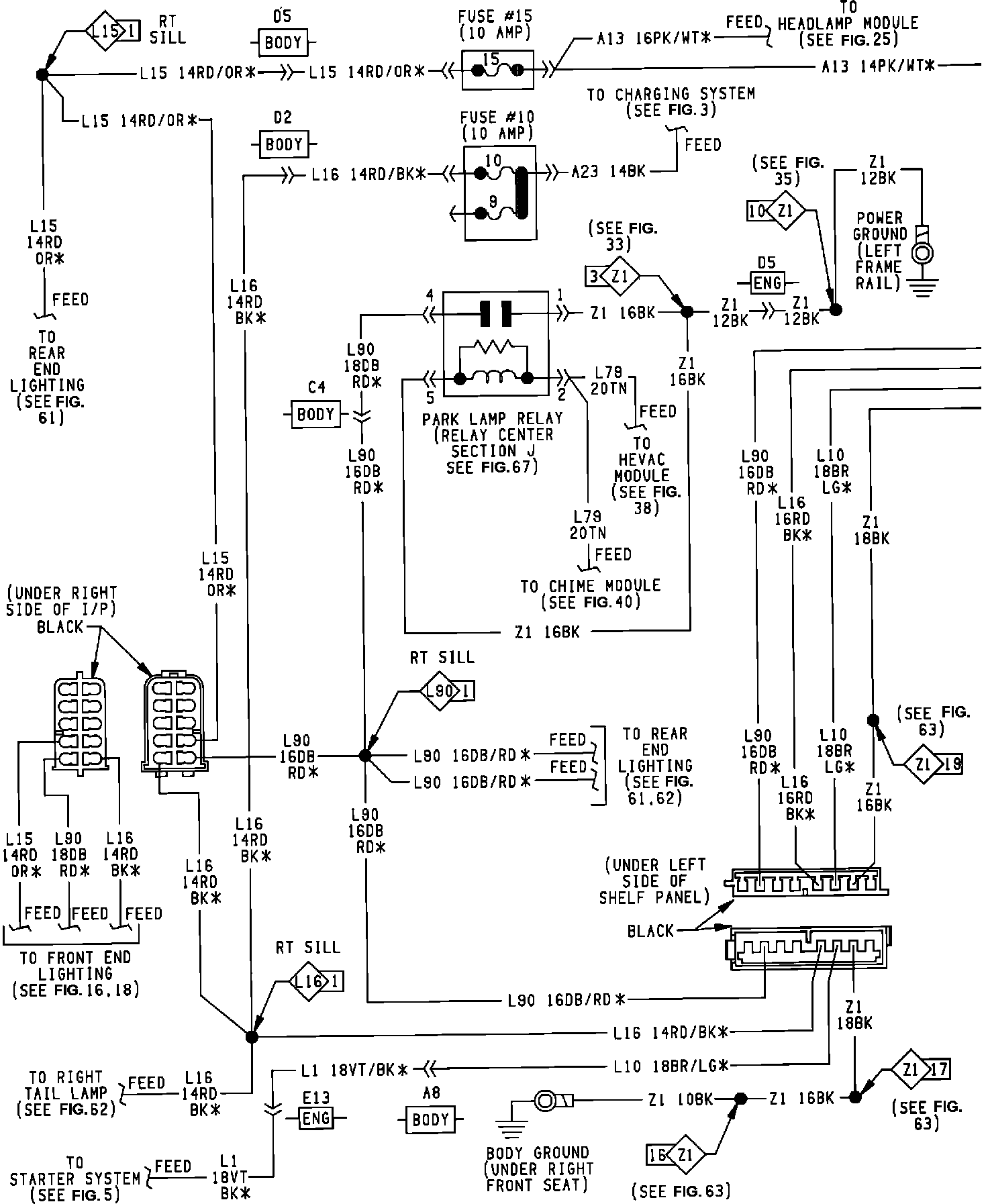

Rear End Lighting:



Rear End Lighting:

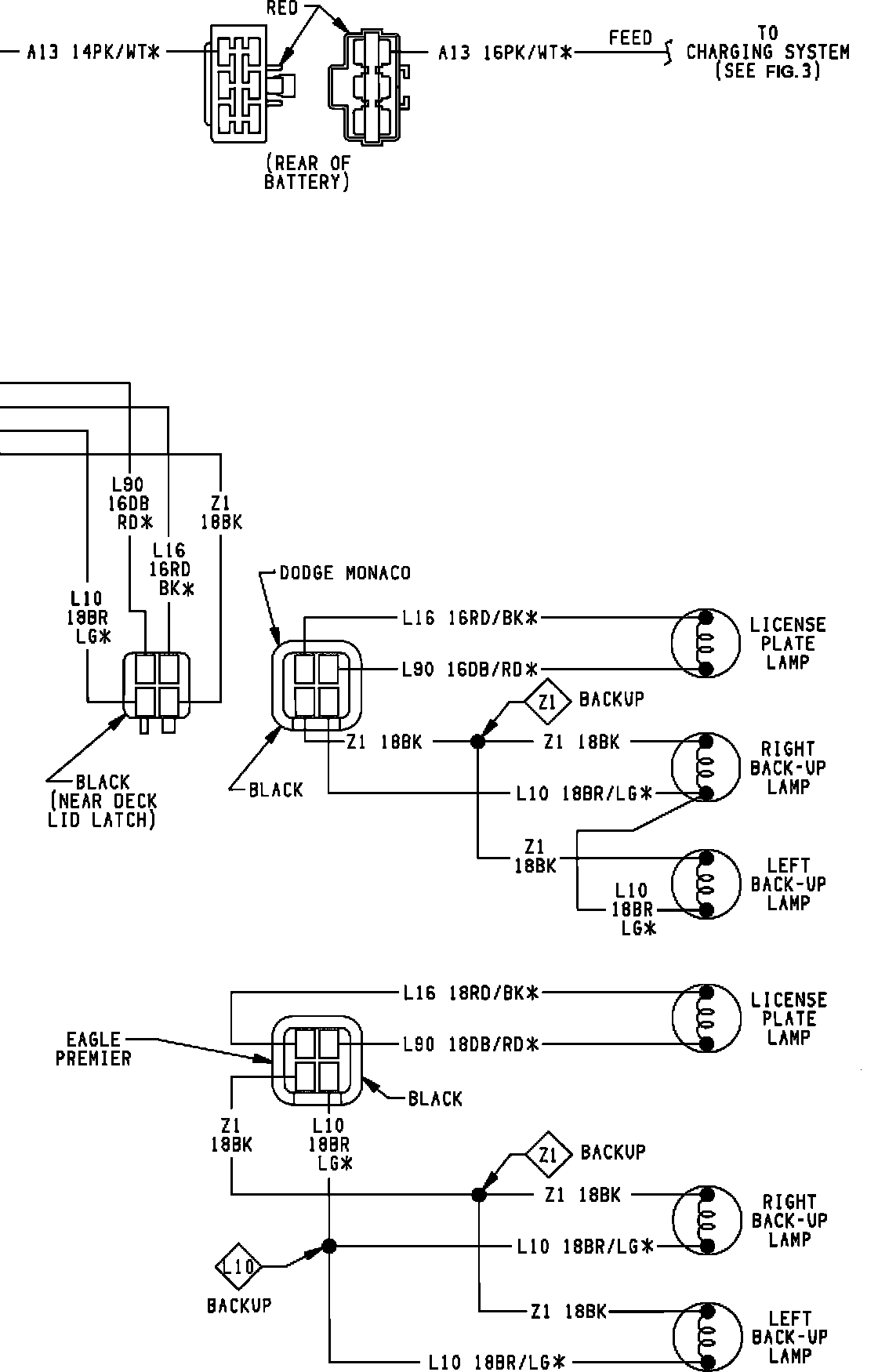

Rear End Lighting:



Rear End Lighting:

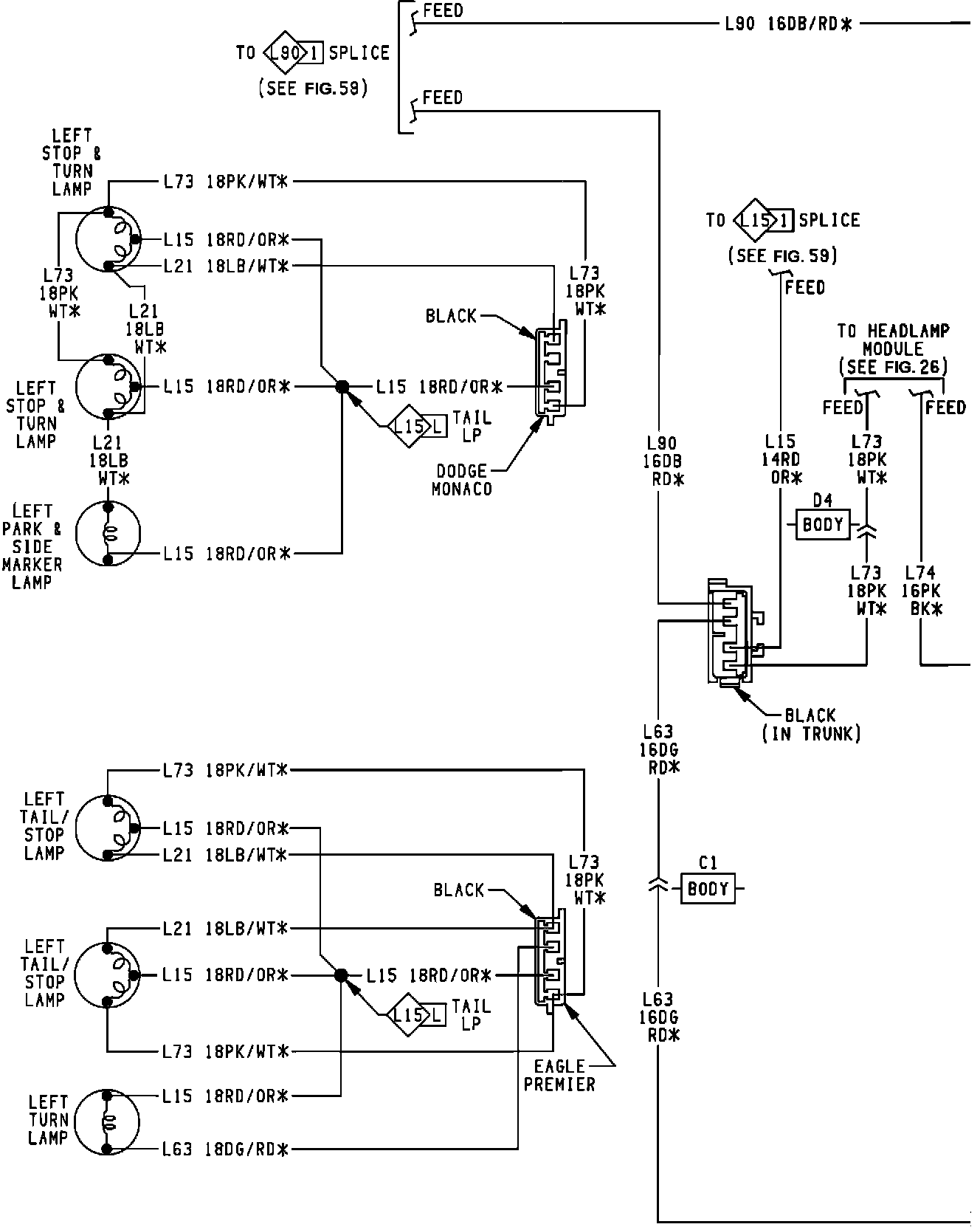

Tail Lamp Wiring:
