Radiator Cooling Fan Motor Relay
Radiator Cooling Fan Motor Relay

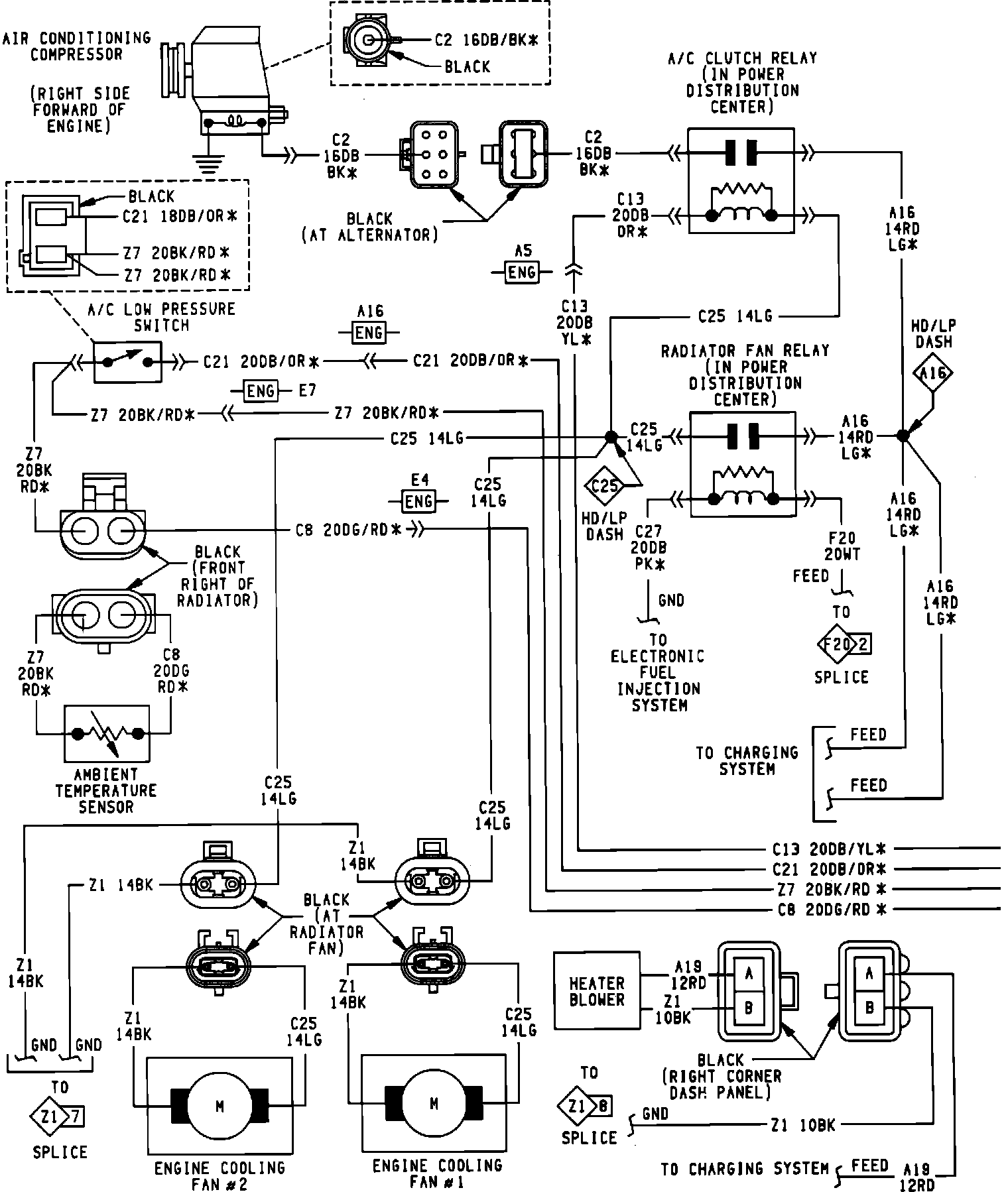

A/C And Heater Wiring Diagram (part 1 Of 2):

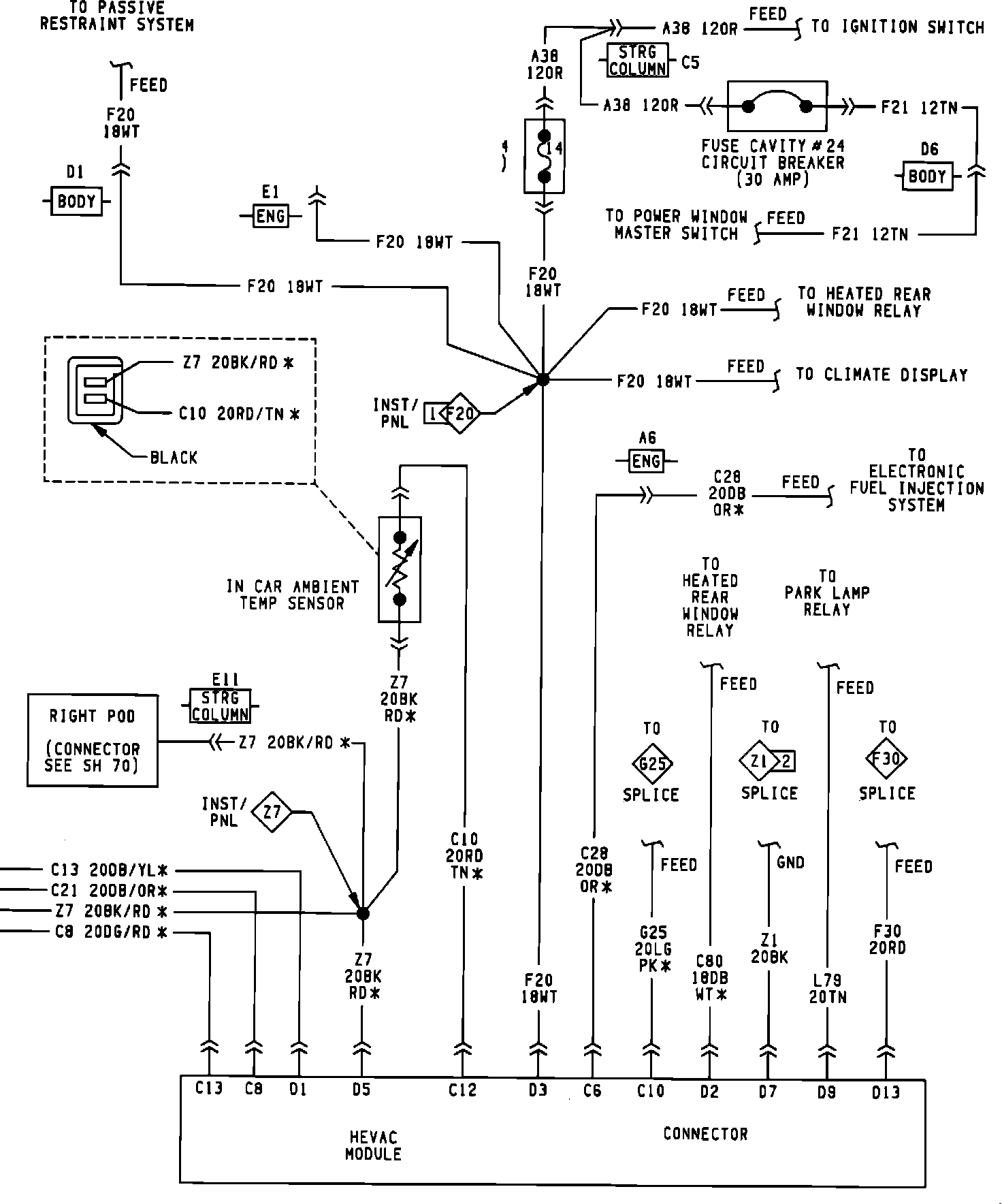

A/C And Heater Wiring Diagram (part 2 Of 2):
