Home >> Eagle >> 1992 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> With Compact Disc

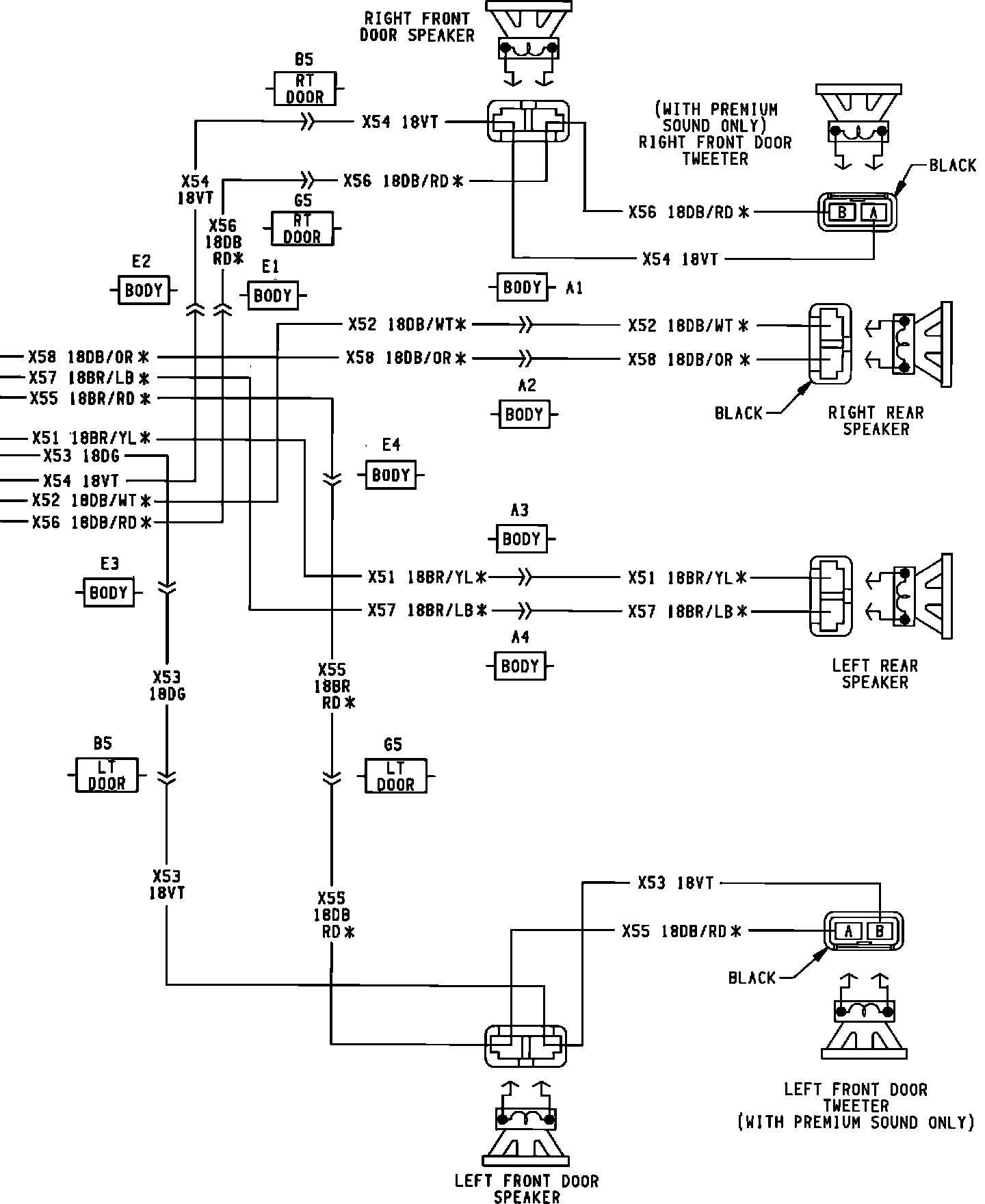

With Compact Disc

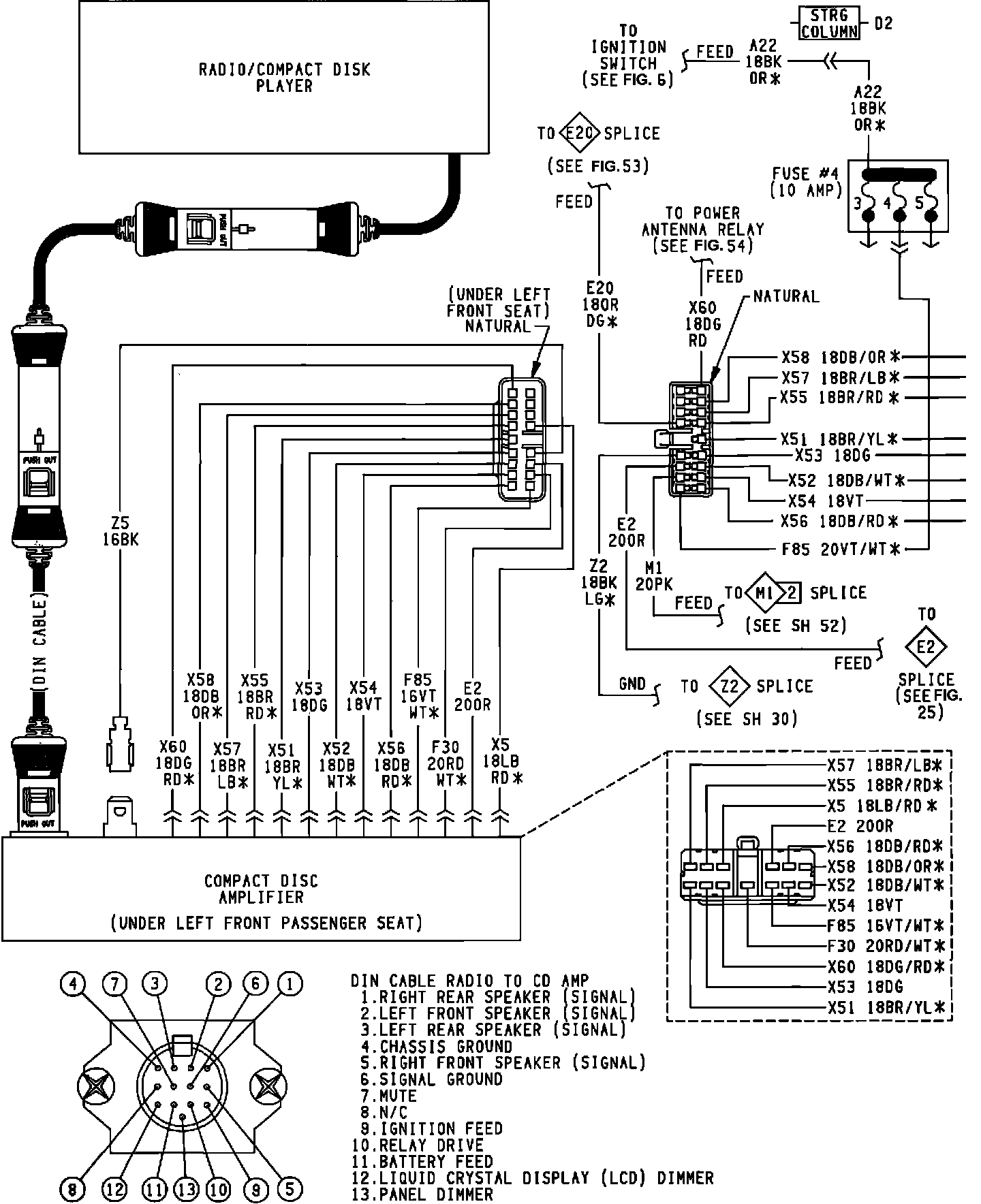

Compact Disc:



Compact Disc:
