System Diagram

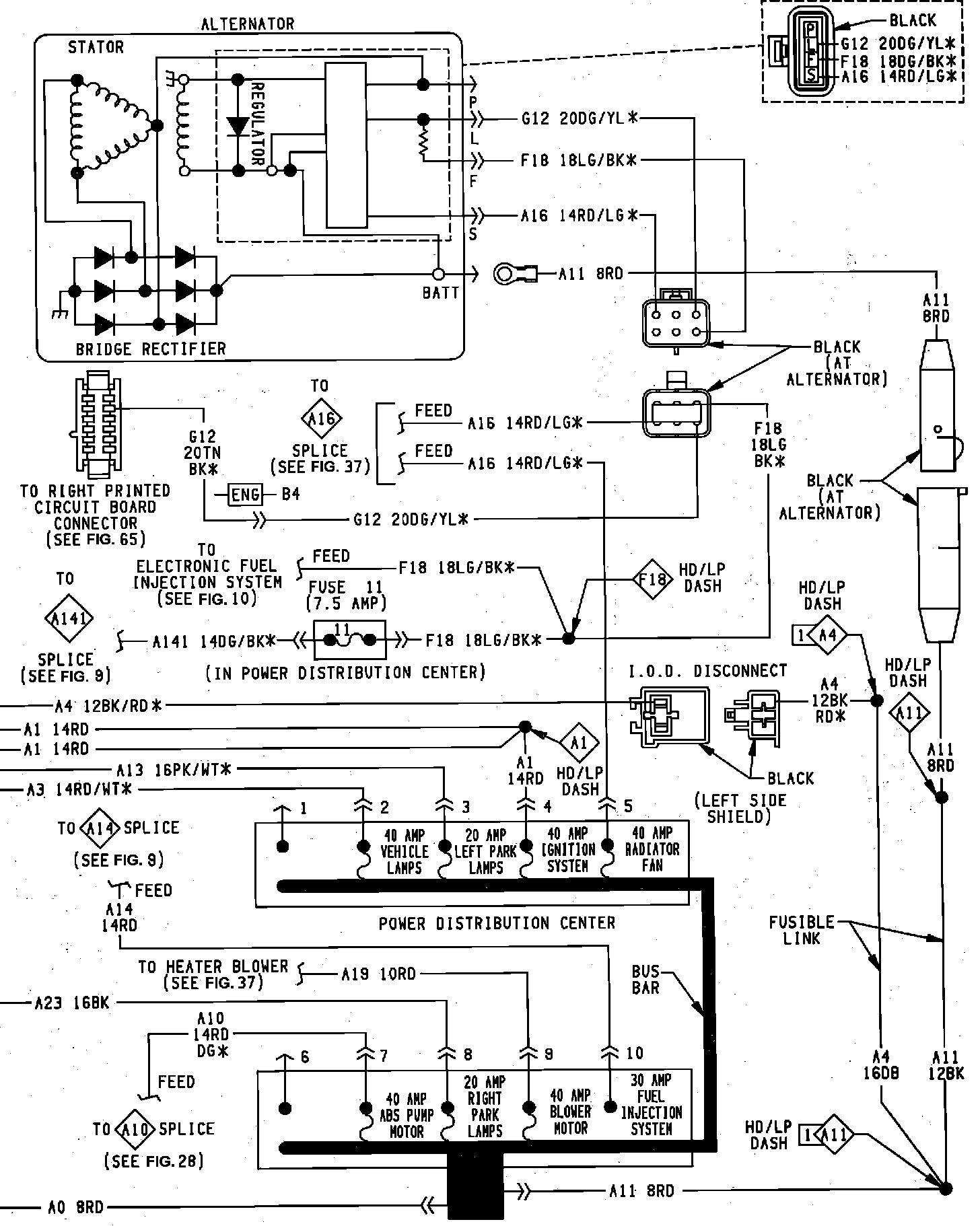

Fig. 11 Wiring Diagram Of Mitsubishi Charging System (Part 1 Of 2):



Fig. 11 Wiring Diagram Of Mitsubishi Charging System (Part 2 Of 2):



Charging System:



Charging System:



Starter System:

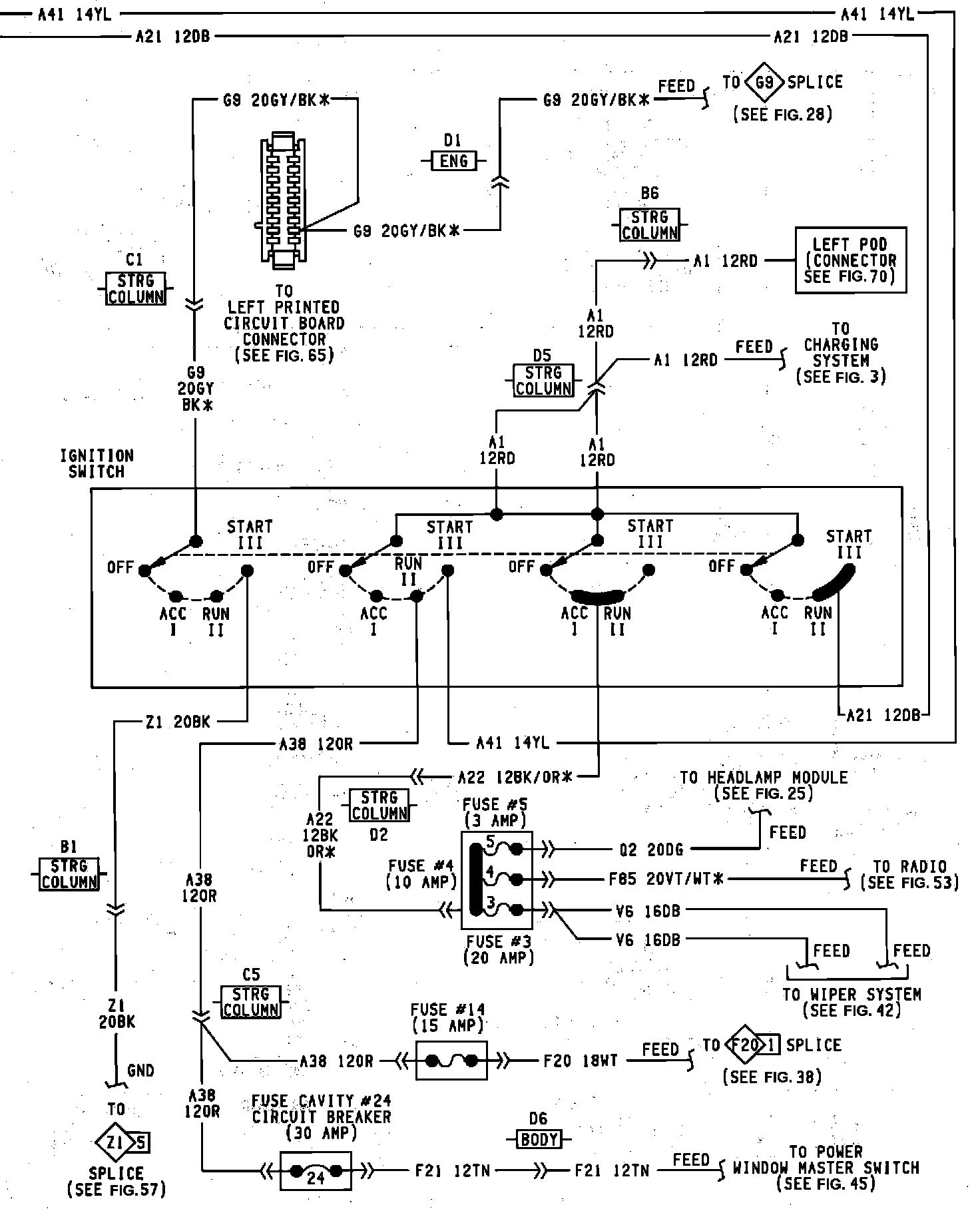

Ignition Switch:
