Operation CHARM
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1992
>>
Premier V6-182 3.0L SOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

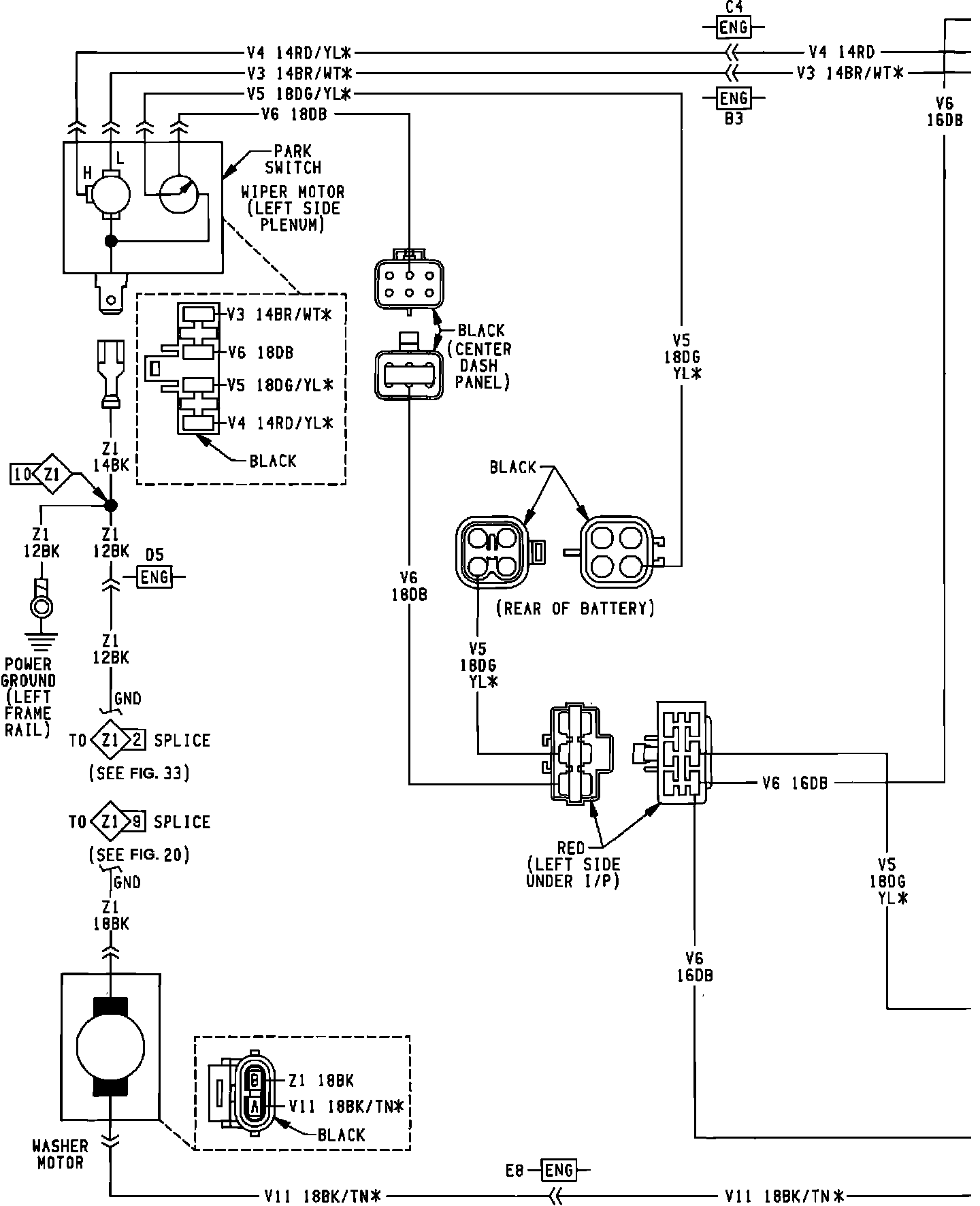

Wiper System:
Wiper System:
