Electrical Diagrams

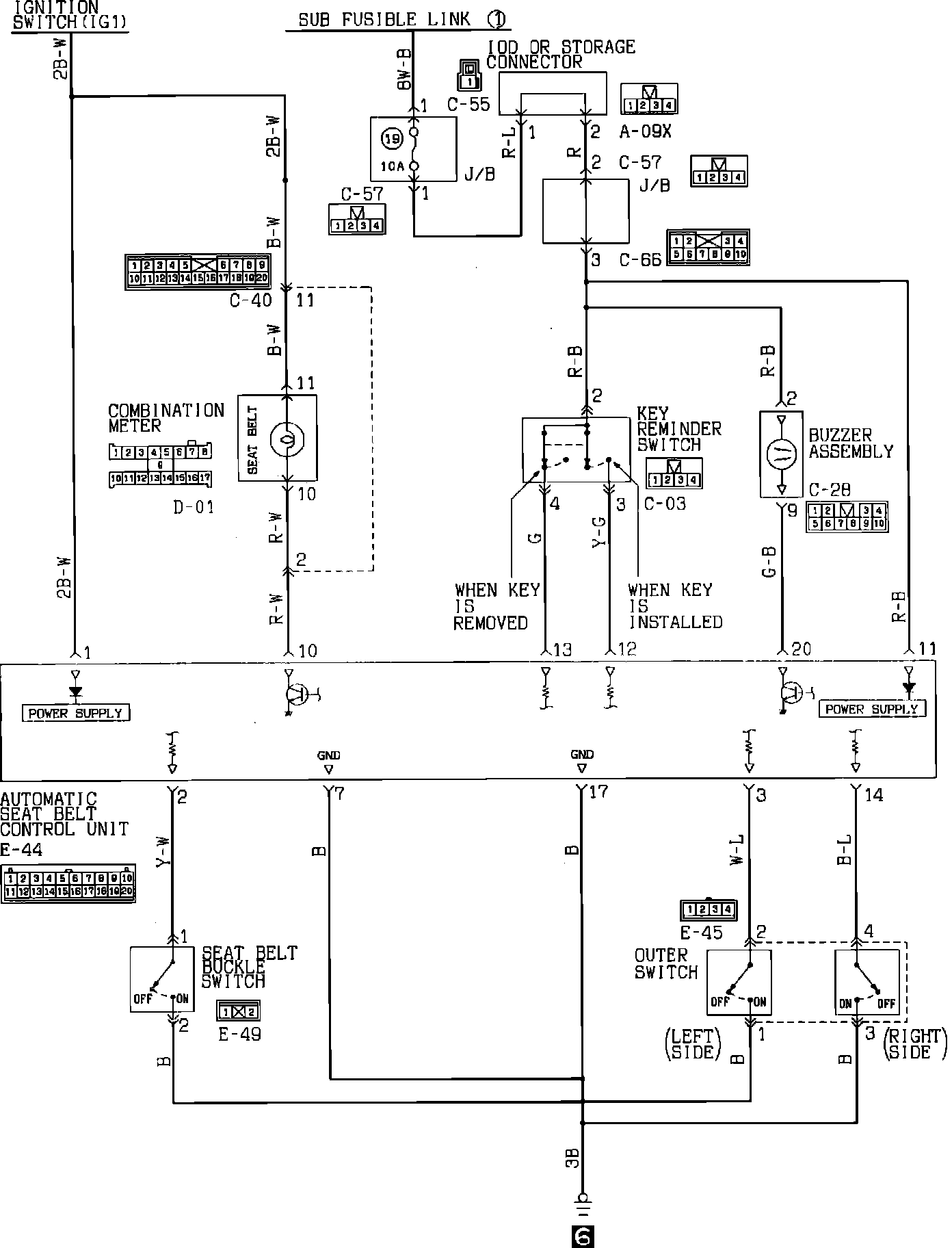

Automatic Seatbelt Circuit (part 1 Of 2):



Automatic Seatbelt Circuit (part 1 Of 2):

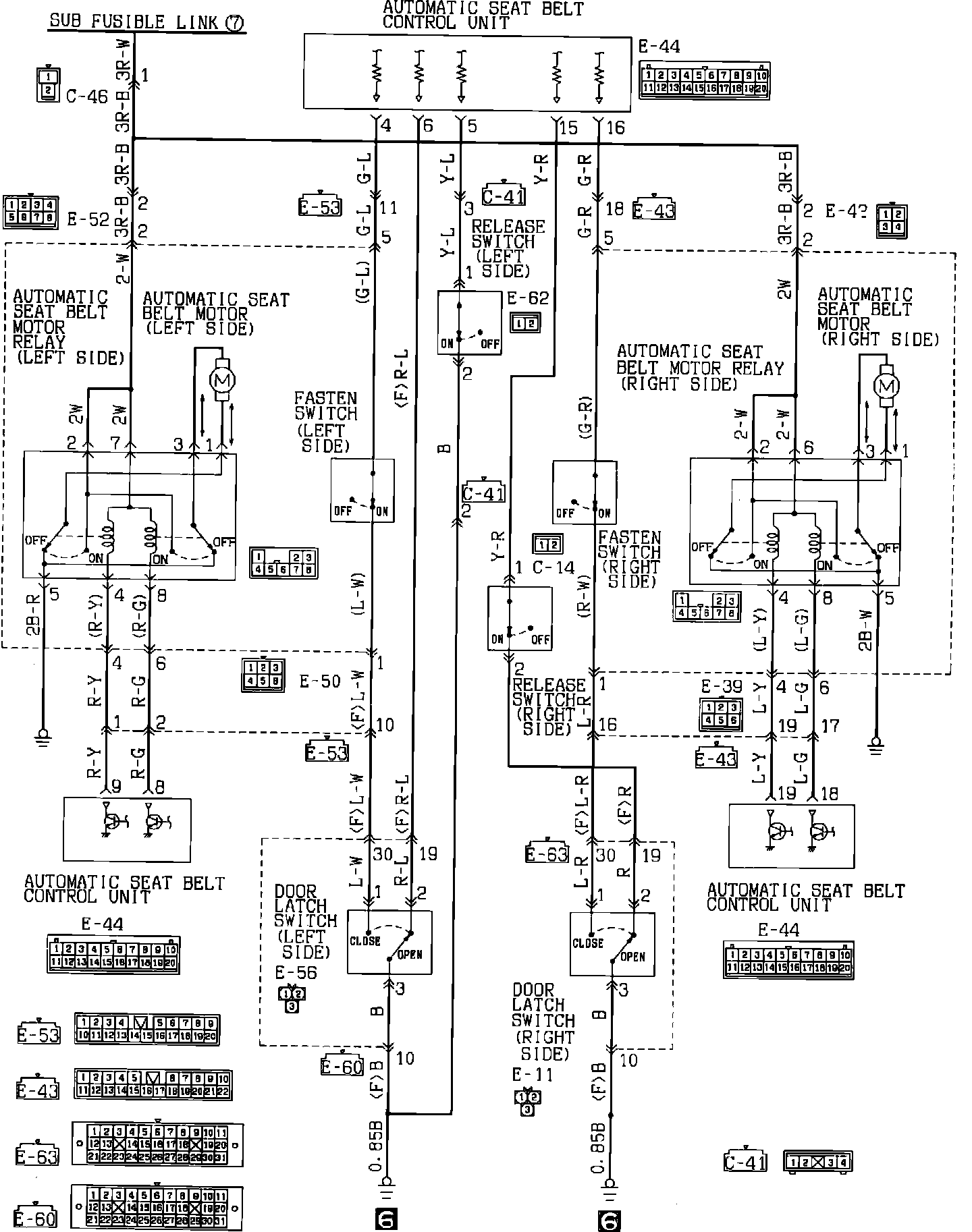

Automatic Seat Belt:



Automatic Seat Belt:
