A Connectors - Engine Compartment Harness

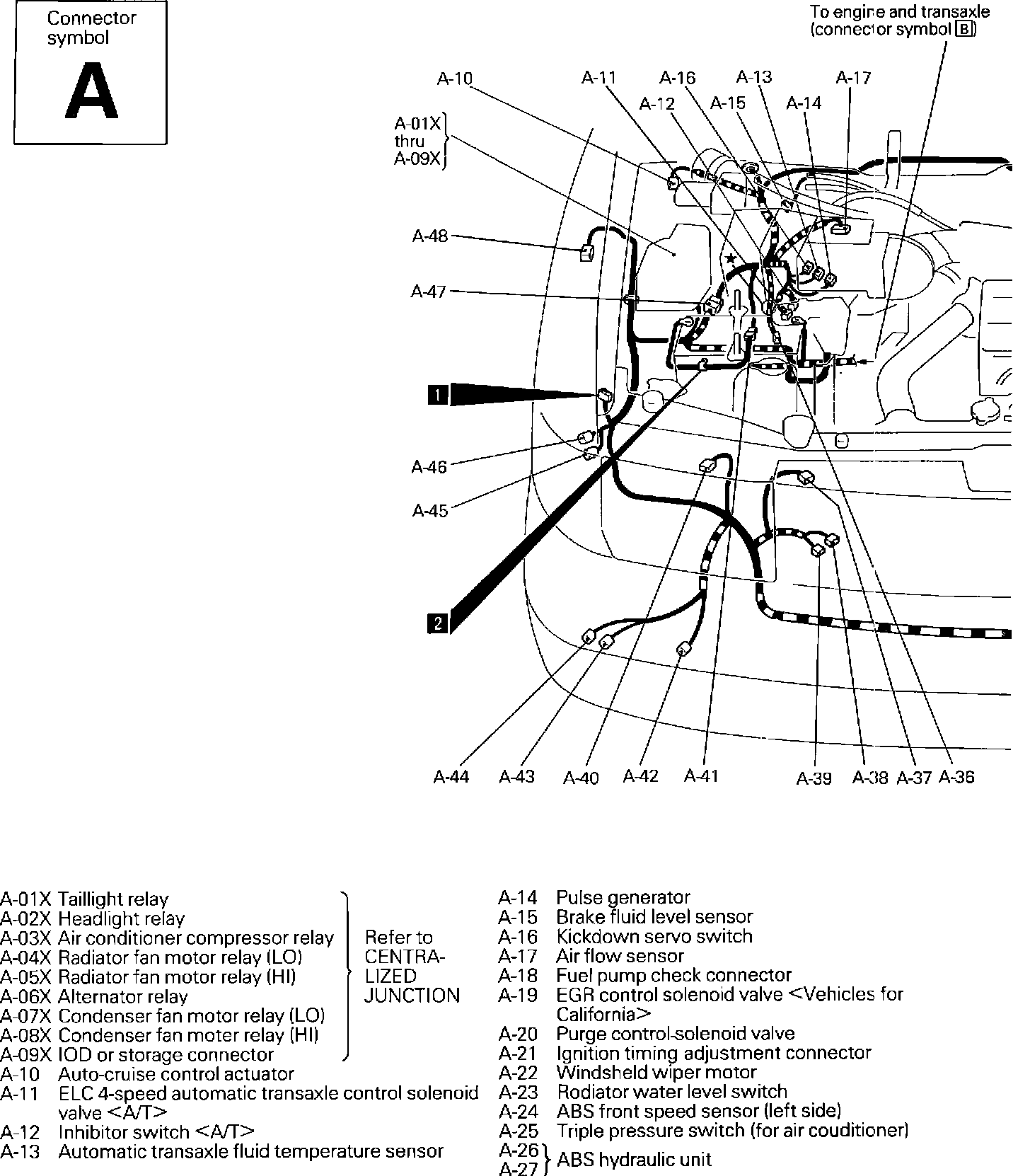

Connector Views (Engine Compartment):



Connector Views (Engine Compartment):
