F Connectors - Rear Under Floor Harness
F Connectors - Rear Under Floor Harness

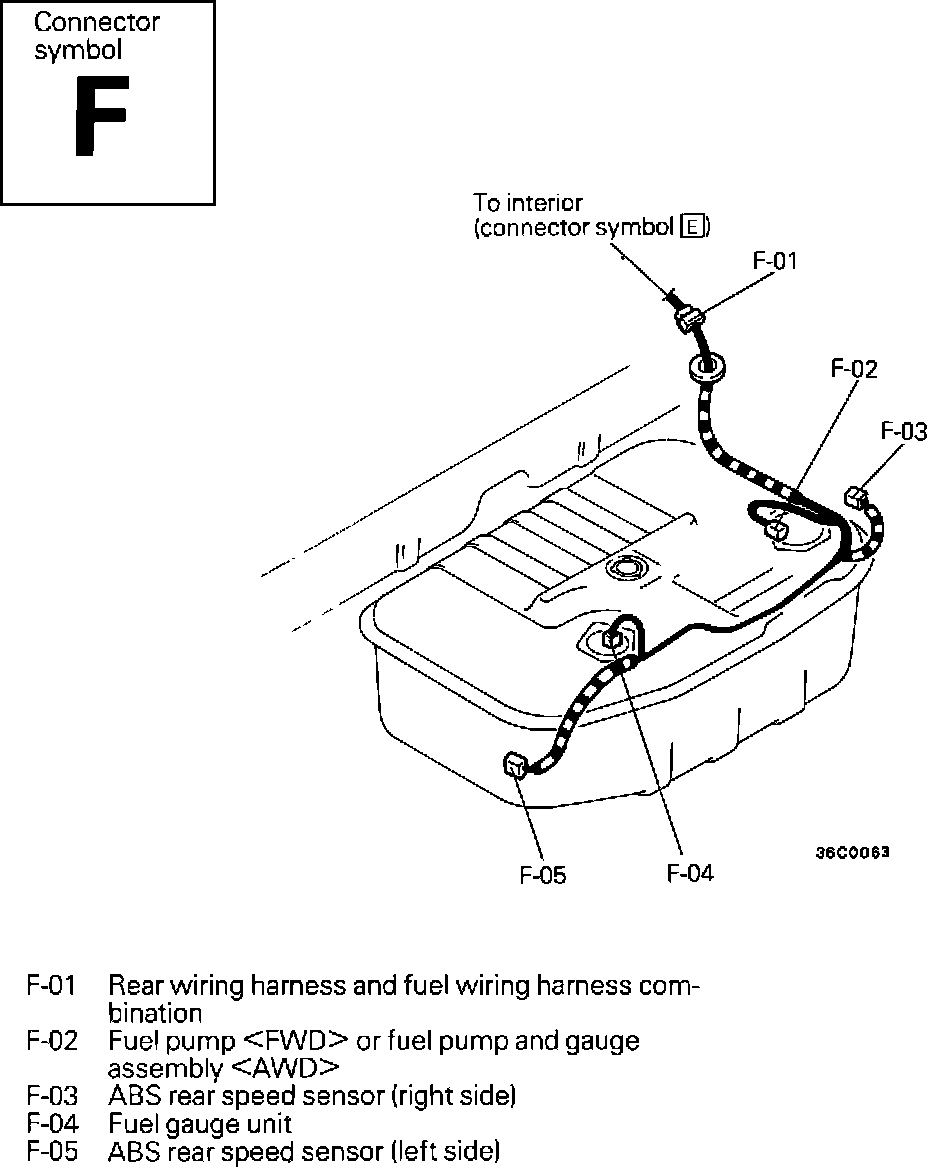

Connector Views (Rear Under Floor):
