Heating and Air Conditioning

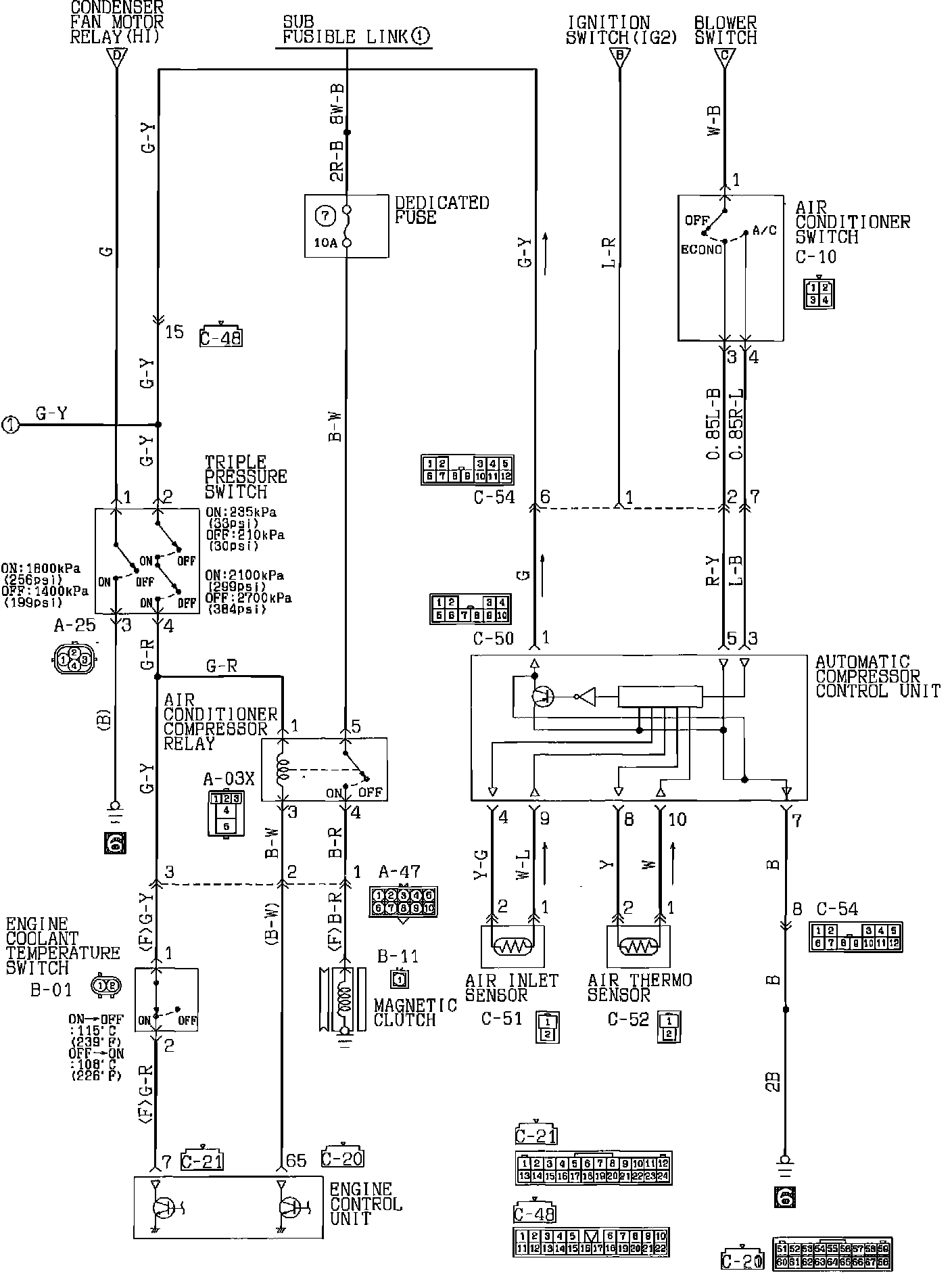

Air Conditioner And Heater:



Air Conditioner And Heater:



Air Conditioner And Heater:
