Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram

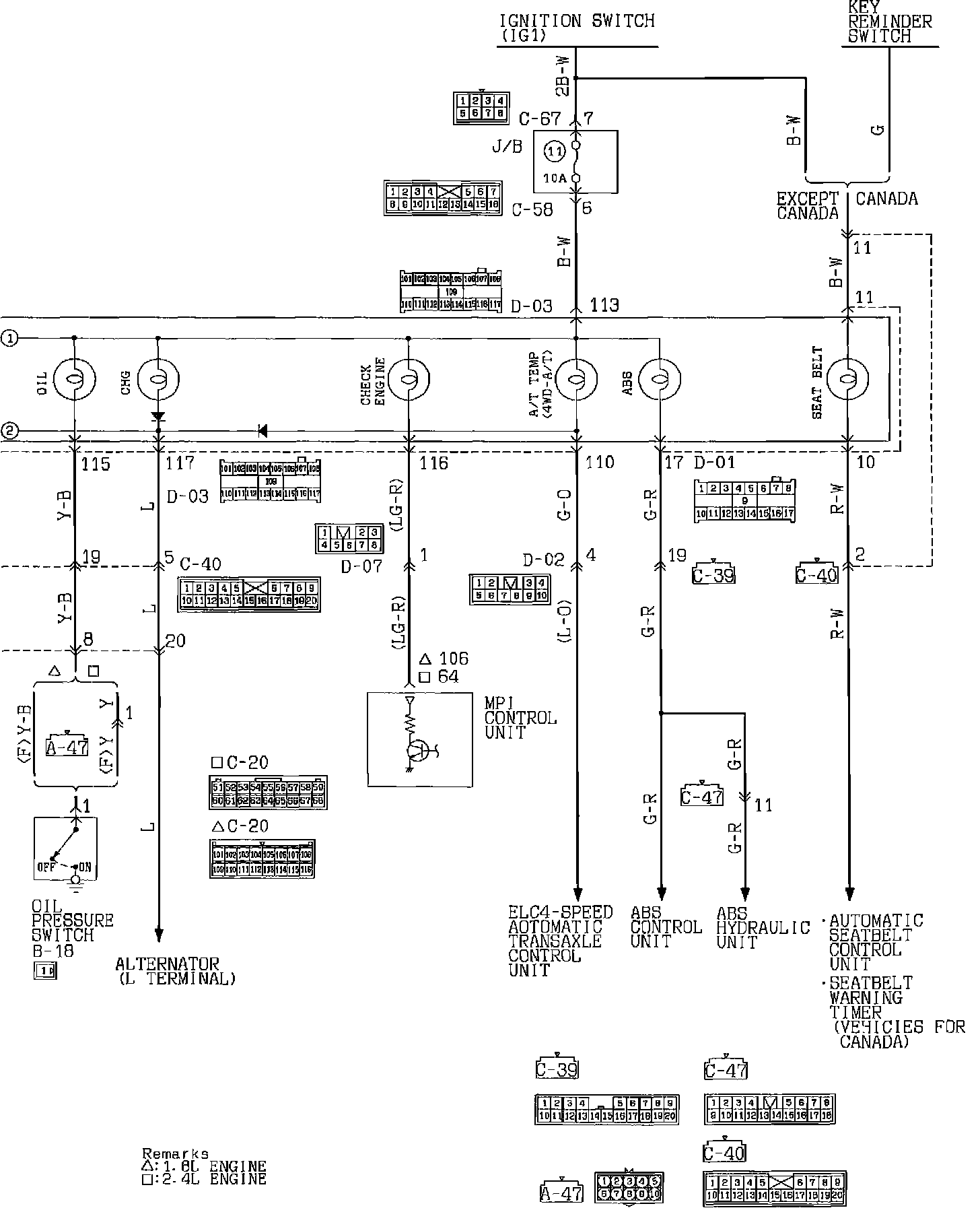

Instrument Panel (Warning Indicators):

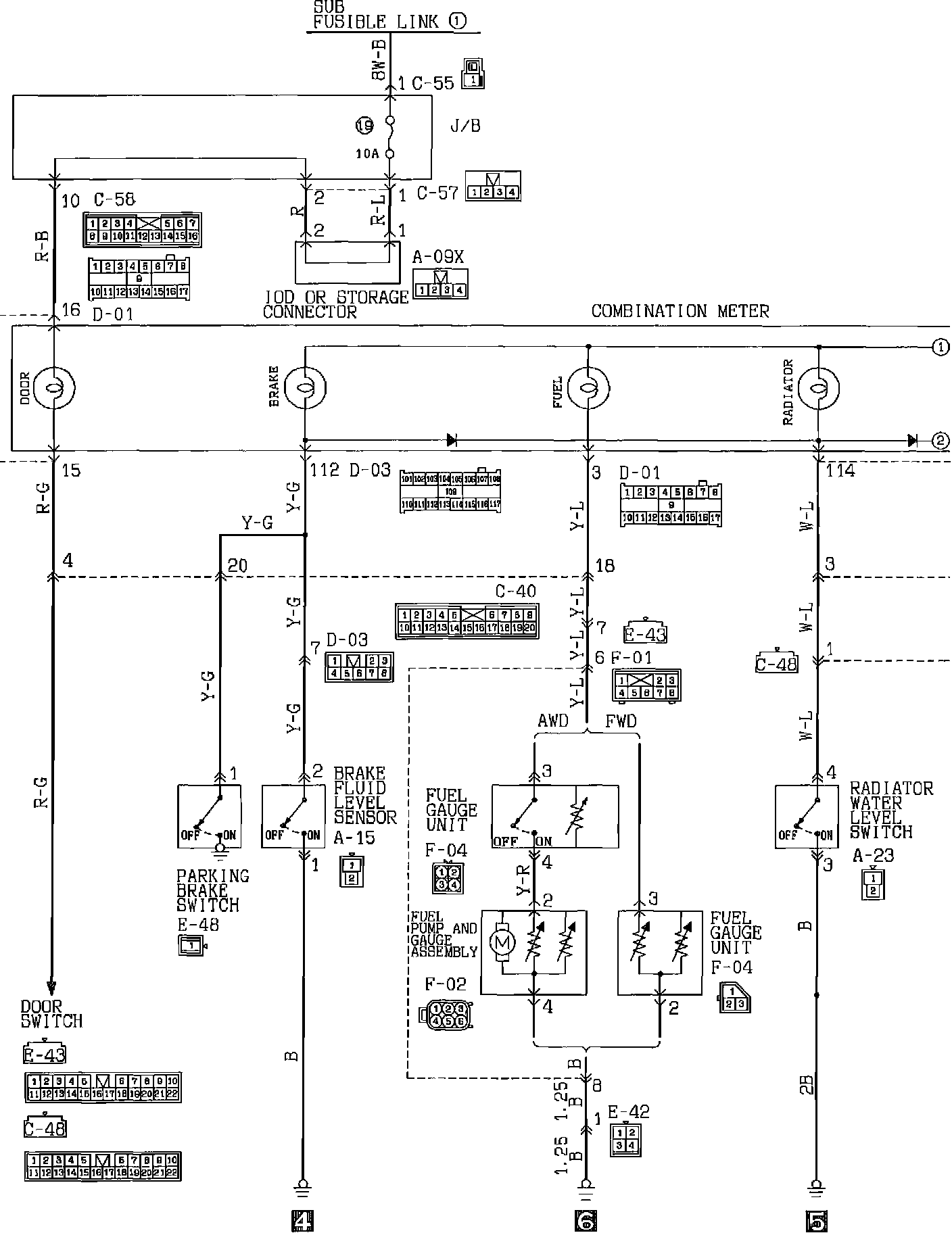

Instrument Panel (Warning Indicators):
