System Diagram

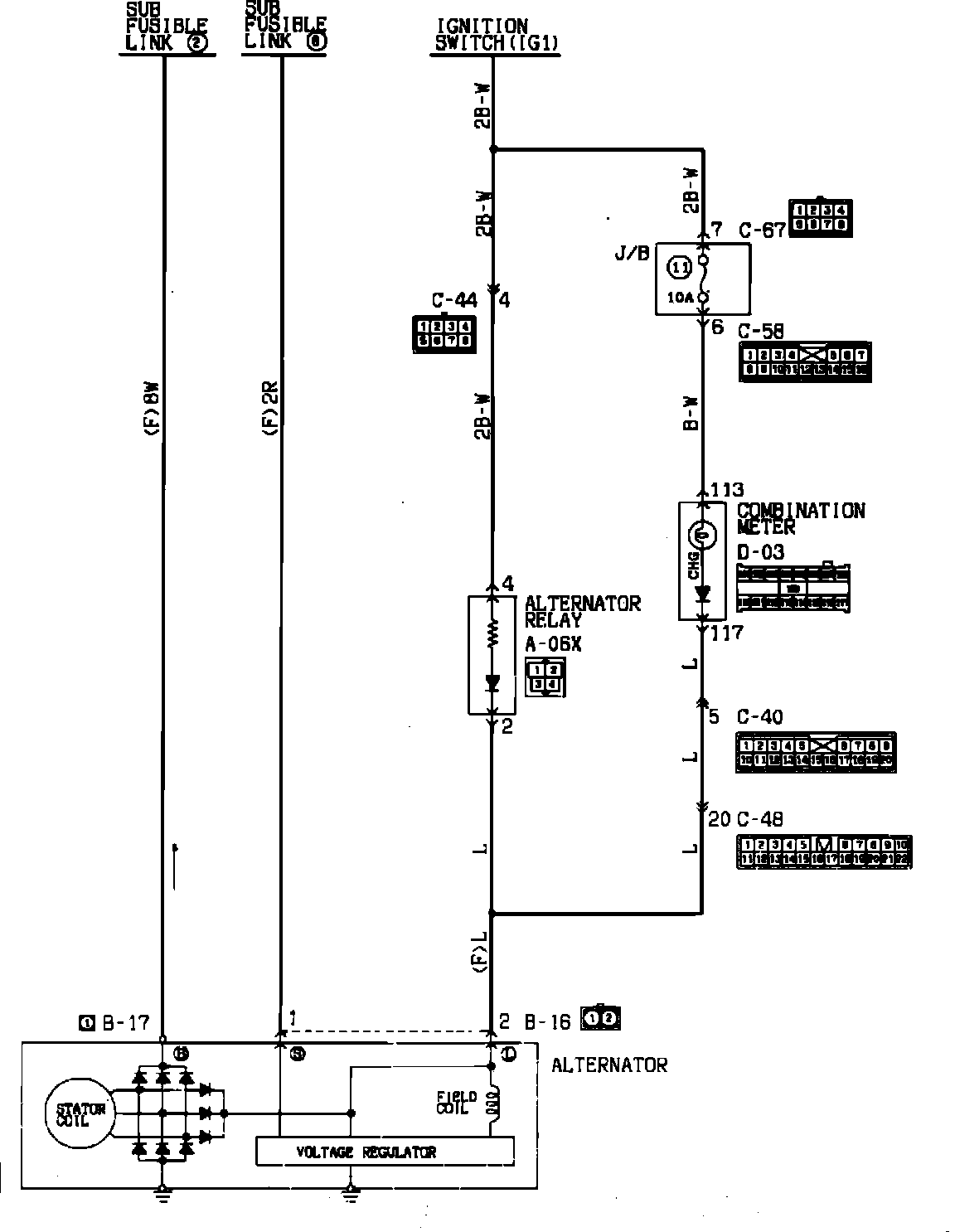

Charging System Wiring Diagram:



Power Distribution:



Power Distribution:



Charging System:
