Operation CHARM
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1992
>>
Summit Vista AWD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Fuse and Fusible Links
>>
Multi-Purpose Fuse Block
Multi-Purpose Fuse Block

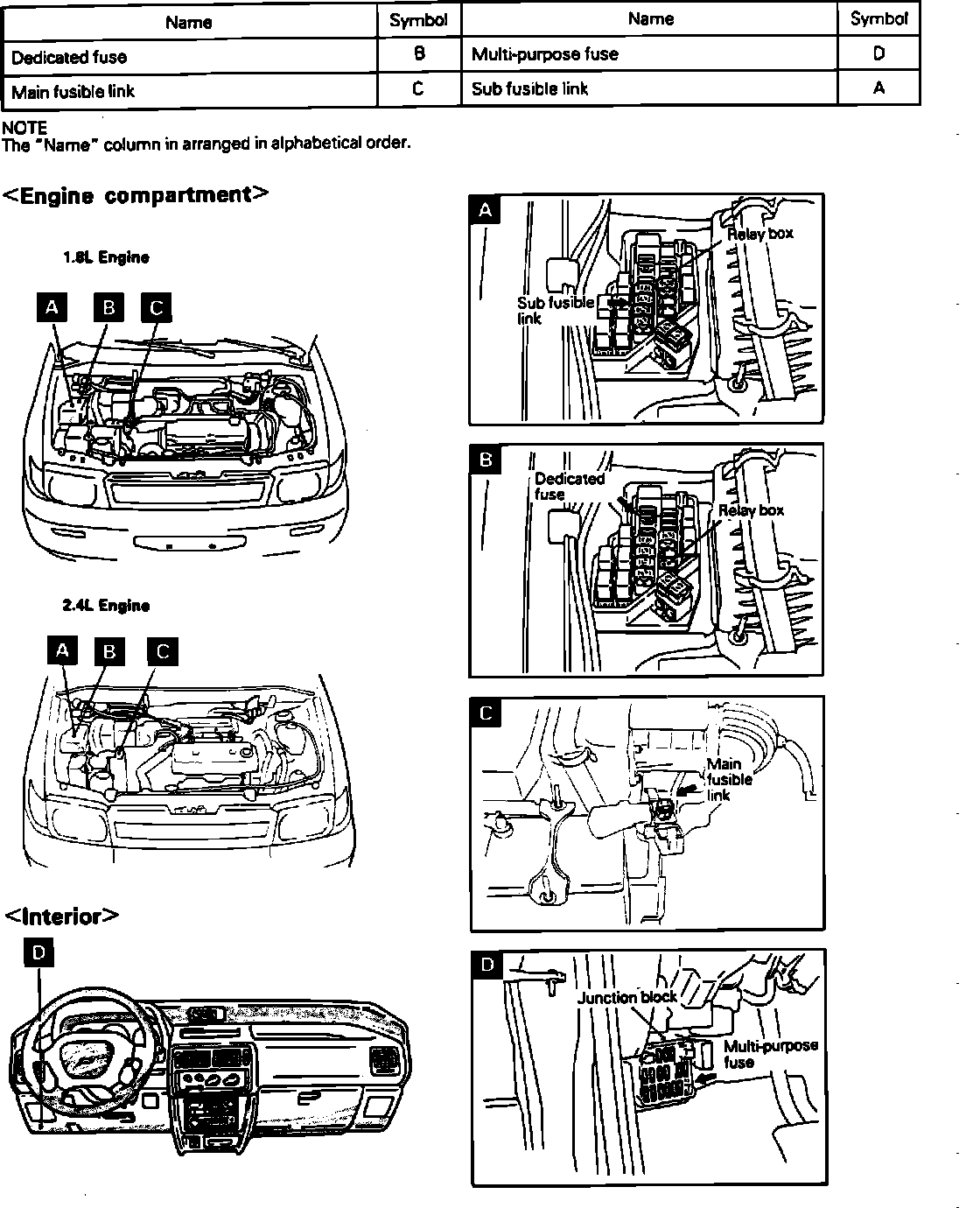

Fusible Link & Fuse Location.:
Under LH Side Of I/P
Applicable to: 1992 Colt Vista & Summit Wagon
