Heating and Air Conditioning: Locations

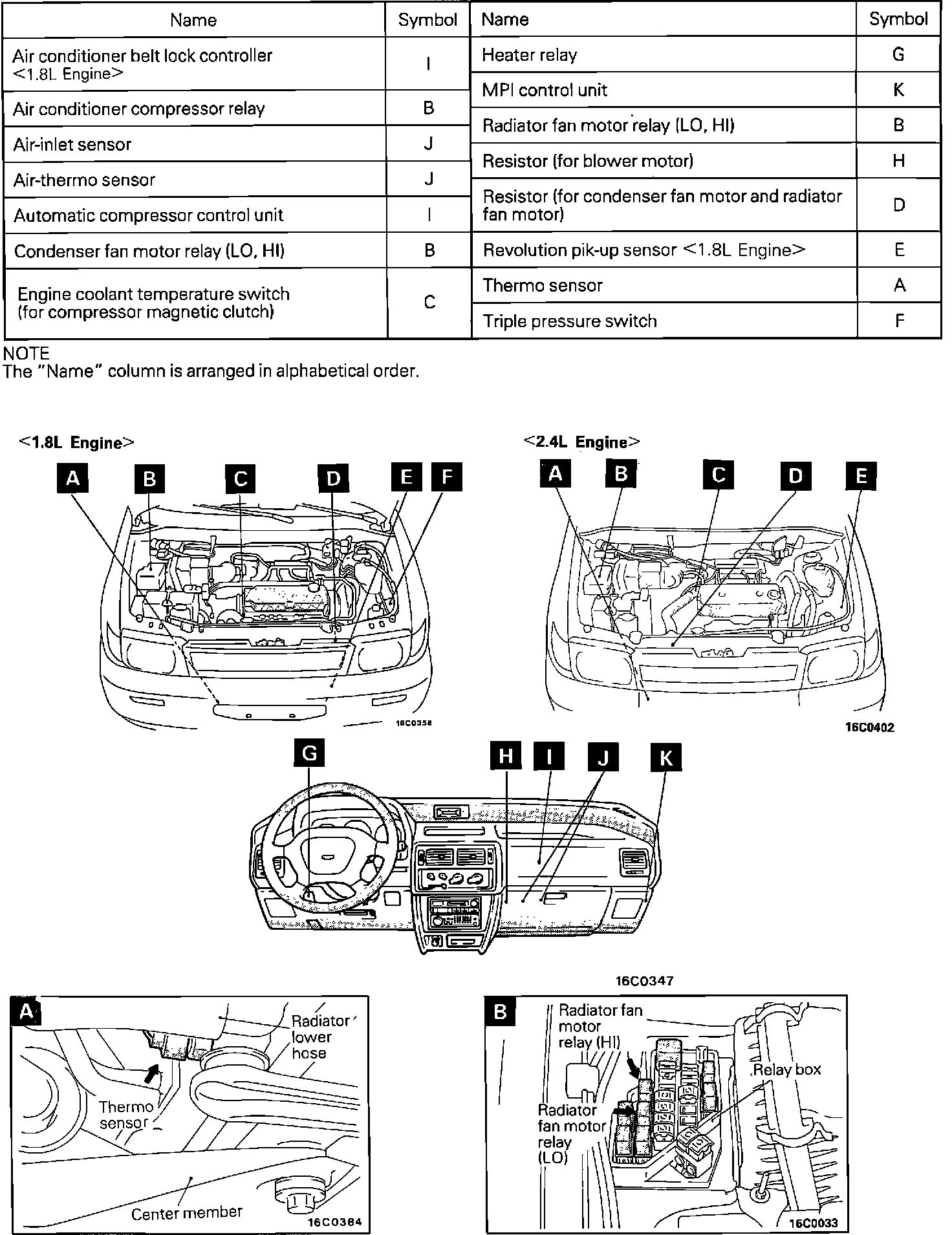

Component/Relay/Switch Locations (Air Conditioner And Heater):

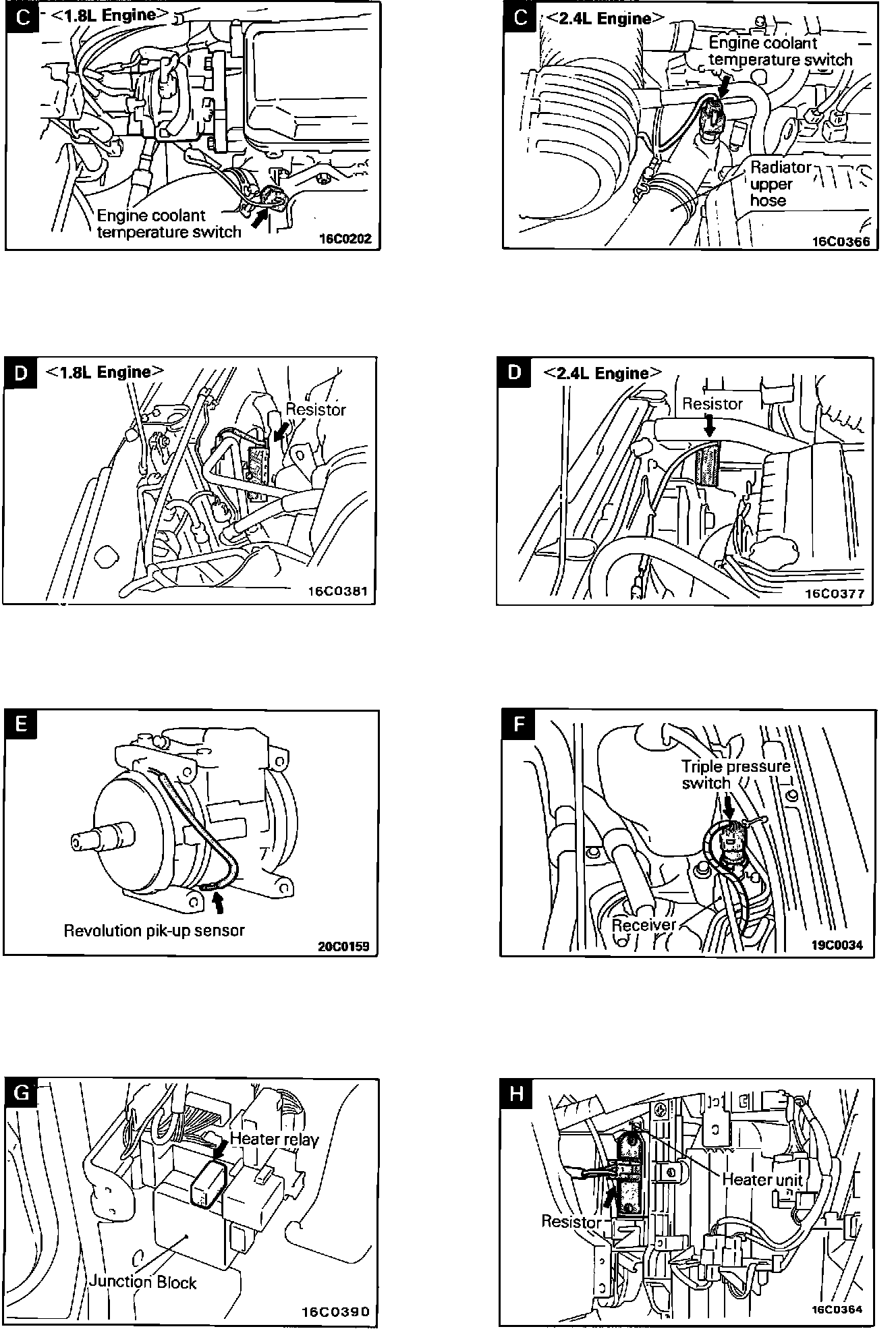

Component/Relay/Switch Locations (Air Conditioner And Heater):



Component/Relay/Switch Locations (Air Conditioner And Heater):
