Transmission Control Systems: Locations

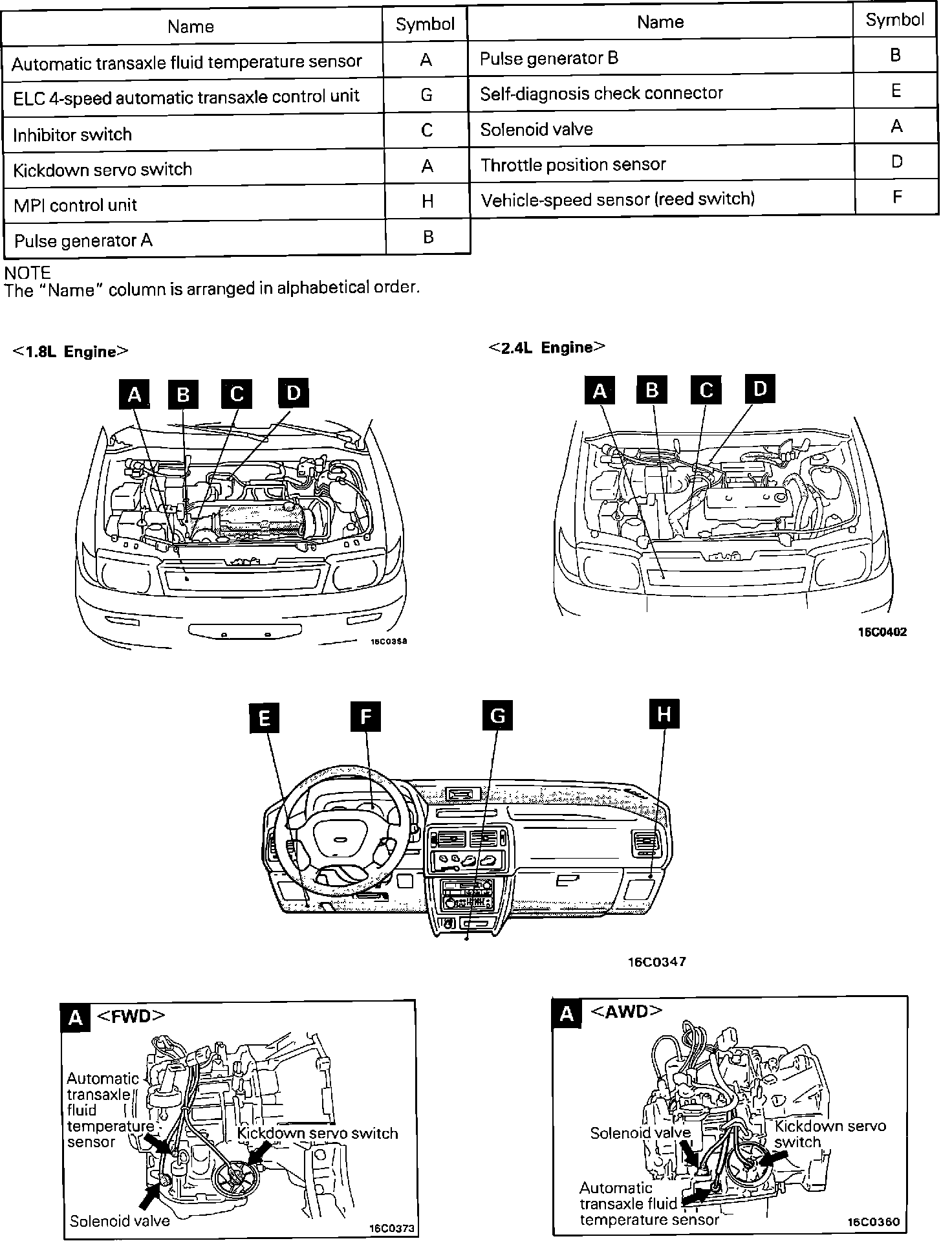

Component/Relay/Switch Locations (Automatic Transaxle (4-Speed):



Component/Relay/Switch Locations (Automatic Transaxle (4-Speed):
