Power Door Lock Control Module: Locations

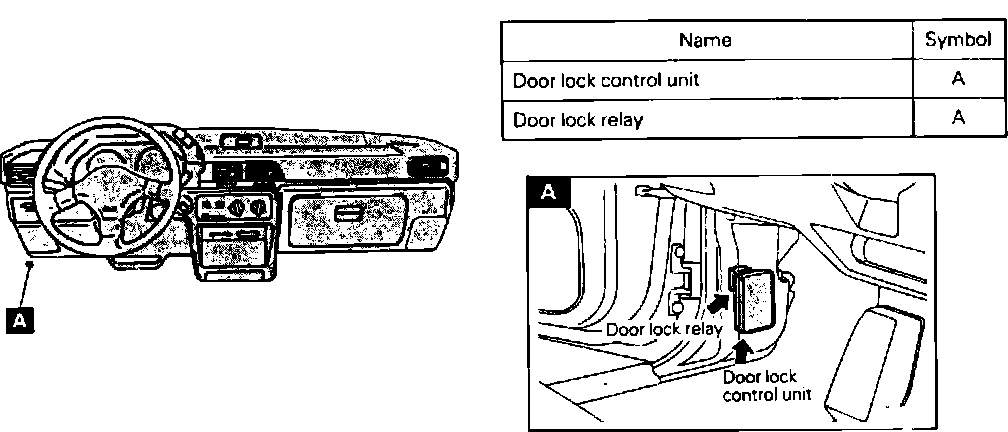

Door Lock Control Unit Location.:




Below LH Side Of I/P

Applicable to: Colt & Summit
