Rear

Operation Of Wiper Motor
1. Disconnect wiper motor connector, the connect a battery to wiper motor as shown.

Fig. 31 Wiper Motor Testing:

2. Ensure motor operates properly, replace motor if necessary.
Operation Of Wiper Motor At Stop Position
1. Run rear wiper motor, disconnect battery and stop motor.
2. Reconnect battery as shown, ensure after motor starts turning, it stops at the automatic stop position.
Rear Wiper & Washer Switch
Remove cluster switch, then check continuity between terminal for each switch as shown. If not as specified, replace switch.

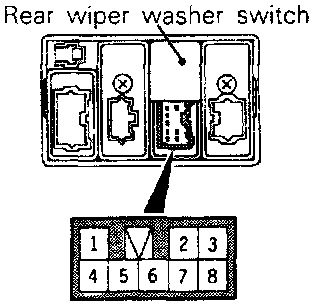

Rear Wiper Washer Switch:

Fig. 32b Rear Wiper Switch Continuity Check:

Rear Intermittent Wiper Relay
With rear wiper switch connected, ignition switch in ACC position, wiper switch in INT position, check voltage between terminal five and ground. Voltage should alternate from zero to system volts.
