Mitsubishi Wiring Diagrams

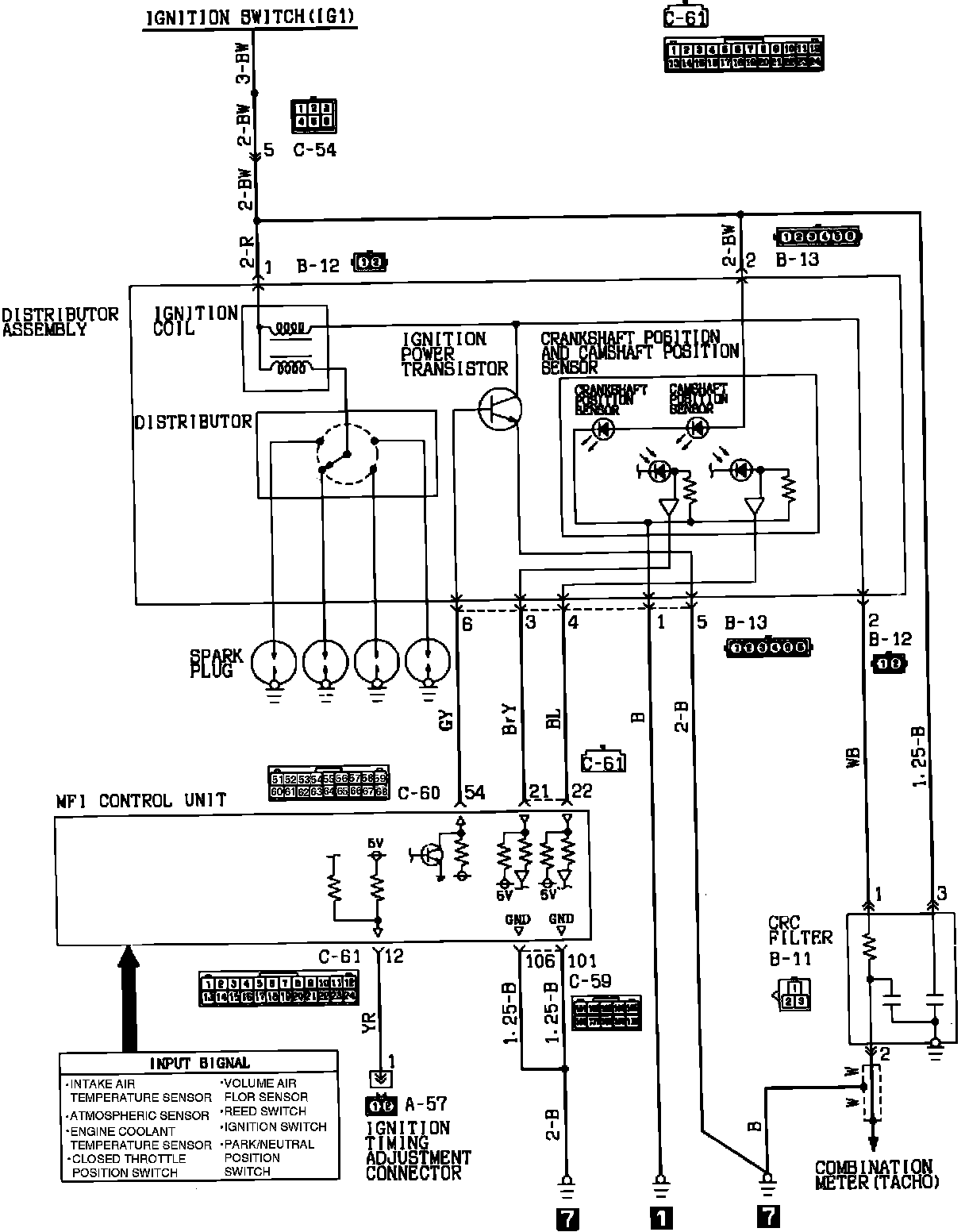

Ignition Circuit:






For additional wiring information refer to CHASSIS ELECTRICAL DIAGRAMS.
