With Automatic Transmission
Engine Management:
1 OF 5

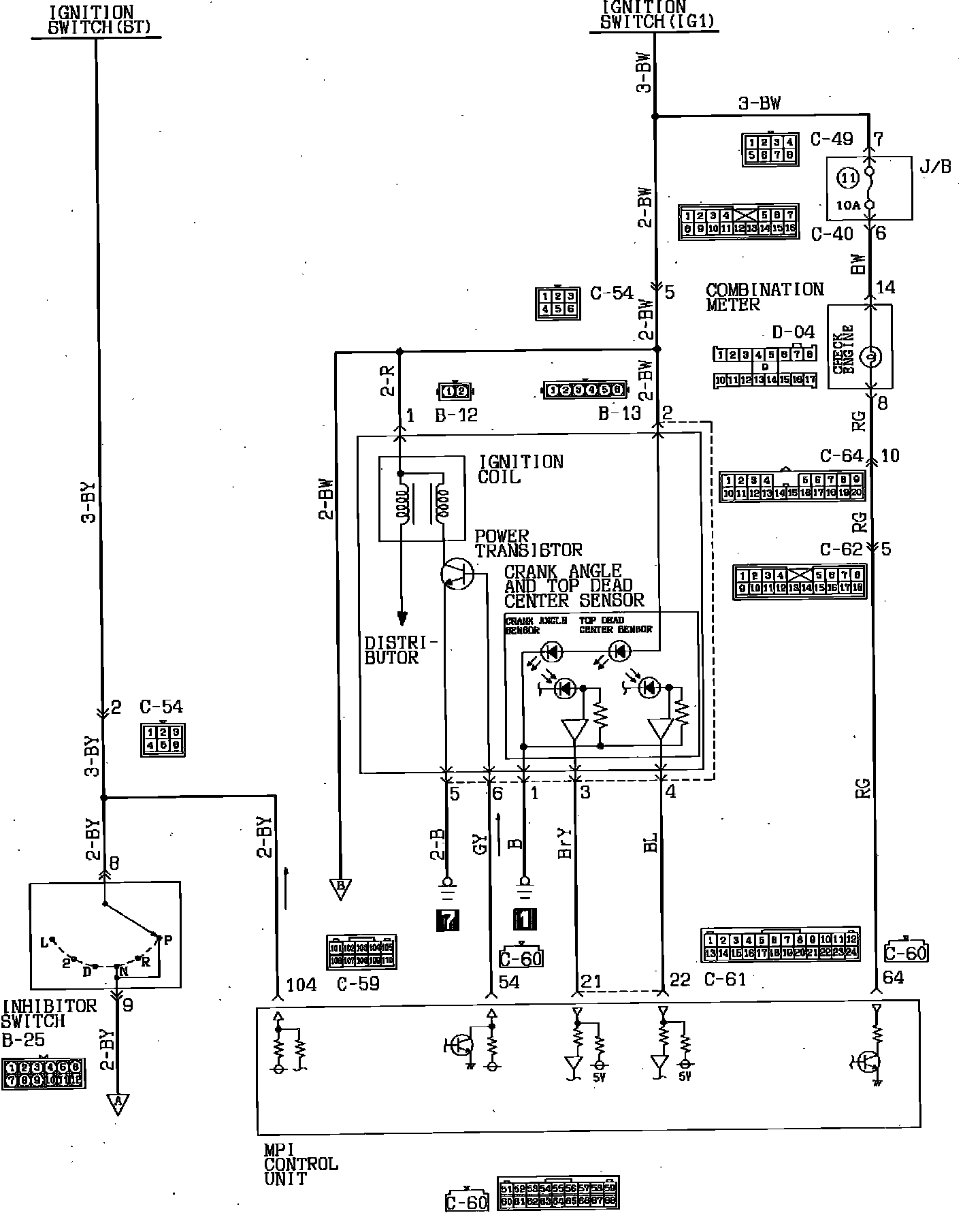

Engine Management:
2 OF 5

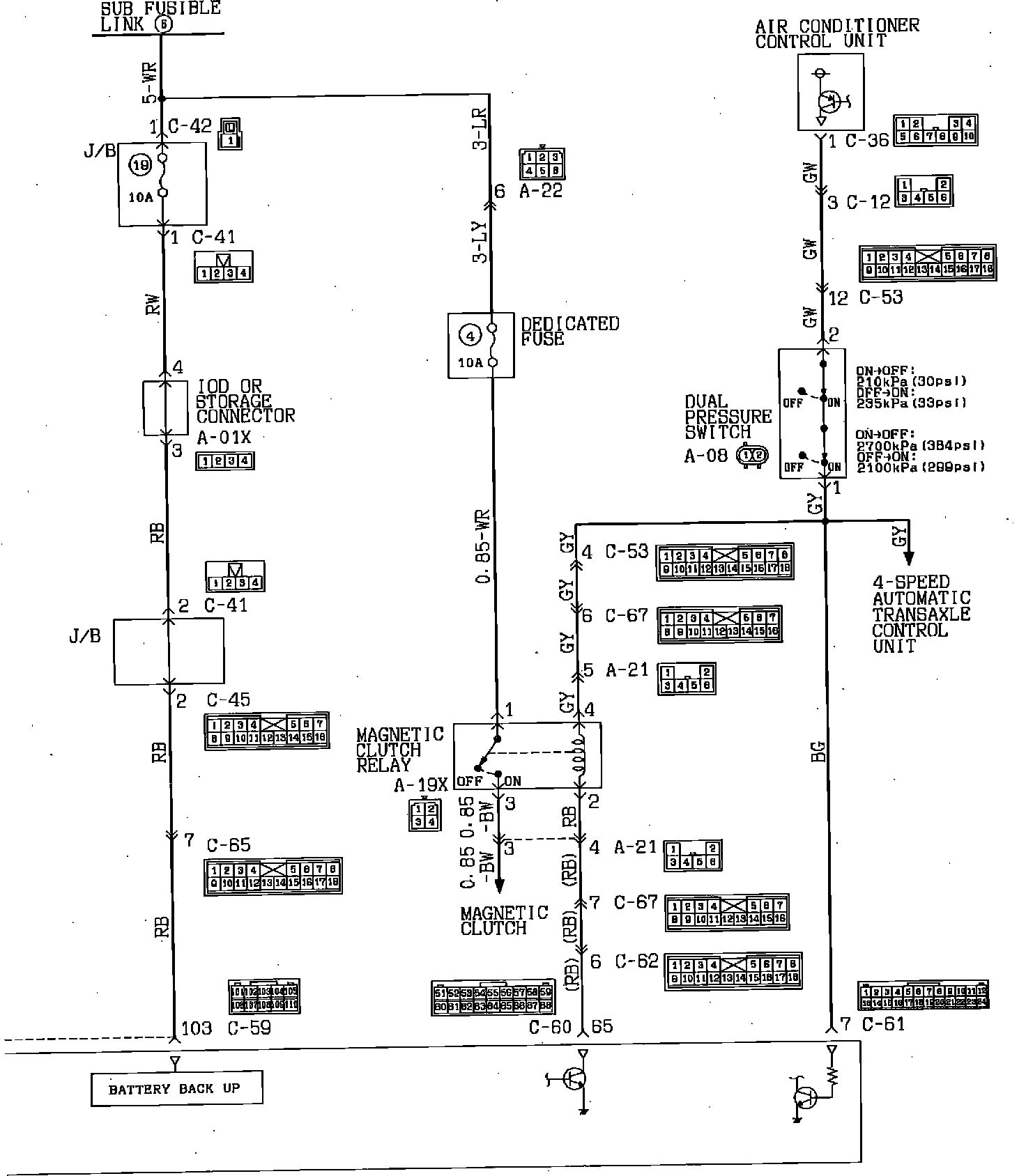

Engine Management:
3 OF 5

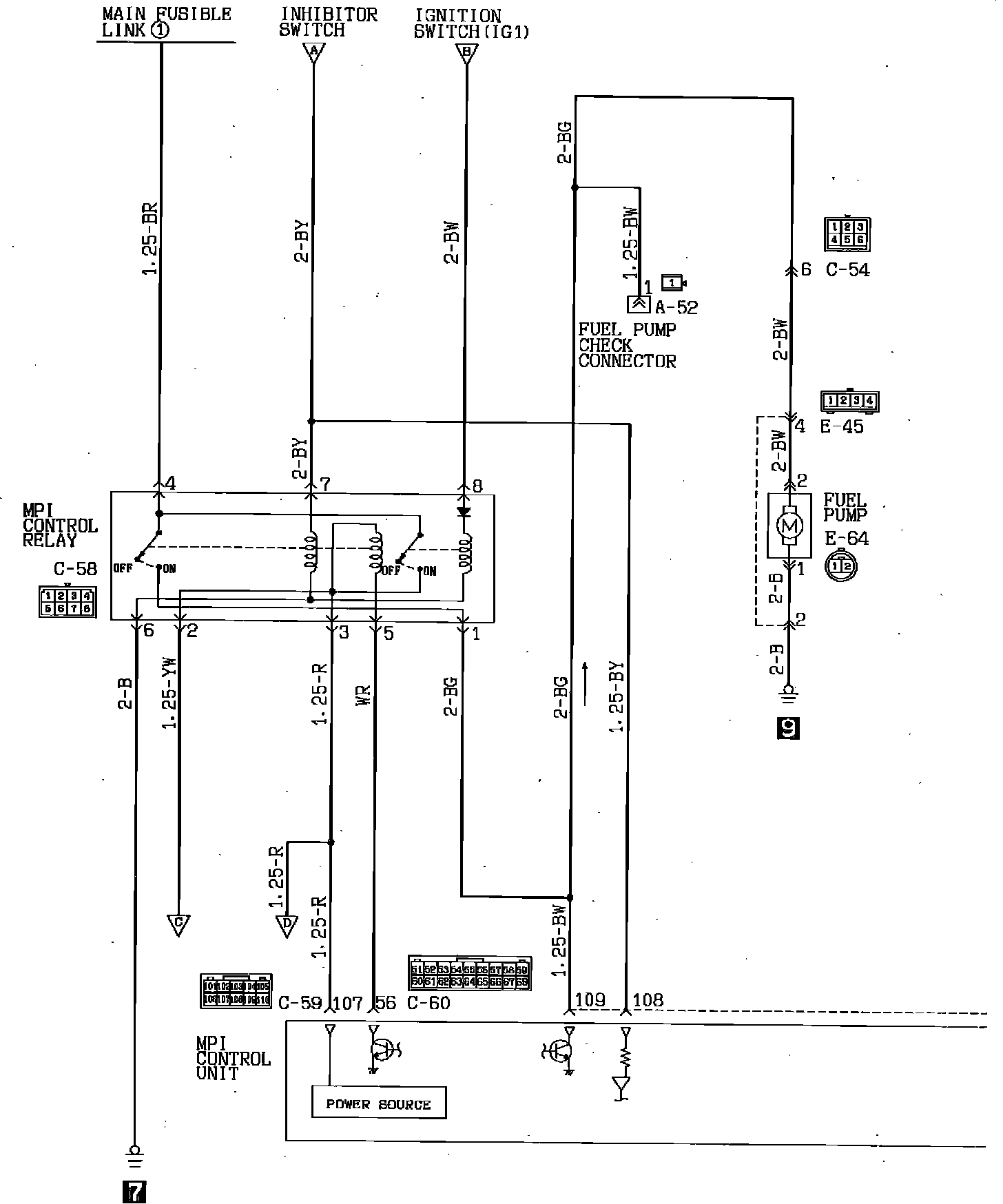

Engine Management:
4 OF 5

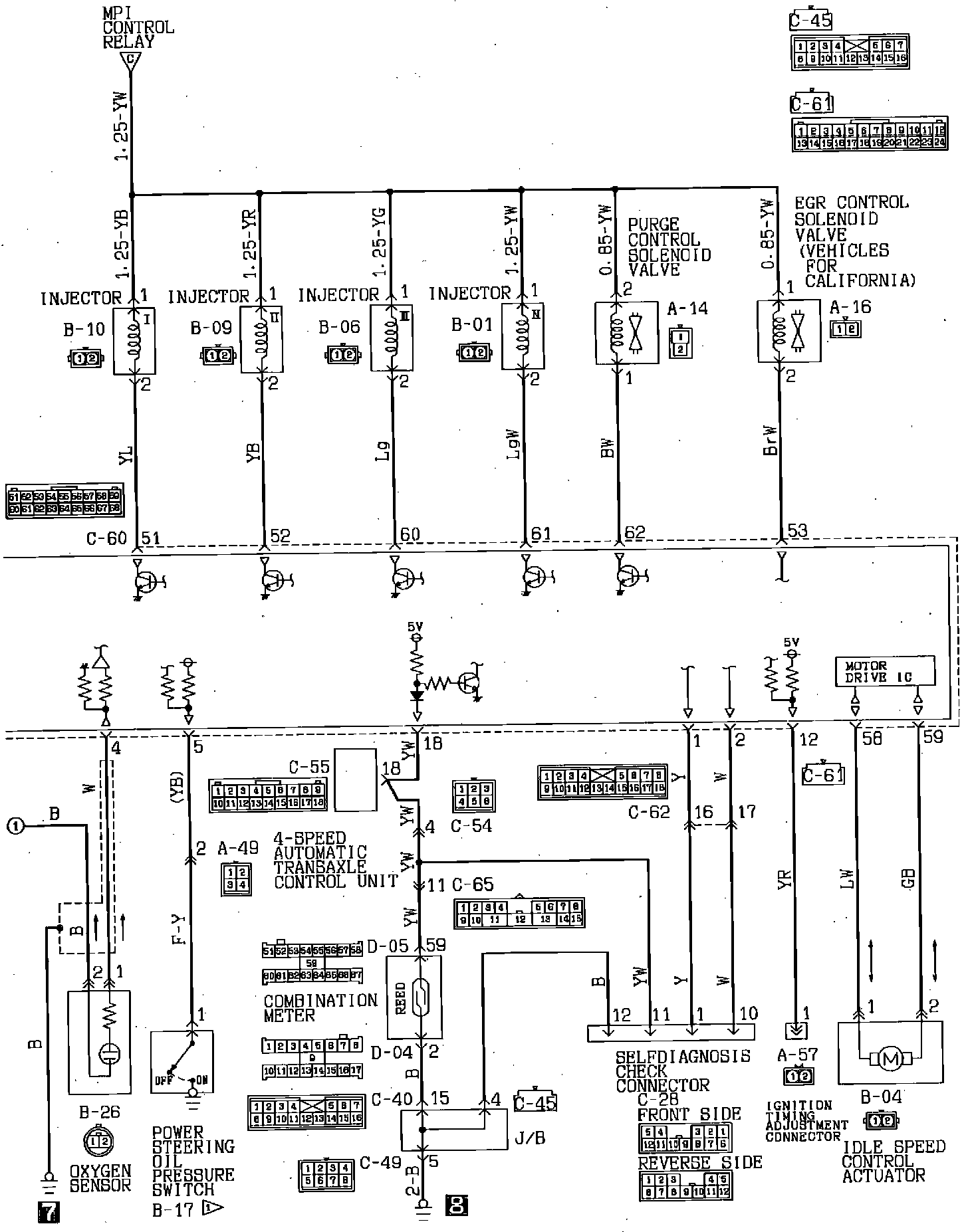

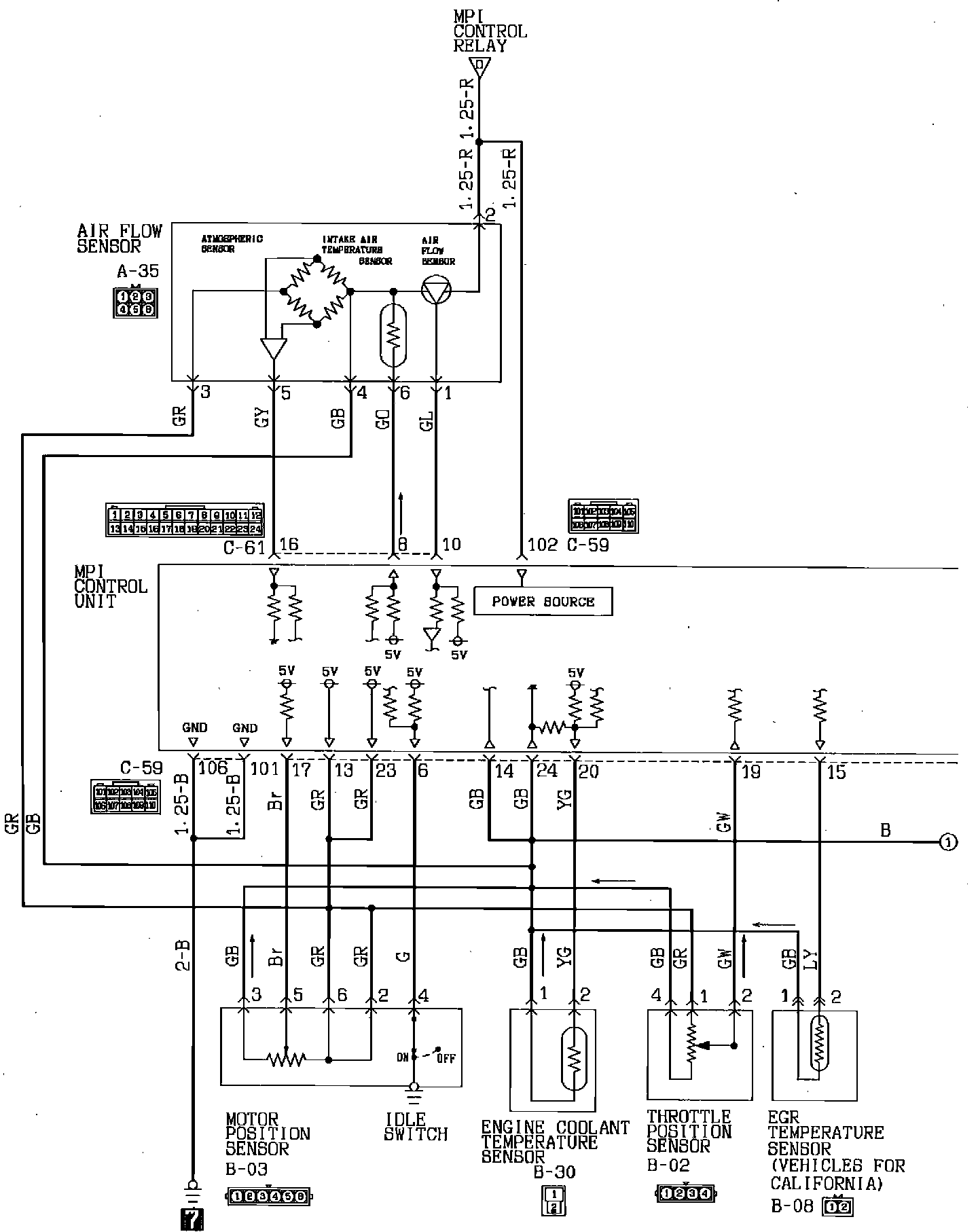

Engine Management:
5 OF 5
For further information, refer to CHASSIS ELECTRICAL DIAGRAMS.
1 OF 5
2 OF 5
3 OF 5
4 OF 5
5 OF 5
For further information, refer to CHASSIS ELECTRICAL DIAGRAMS.
