With Manual Transmission



Engine Management:

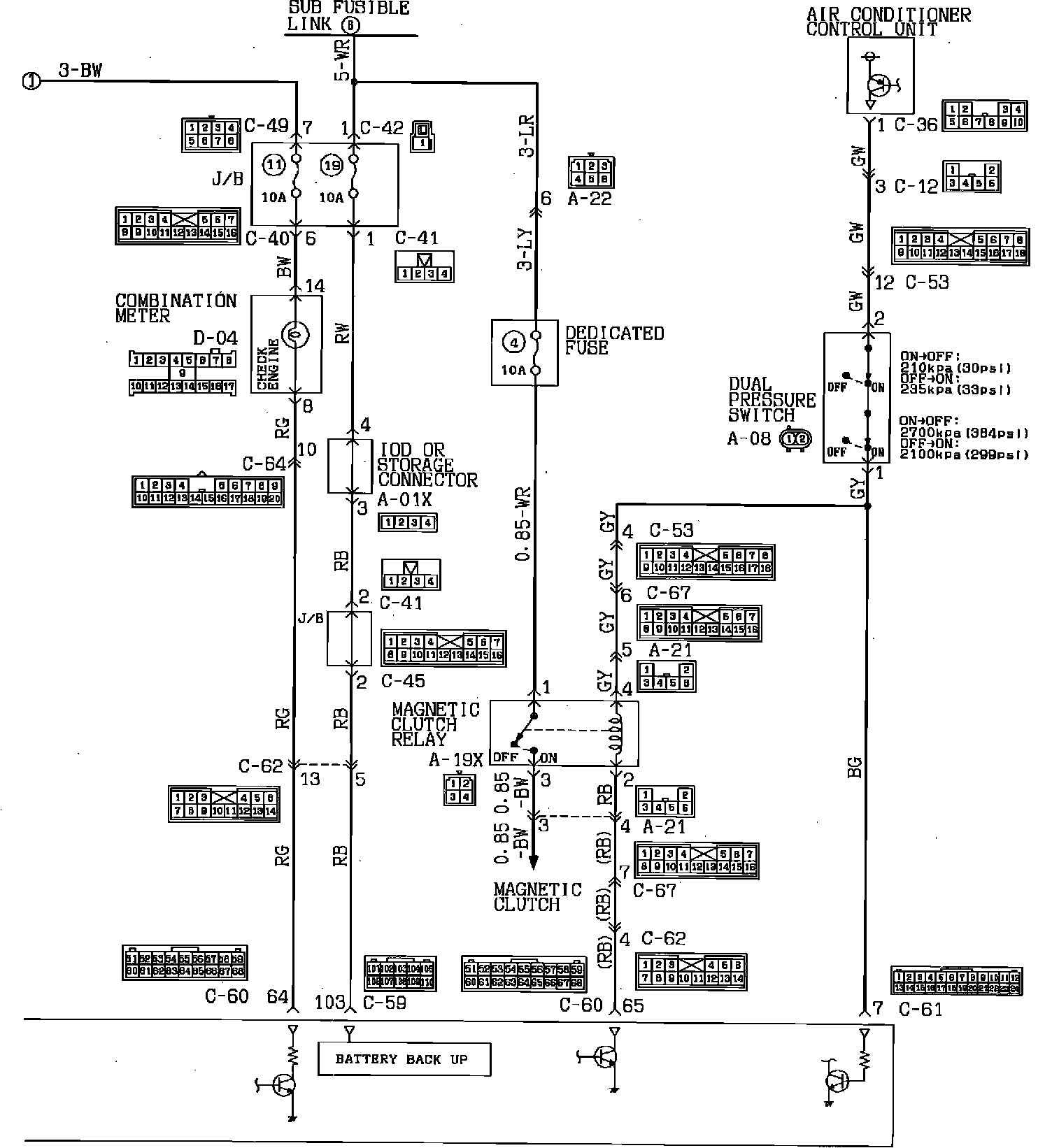

1 OF 4

Engine Management:

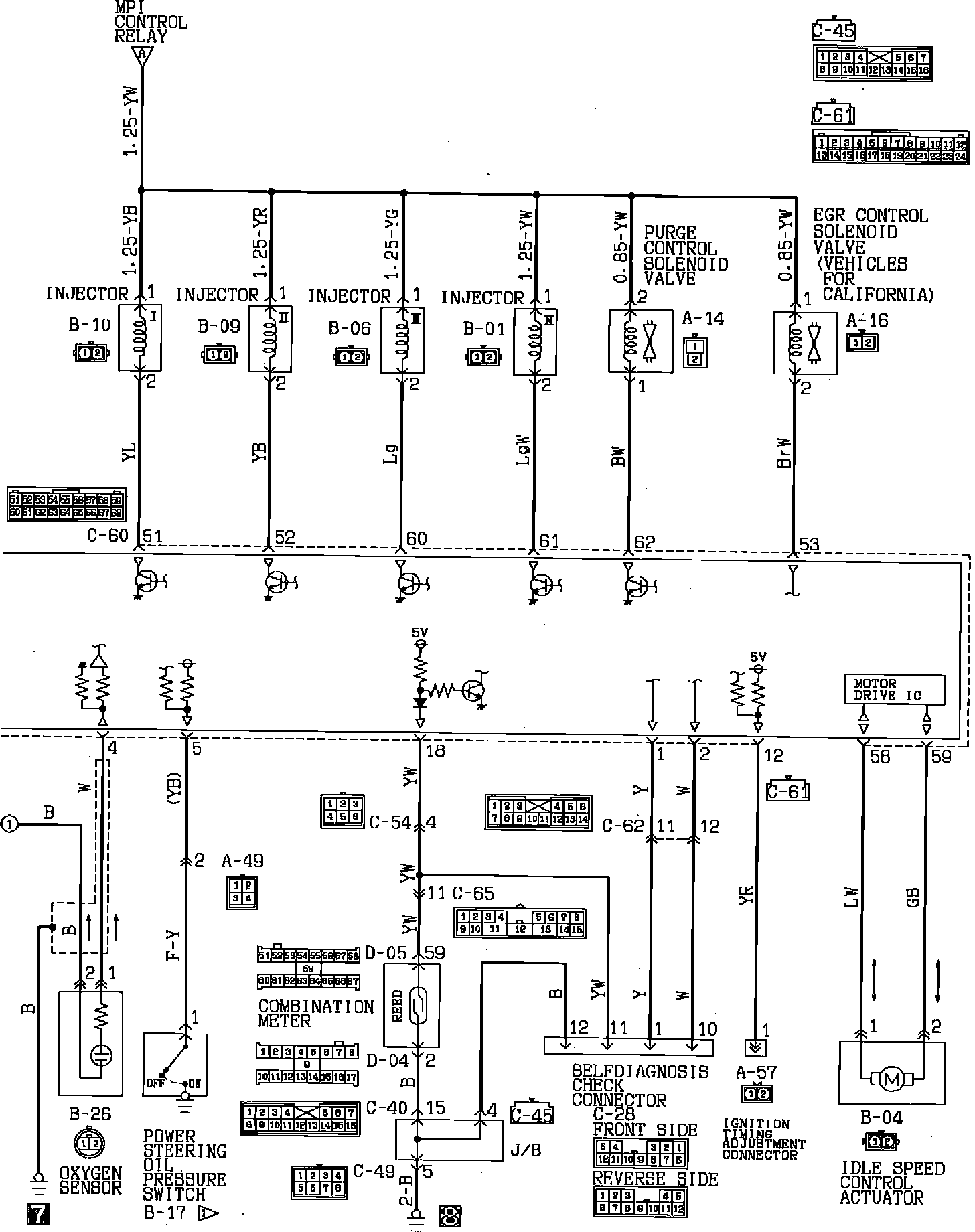

2 OF 4

Engine Management:

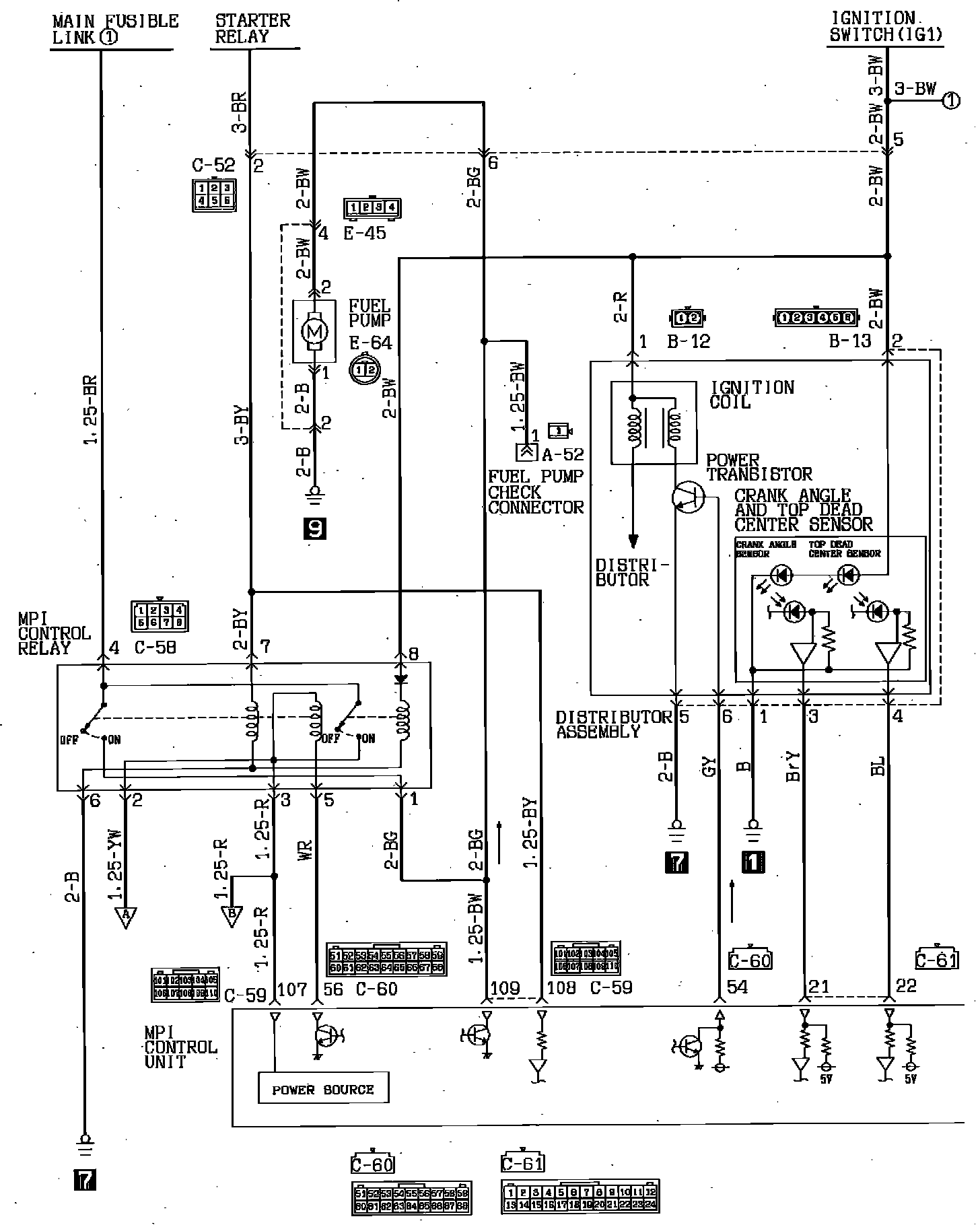

3 OF 4

Engine Management:




4 OF 4
