Home
>>
Eagle
>>
1992
>>
Talon FWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Trunk Lamp
Trunk Lamp

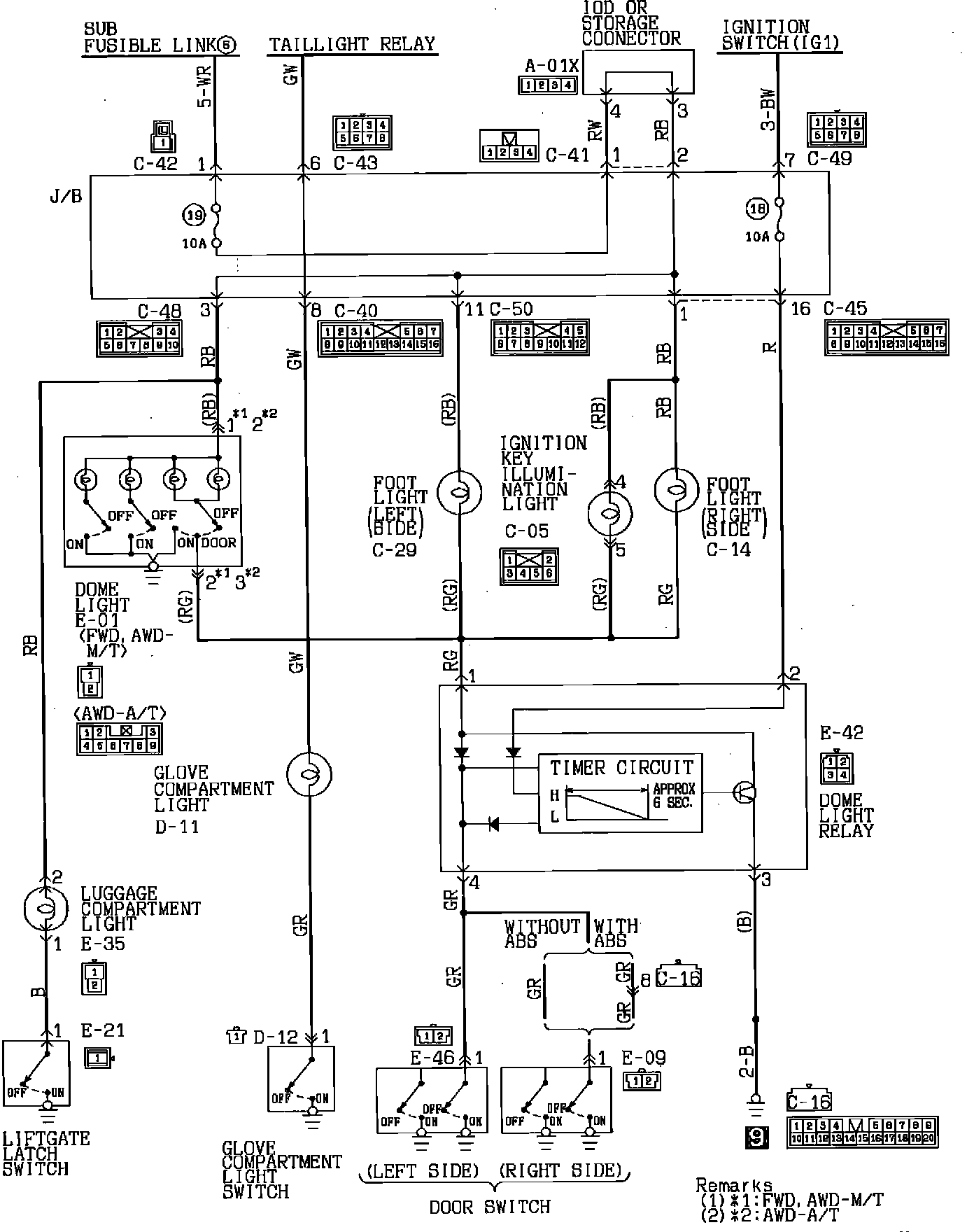

Dome, Ignition Key Illumination, Foot, Glove Compartment, And Luggage Compartment Lamps:
