Eagle
>>
1992
>>
Talon FWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Indicators
Indicators

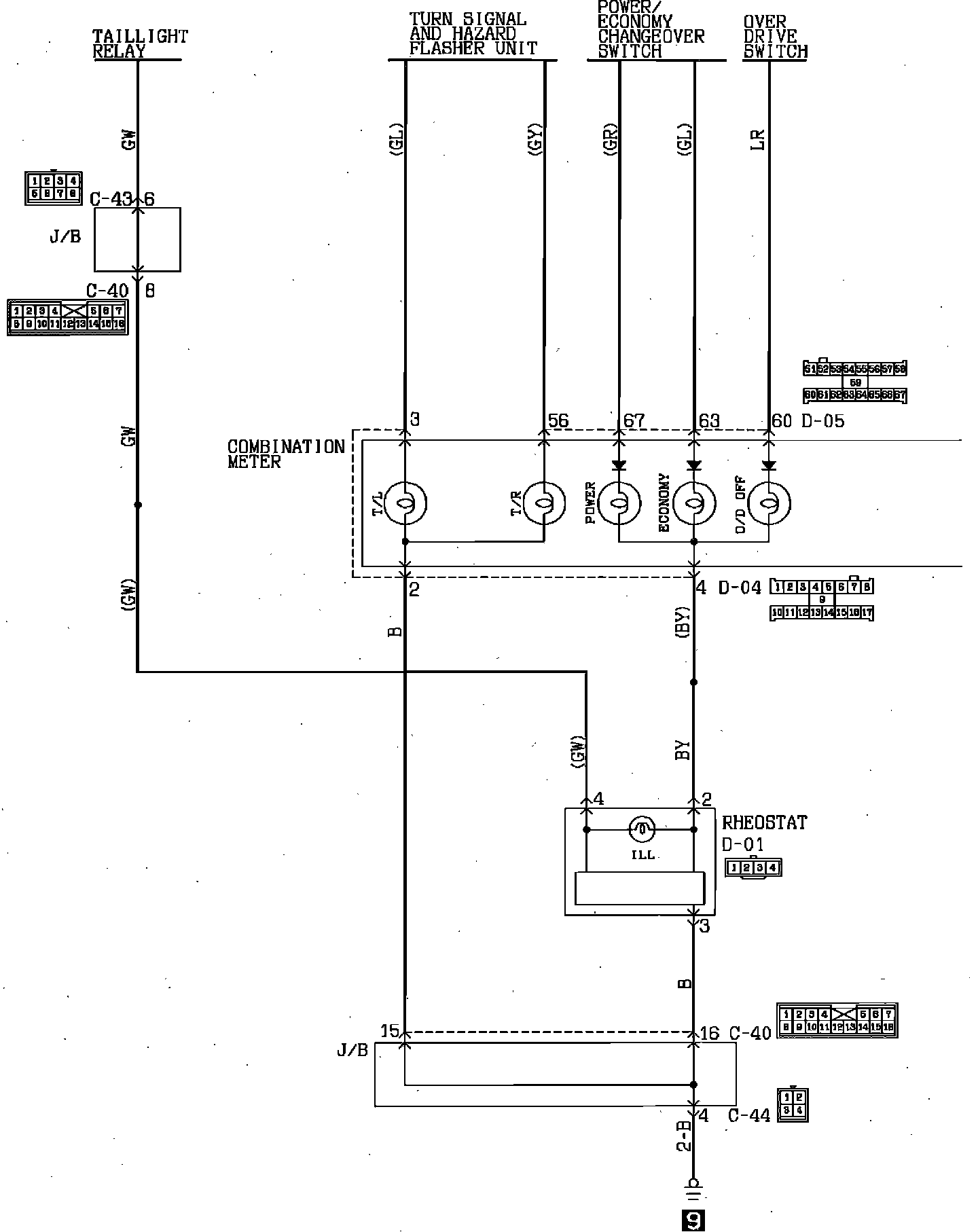

Instrument Panel (Indicators):
Instrument Panel (Indicators):
