Mitsubishi Wiring Diagrams

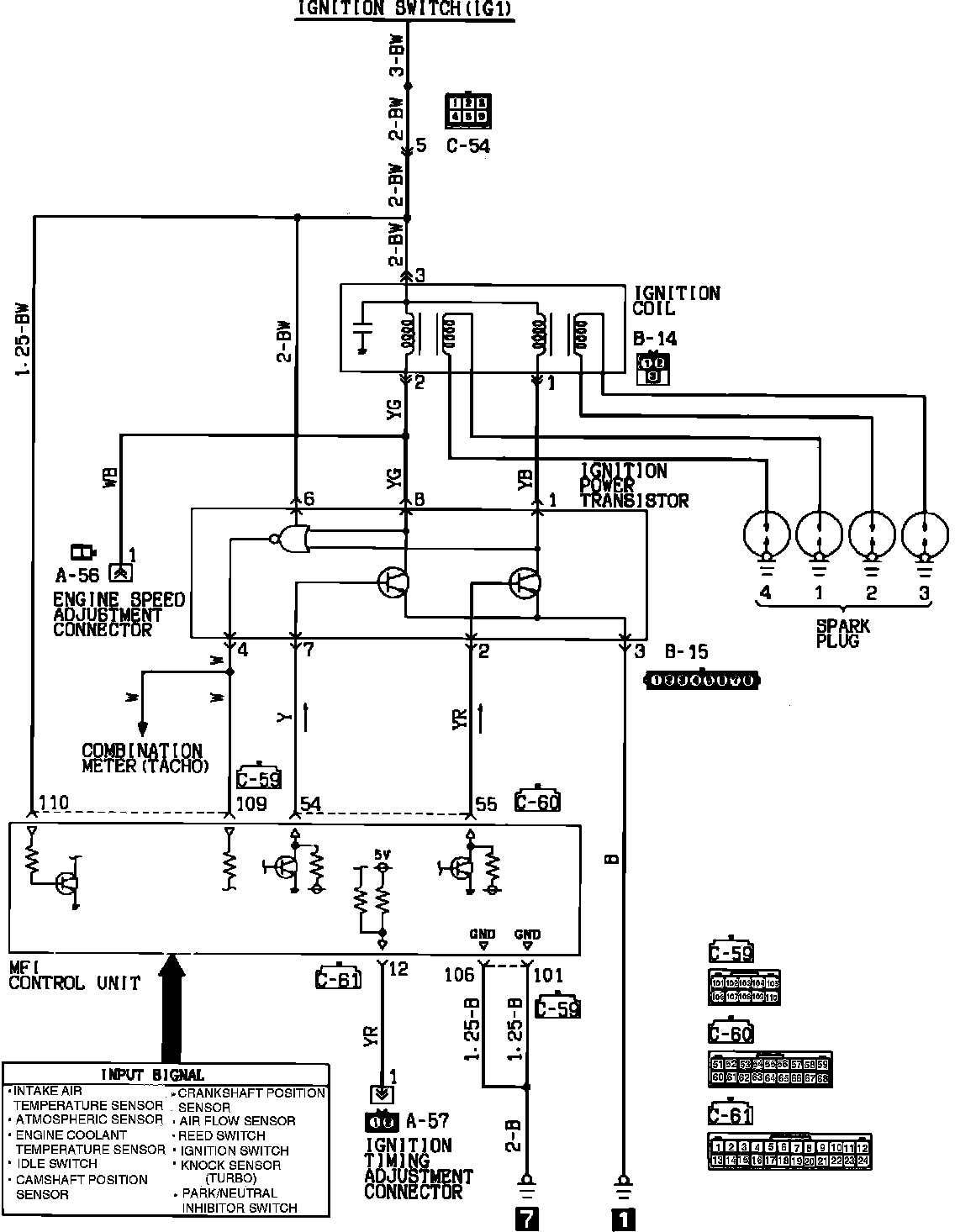

Ignition Circuit:





For additional wiring information refer to CHASSIS ELECTRICAL DIAGRAMS.
