Fuel Filter: Locations

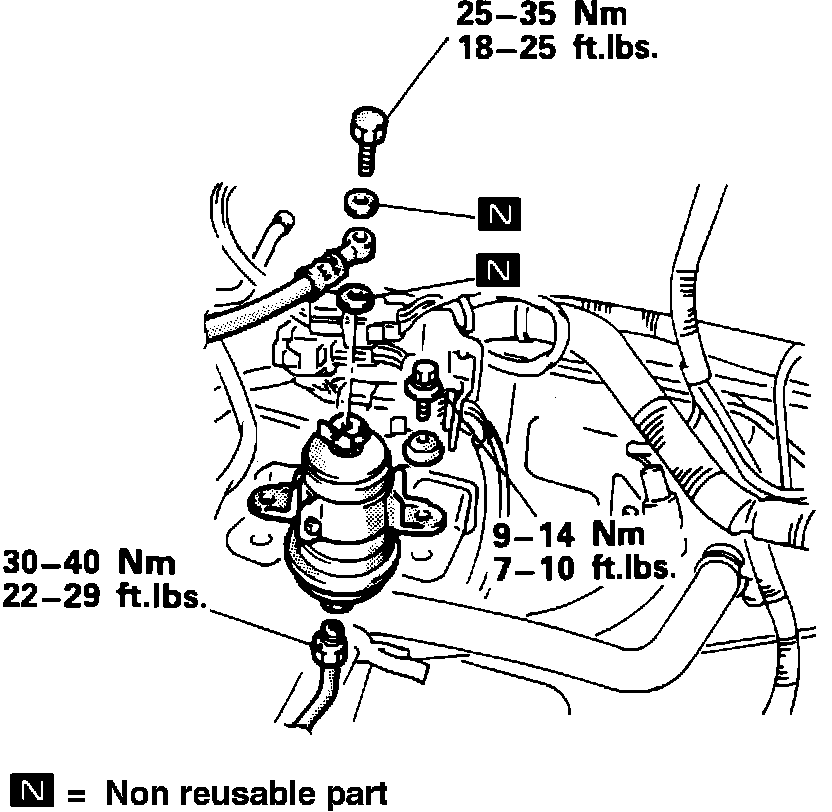

Fuel Filter Assembly:






The in-line fuel filter is located on the RH side of the firewall.
