A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
12
Manufacturer Code Charts: 12

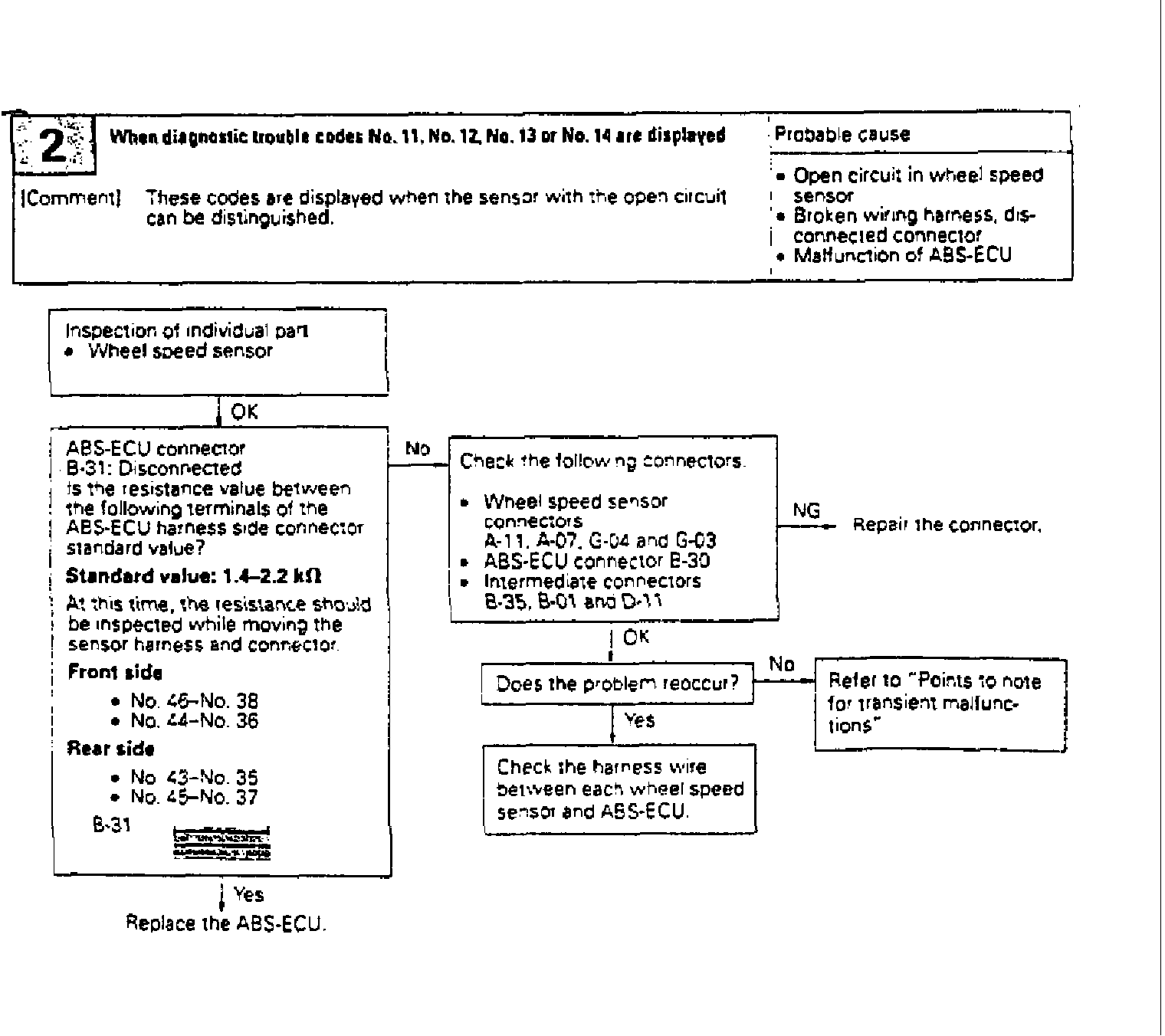

Fig. 11 Diagnostic Trouble Code Chart 2:
