Operation CHARM
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1993
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
25
Manufacturer Code Charts: 25

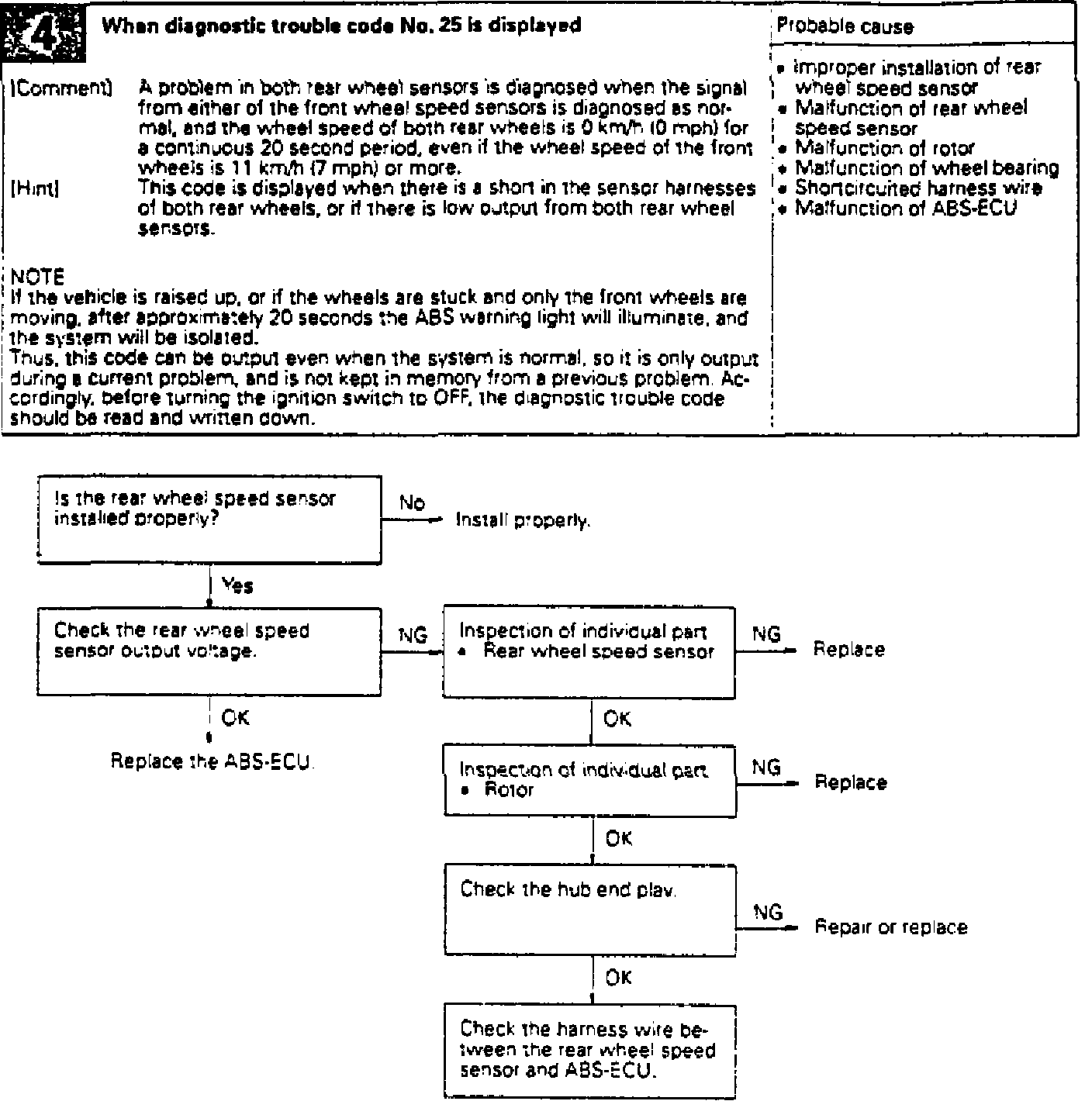

Fig. 13 Diagnostic Trouble Code Chart 4:
