A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
43
Manufacturer Code Charts: 43

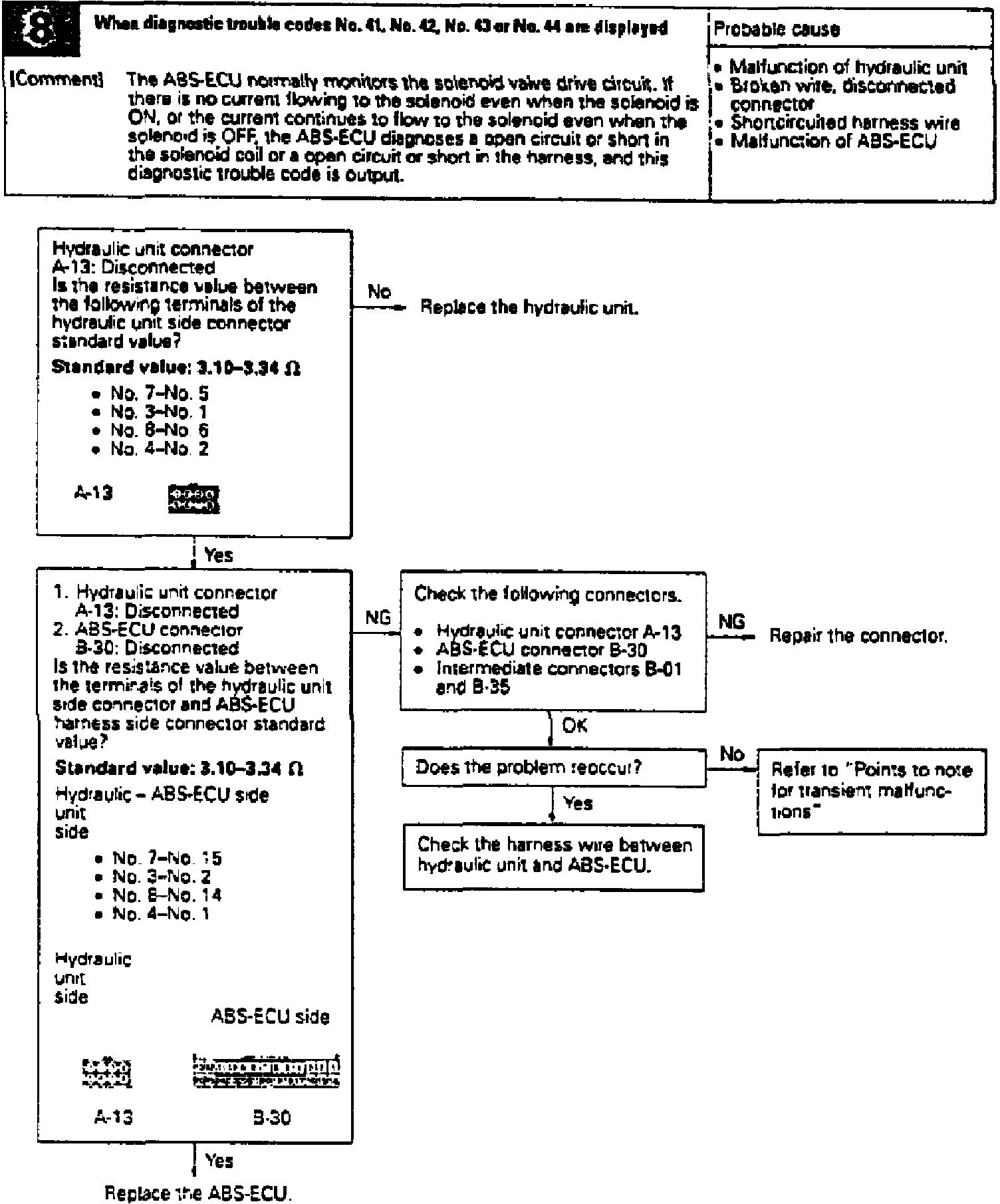

Fig. 17 Diagnostic Trouble Code Chart 8:
