Antilock Brakes / Traction Control Systems

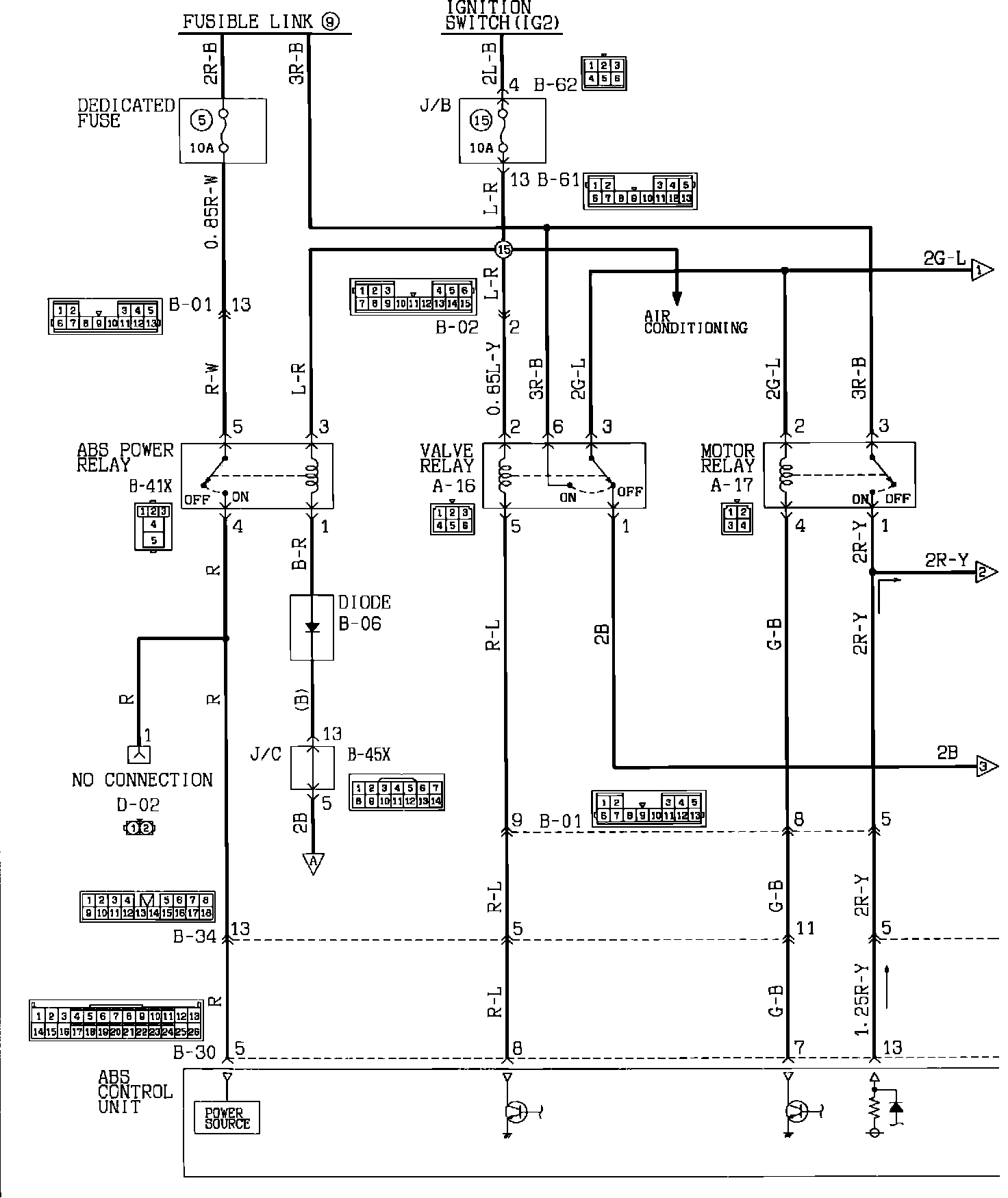

Fig. 9 ABS Wiring Diagram:

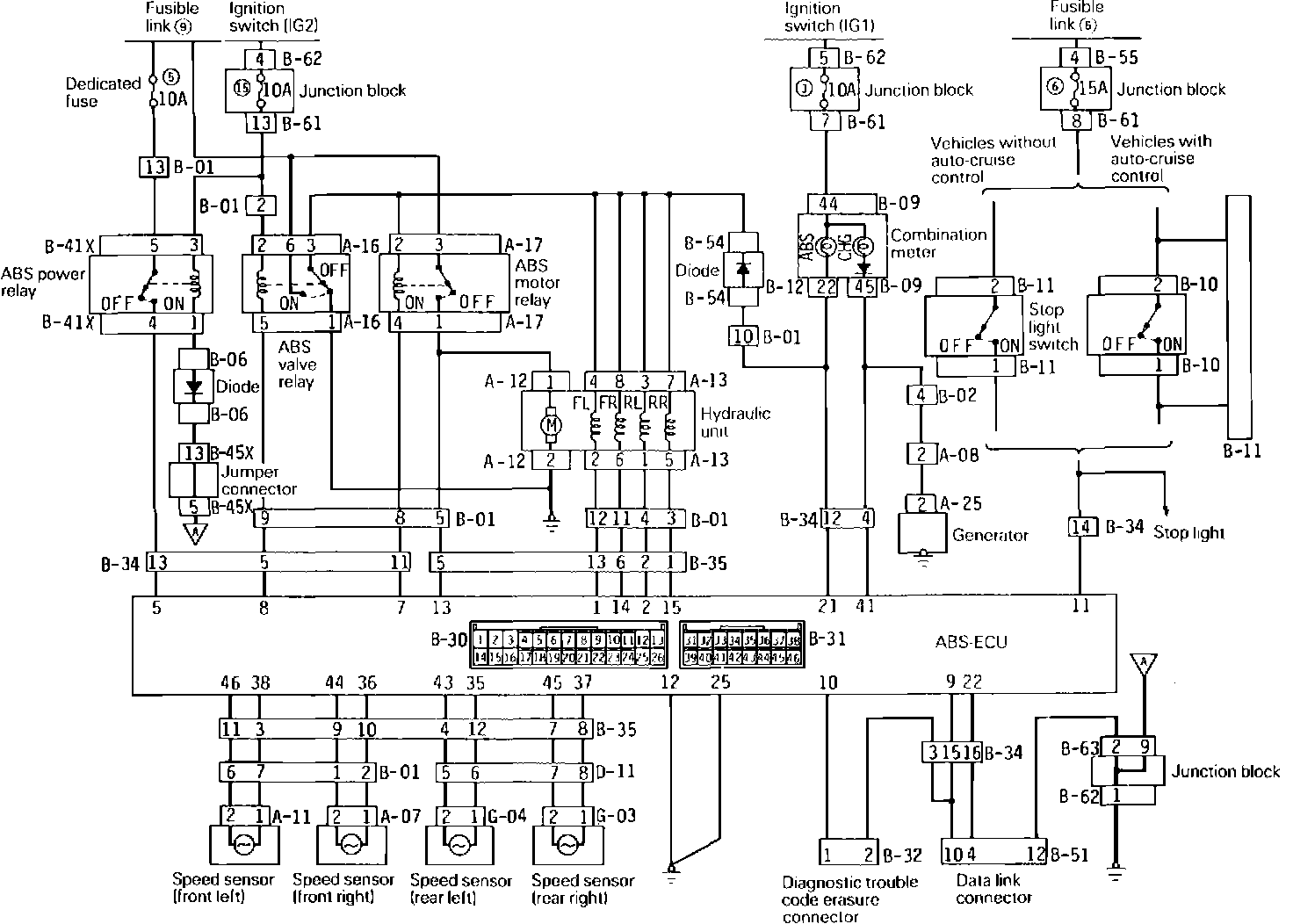

Anti-lock Brake System Circuit:



Anti-lock Brake System Circuit:



Anti-lock Brake System Circuit:



Anti-lock Brake System Circuit:
