Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

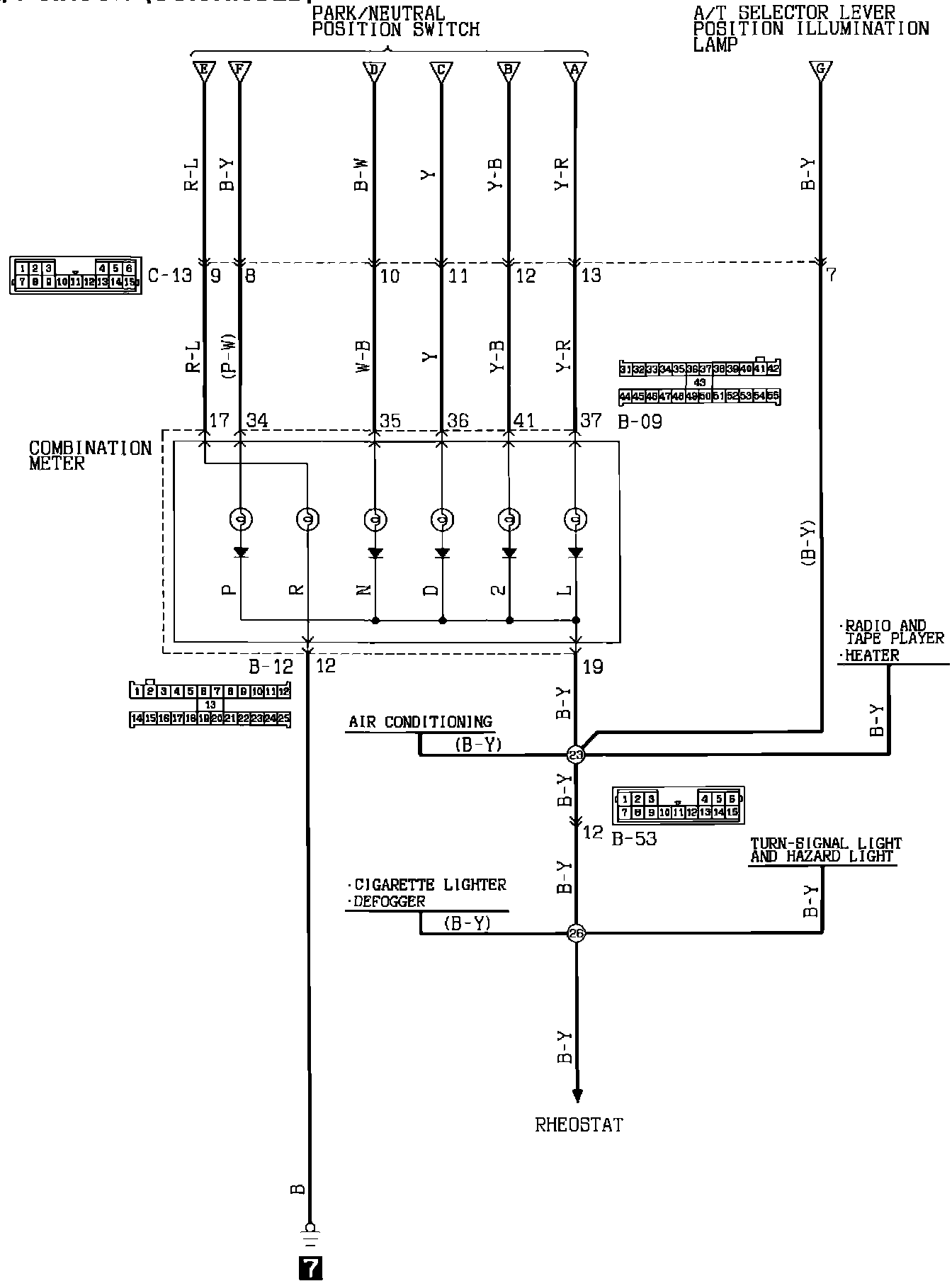

3 Speed Auto Transaxle Circuit:
3 Speed Auto Transaxle Circuit:
