Turn Signals

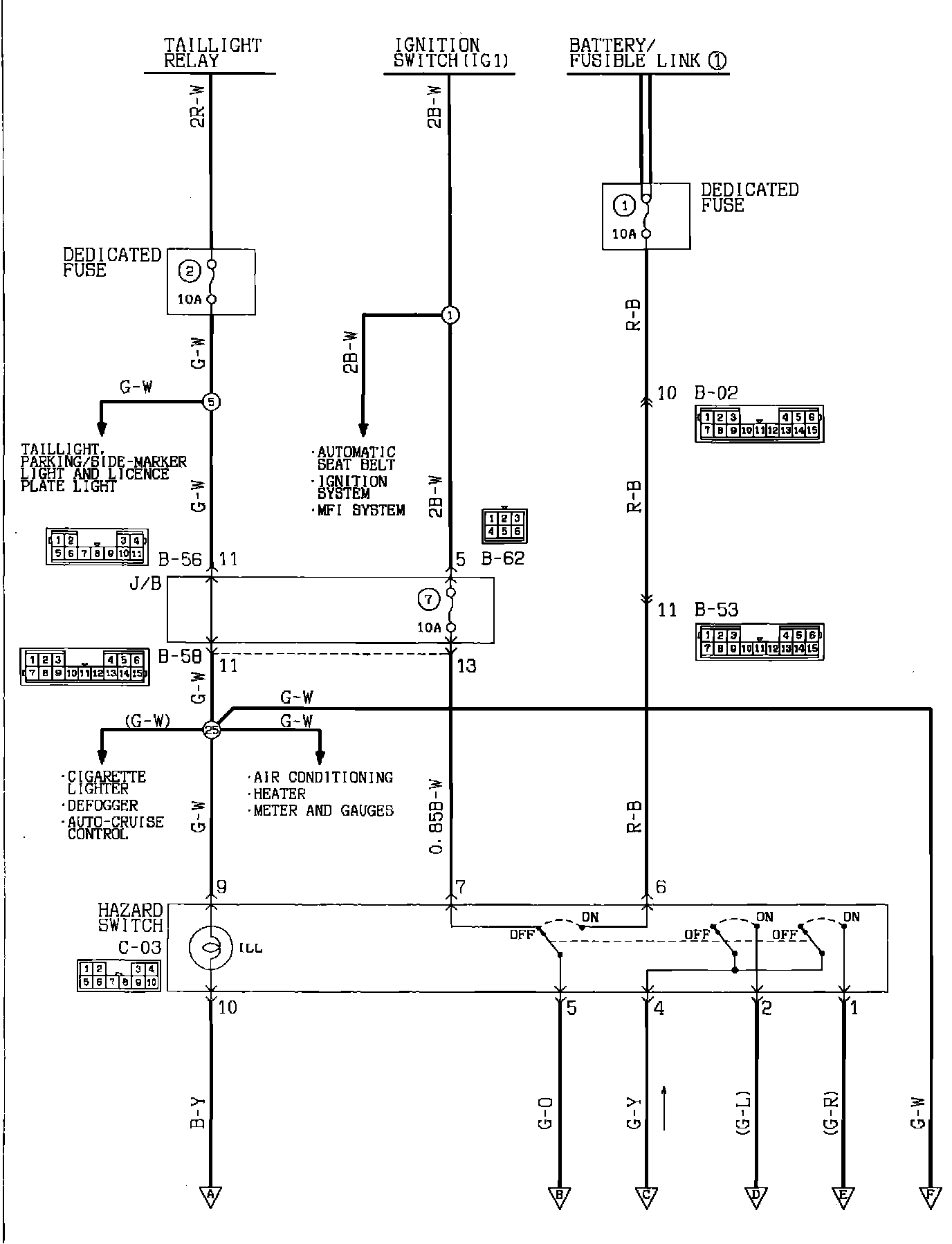

Turn Signal And Hazard Light Circuit:

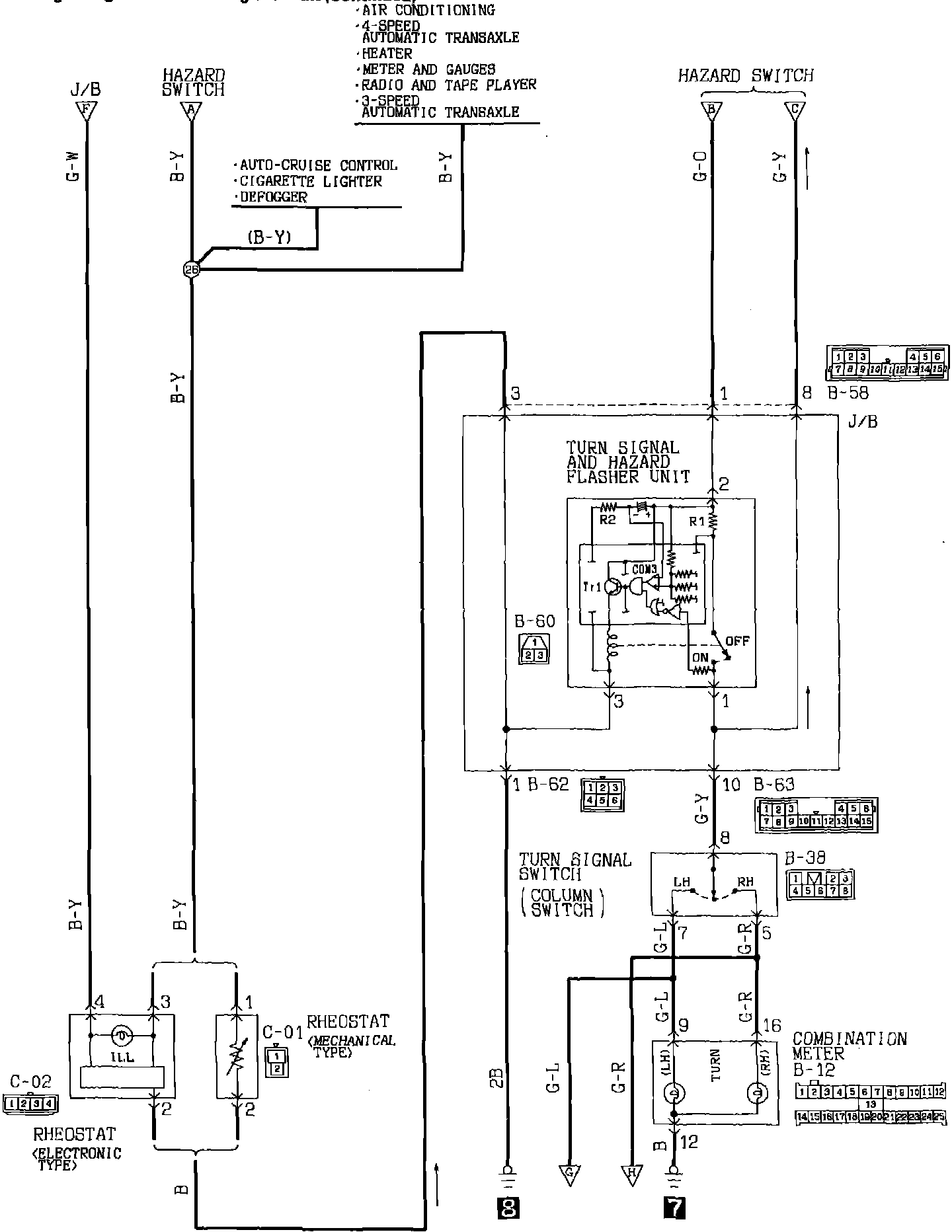

Turn Signal And Hazard Light Circuit:



Turn Signal And Hazard Light Circuit:
