Eagle
>>
1993
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Compressor Clutch Relay
>>
Locations
Compressor Clutch Relay: Locations

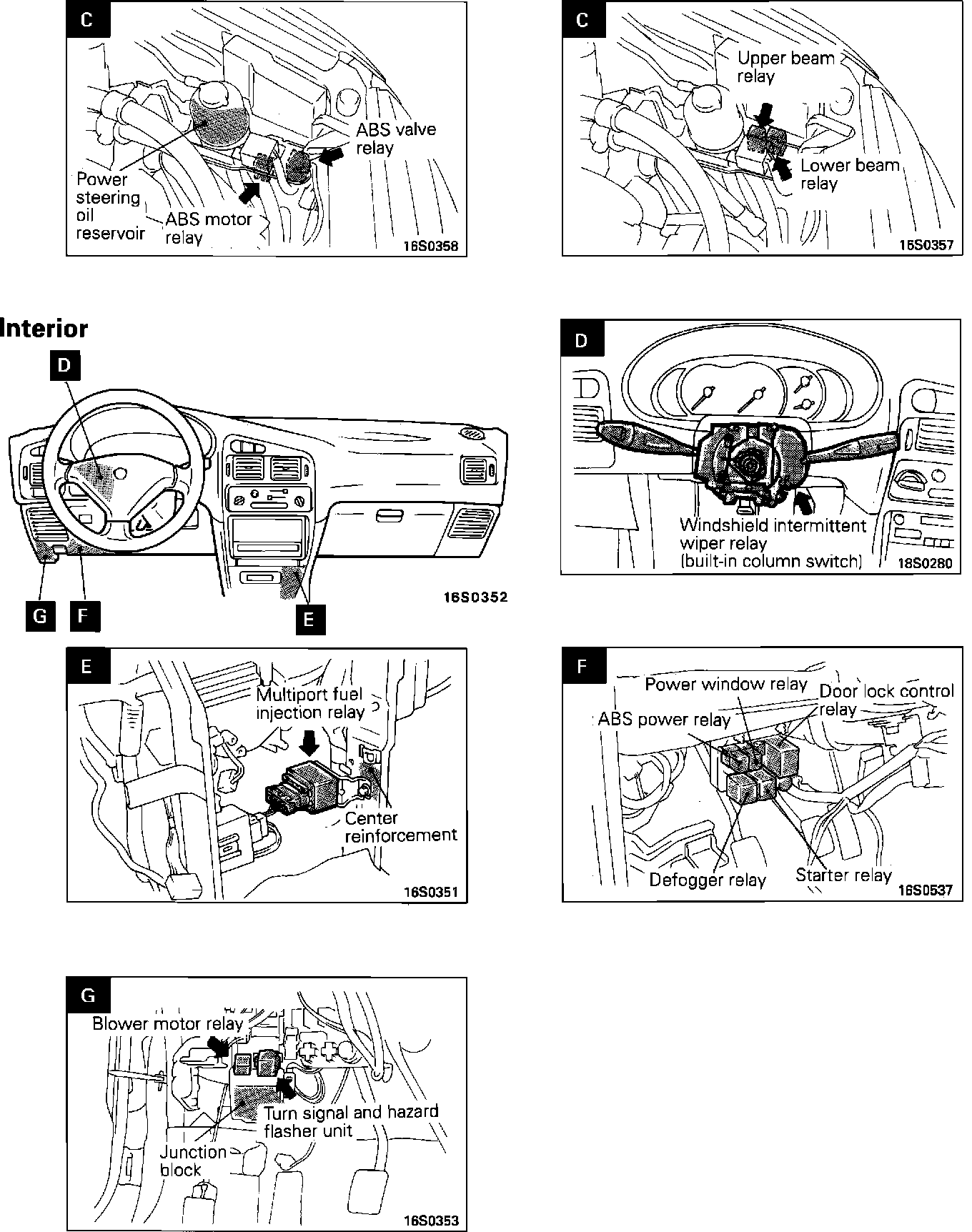

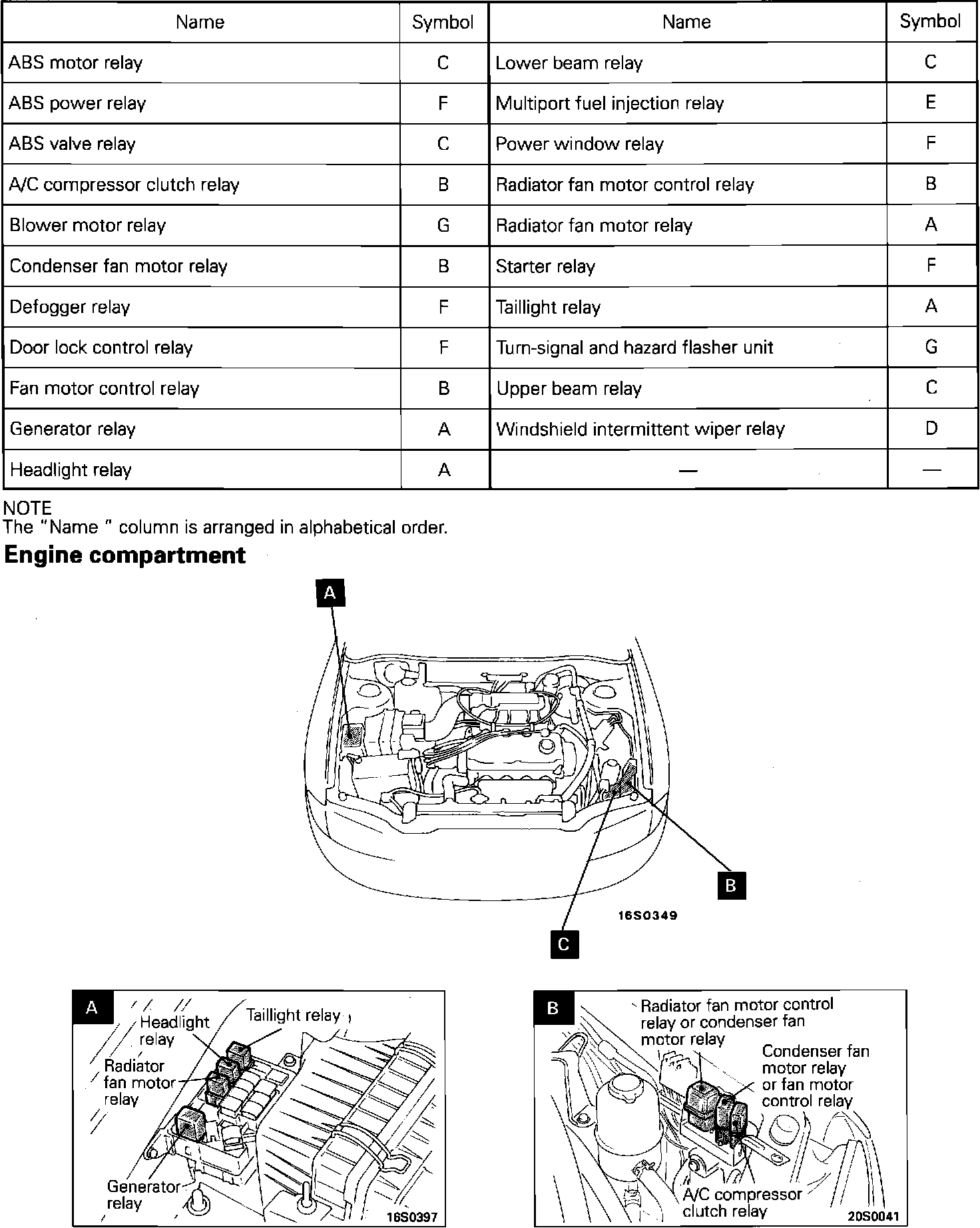

Relay Locations:
Relay Locations:
