Condenser Fan: Testing and Inspection

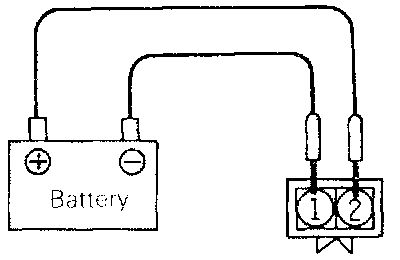

Fig. 41 - Condenser Fan Motor Test:

1. Disconnect fan electrical connector.
2. Connect 12 power supply as shown. Fan motor should operate smoothly.
3. If motor does not operate as specified, replace fan motor.
