Heater Core: Service and Repair

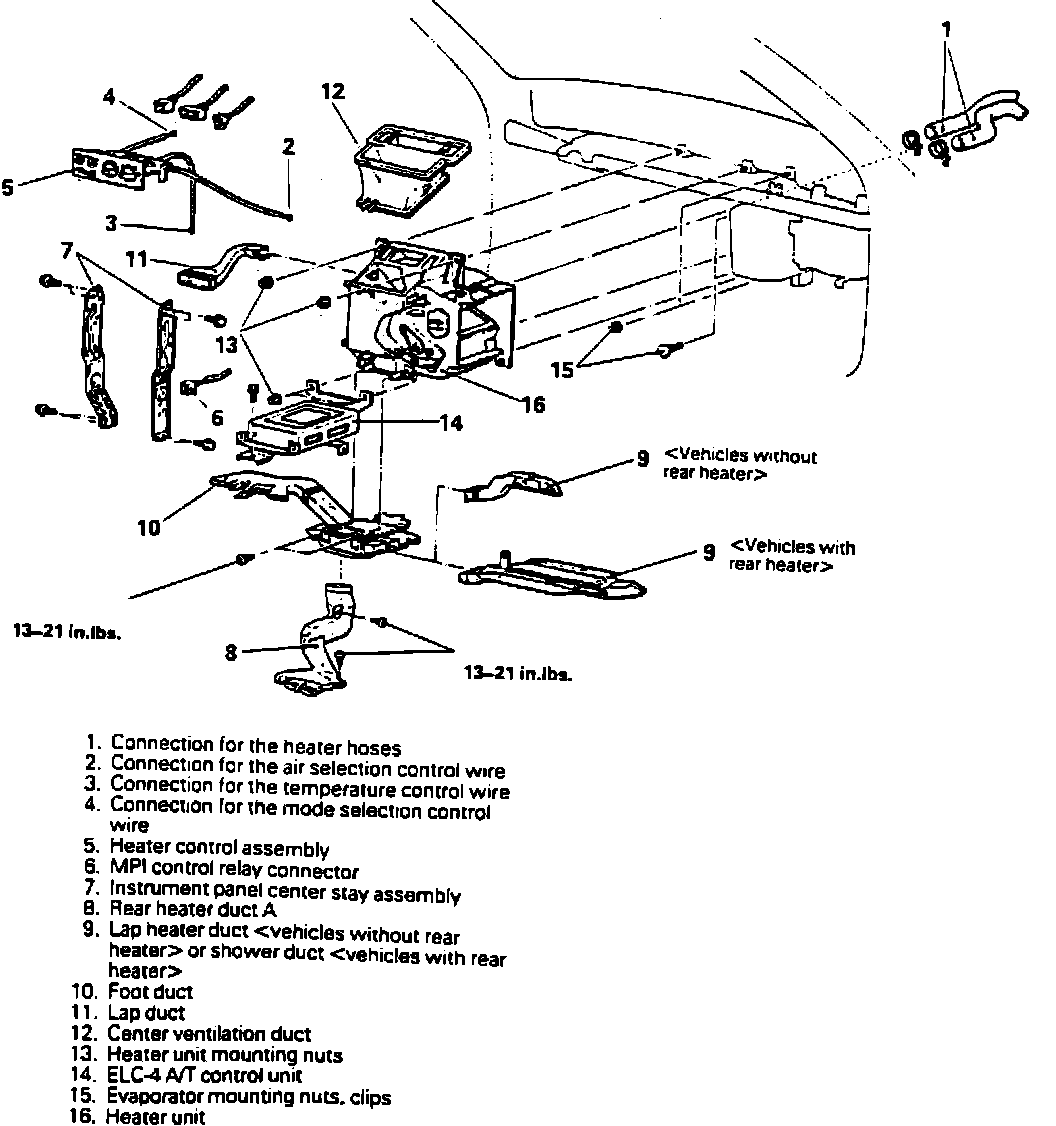

Fig. 14 Heater Core Replacement:

1. Disconnect battery ground cable.
2. Set temperature lever at the extreme hot position, then drain engine coolant and disconnect heater hoses.
3. Remove front seats and floor console, then the instrument panel as described in "Dash Panel Service" section.
4. Disconnect air selection, temperature control and mode selection control wires.
5. Remove heater control assembly, then disconnect MPI relay connector.
6. Remove instrument panel center stay assembly.
7. On models with rear heater, remove rear heater and shower ducts.
8. On models less rear heater, remove lap heater duct.
9. On all models, remove foot, lap and center ventilation ducts, then the heater unit mounting nuts.
10. On models with ELC-4 automatic transmission, remove ELC-4 A/T control unit.
11. On models with A/C, remove evaporator mounting nuts and clips, then pull evaporator outward to allow access to heater unit. Be careful not to damage liquid pipe or suction hose.
12. On all models, remove heater unit.
13. Remove side plate and heater core fastening clips from heater unit, then pull out heater core from heater unit.

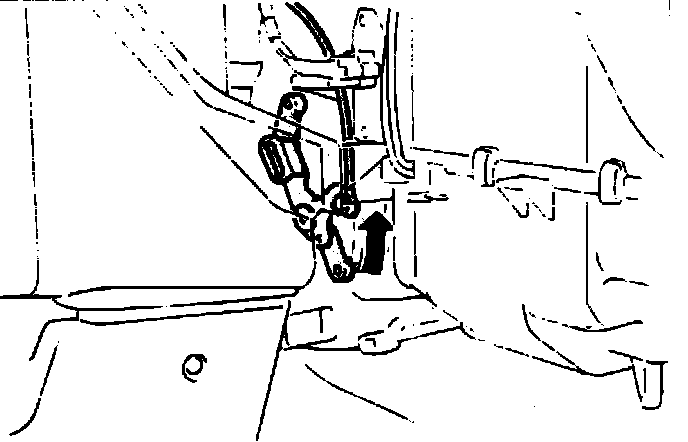

Fig. 15 Positioning Mode Selection Damper Lever:

Fig. 16 Positioning Blend Air Damper Lever:

Fig. 17 Positioning Air Selection Damper Lever:

14. Reverse procedure to install, noting the following:
a. Place mode selector lever in vent position, then with mode selection damper lever pulled outward in direction indicated by arrow, connect mode selection control wire to lever and secure outer cable using clip.
b. Place temperature control lever in "COOL" position, then with blend air damper lever pressed completely downward in direction indicated by arrow, connect temperature control wire to lever and secure outer cable using clip.
c. Place air selection lever in recirculation position, then set air selection damper lever as it contacts stopper as shown, connect air selection control wire to lever and secure outer cable using clip.
