Drivetrain/Steering - Hub Service/Power Steering Rev.

NUMBER: 26-08-96L

GROUP: Miscellaneous

DATE: August, 1996

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1993 Colt/Summit Wagon - Publication Number 81-270-3113

DESCRIPTION OF CHANGES

Revisions to the axle hub service procedures.

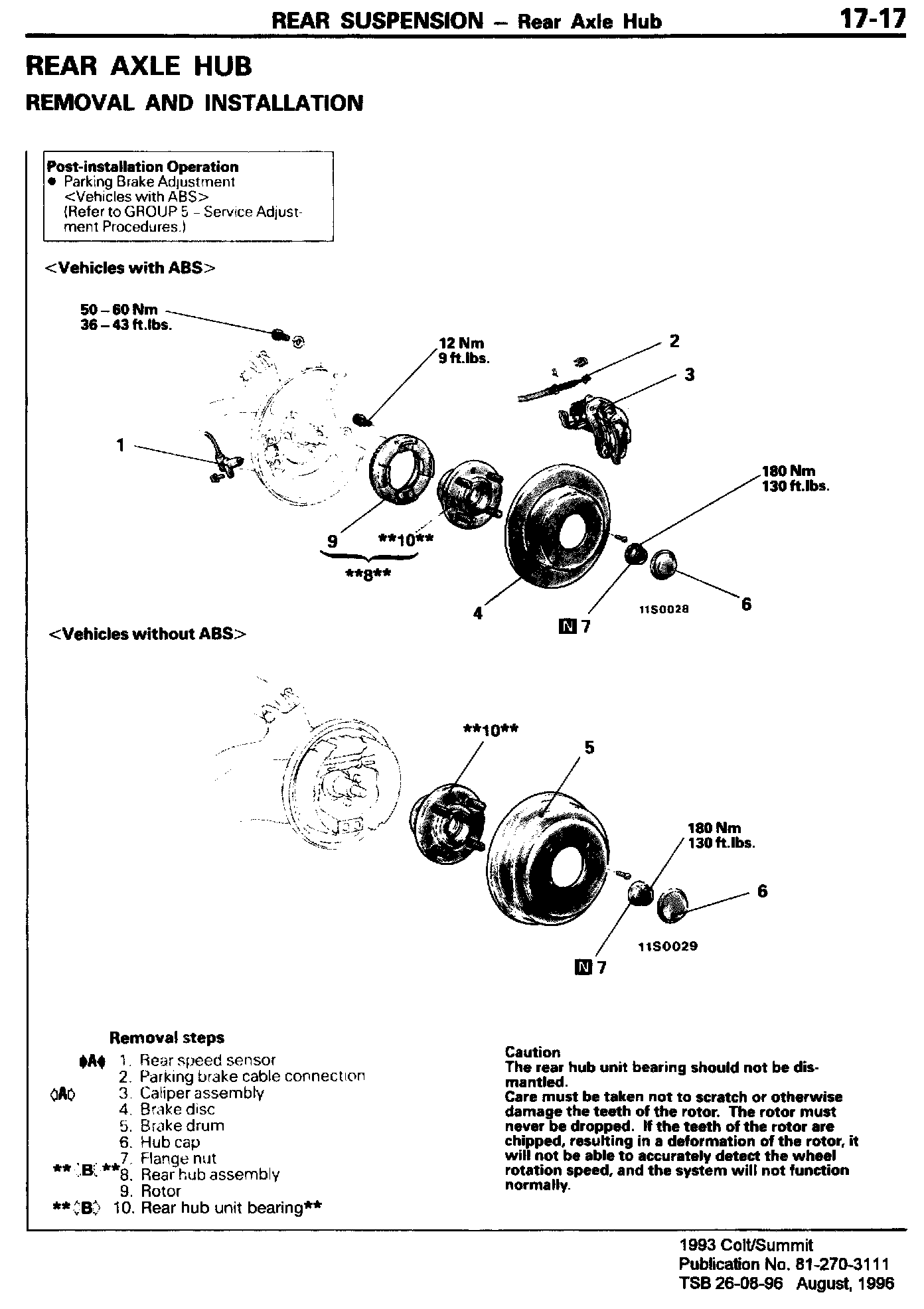

17-17

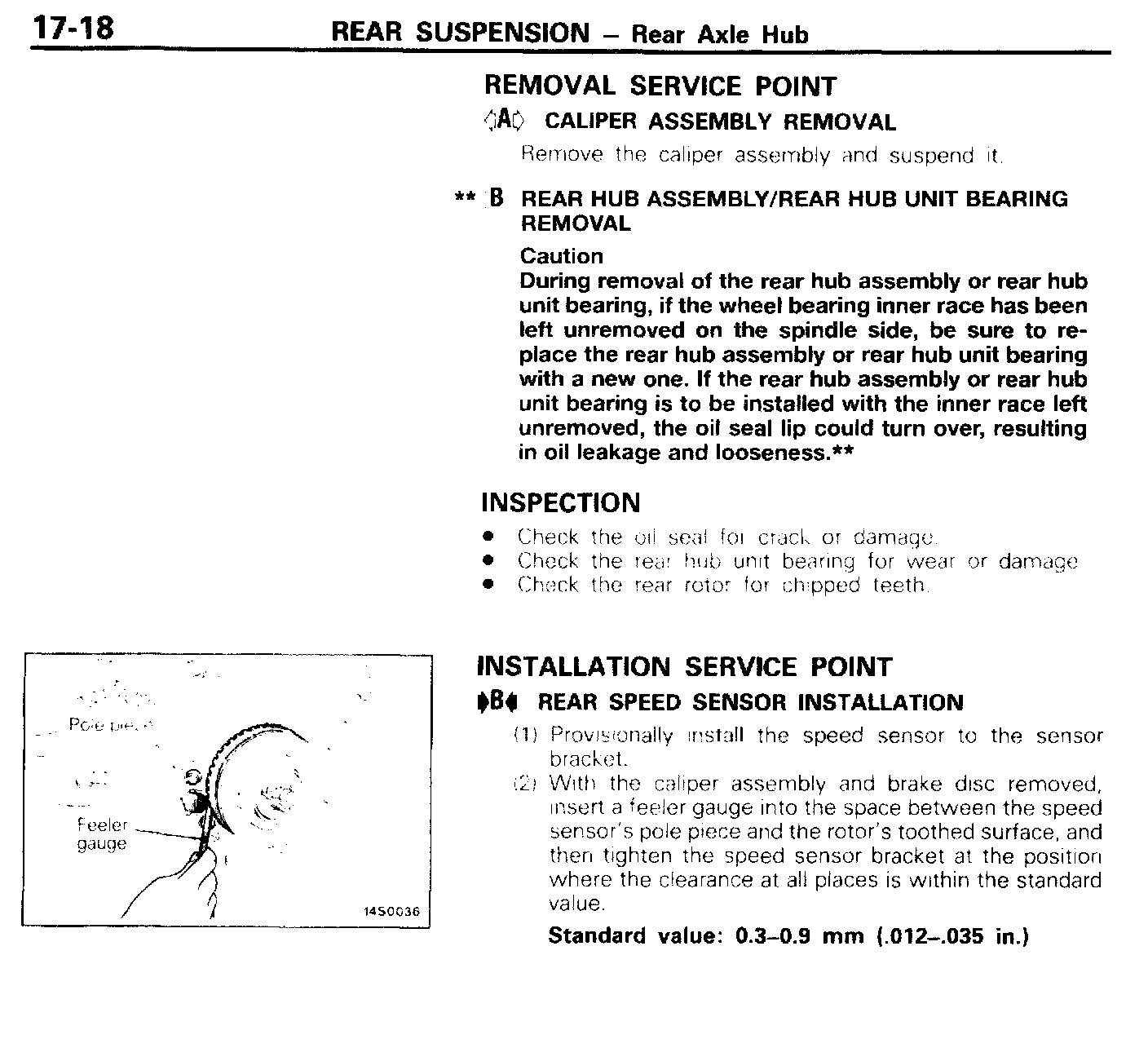

17-18

Revisions to the power steering system graphics.

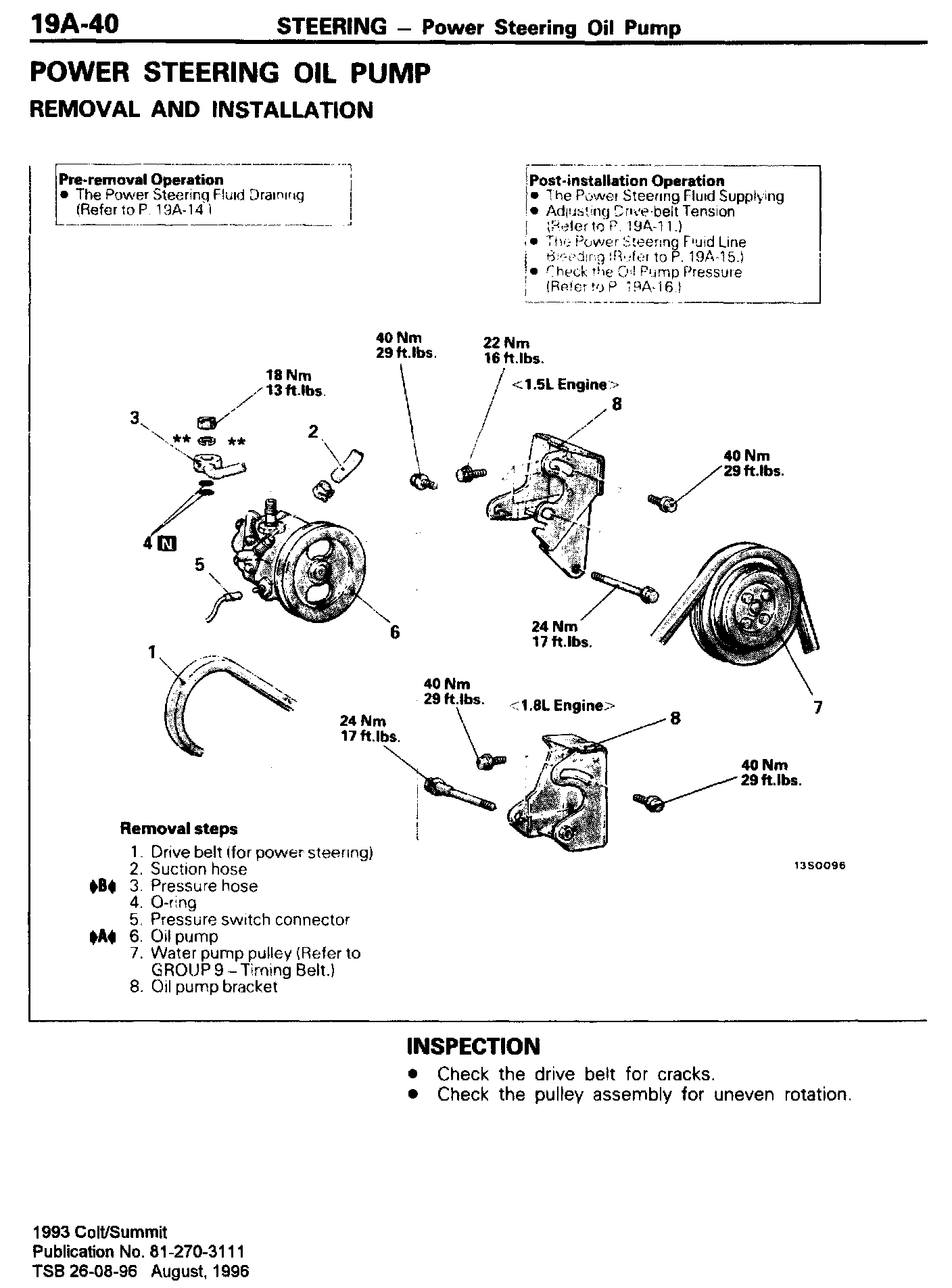

19A-40

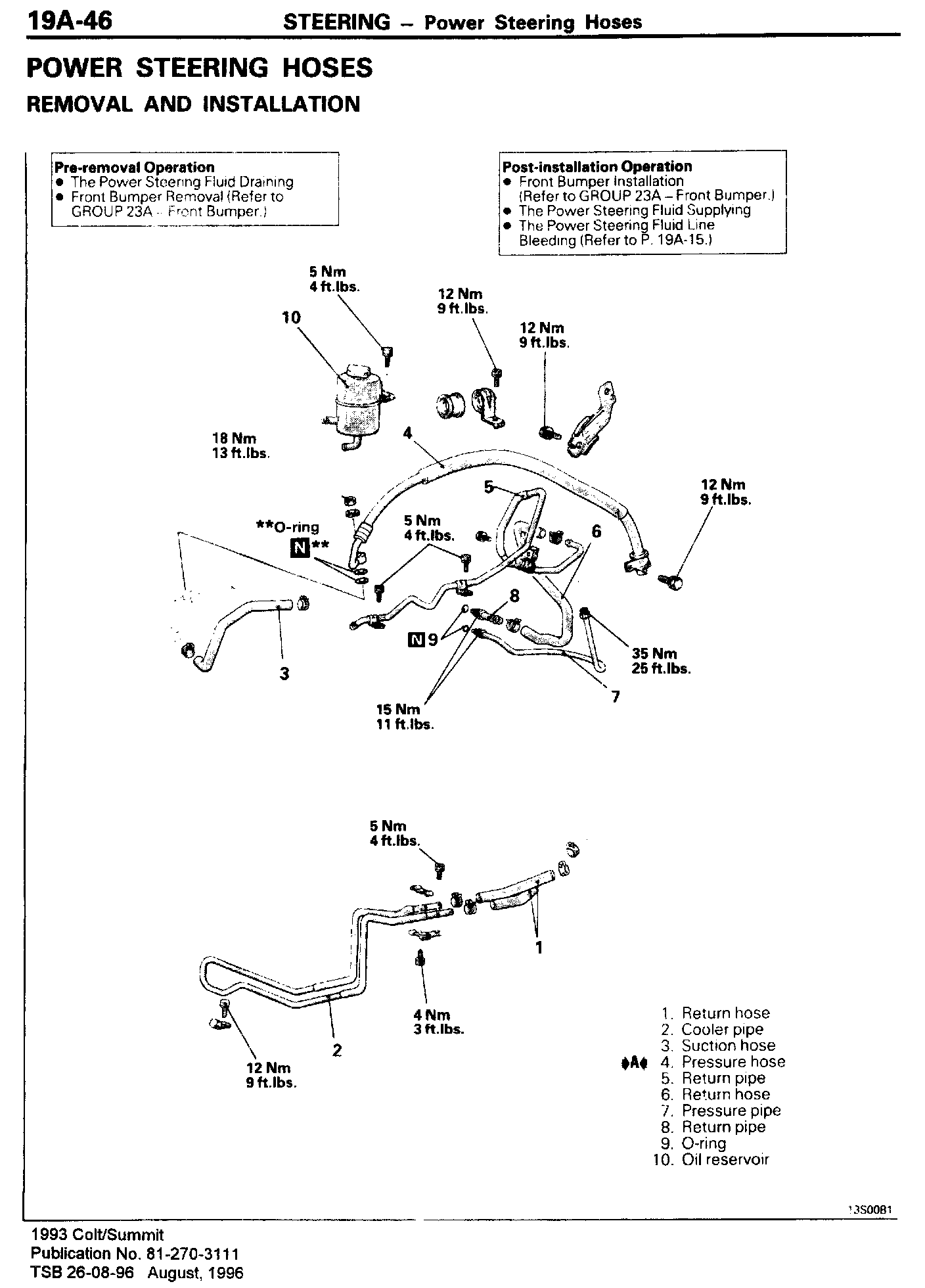

19A-46
