Steering/Drivetrain - Power Steering/Hub Service Rev.

NUMBER: 26-08-96M

GROUP: Miscellaneous

DATE: August, 1996

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1993 Colt/Summit Wagon - Publication Number 81-270-3113

DESCRIPTION OF CHANGES

Revisions to the axle hub service procedures.





17-17





17-18

Revisions to the power steering system graphics.

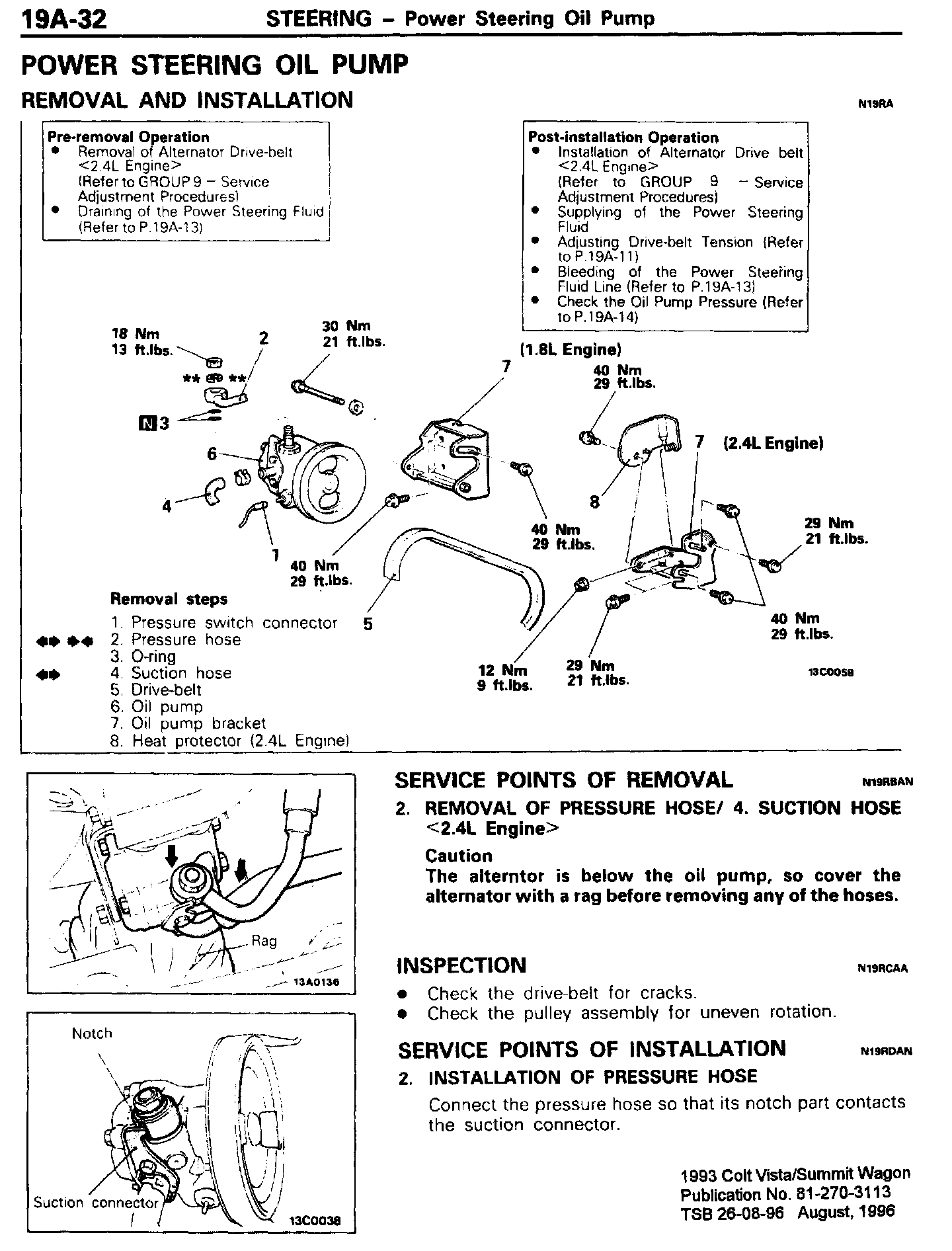

19A-32

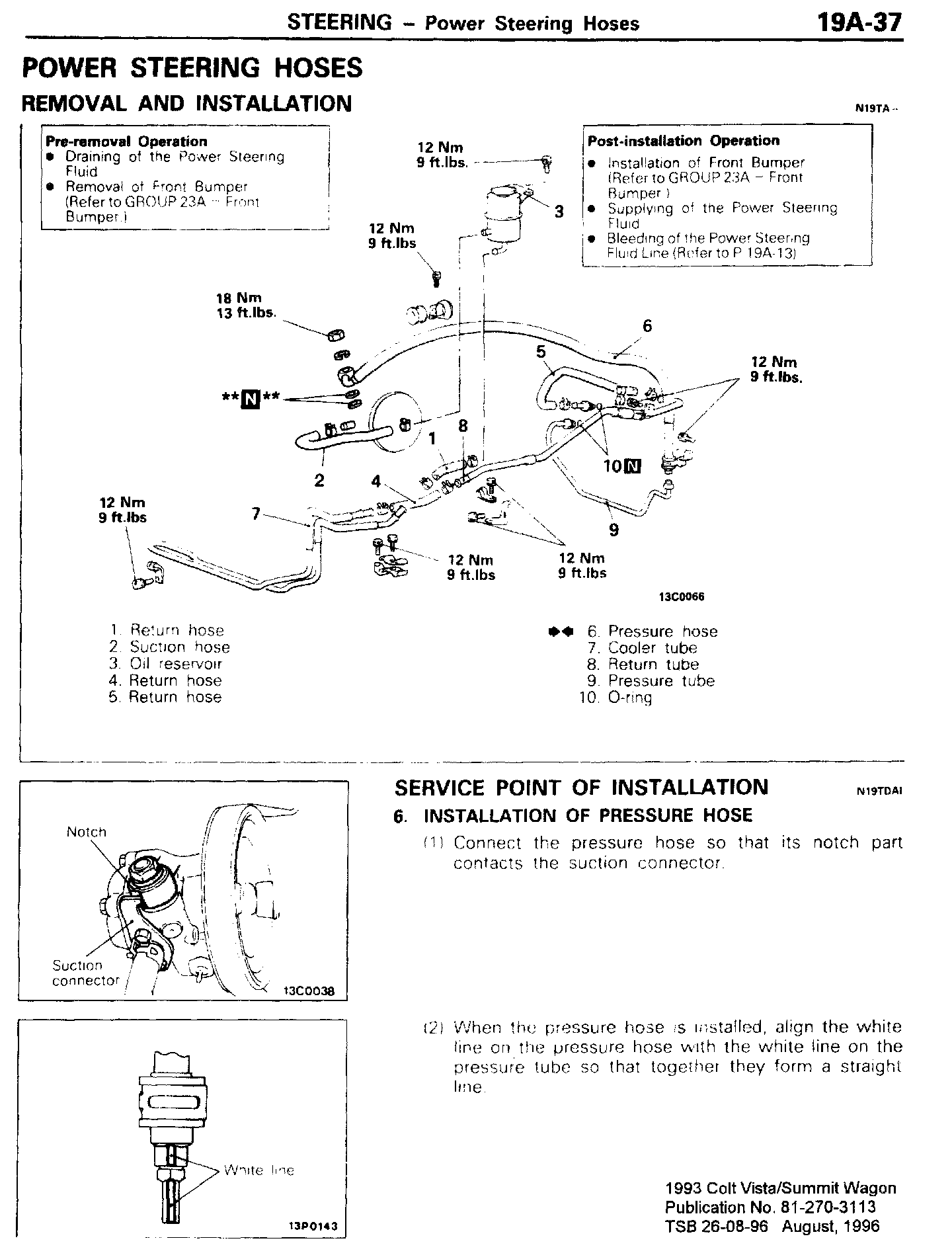

19A-37
