Sunglass Pocket - Removal Procedure

NO.:
23-17-93

GROUP:
Body

DATE:
Apr. 2, 1993



SUBJECT:
Revised Procedure To Remove And Install Instrument Panel Lower Sunglass Pocket



MODELS:

1993 (B9) Colt/Summit


SYMPTOM/CONDITION:

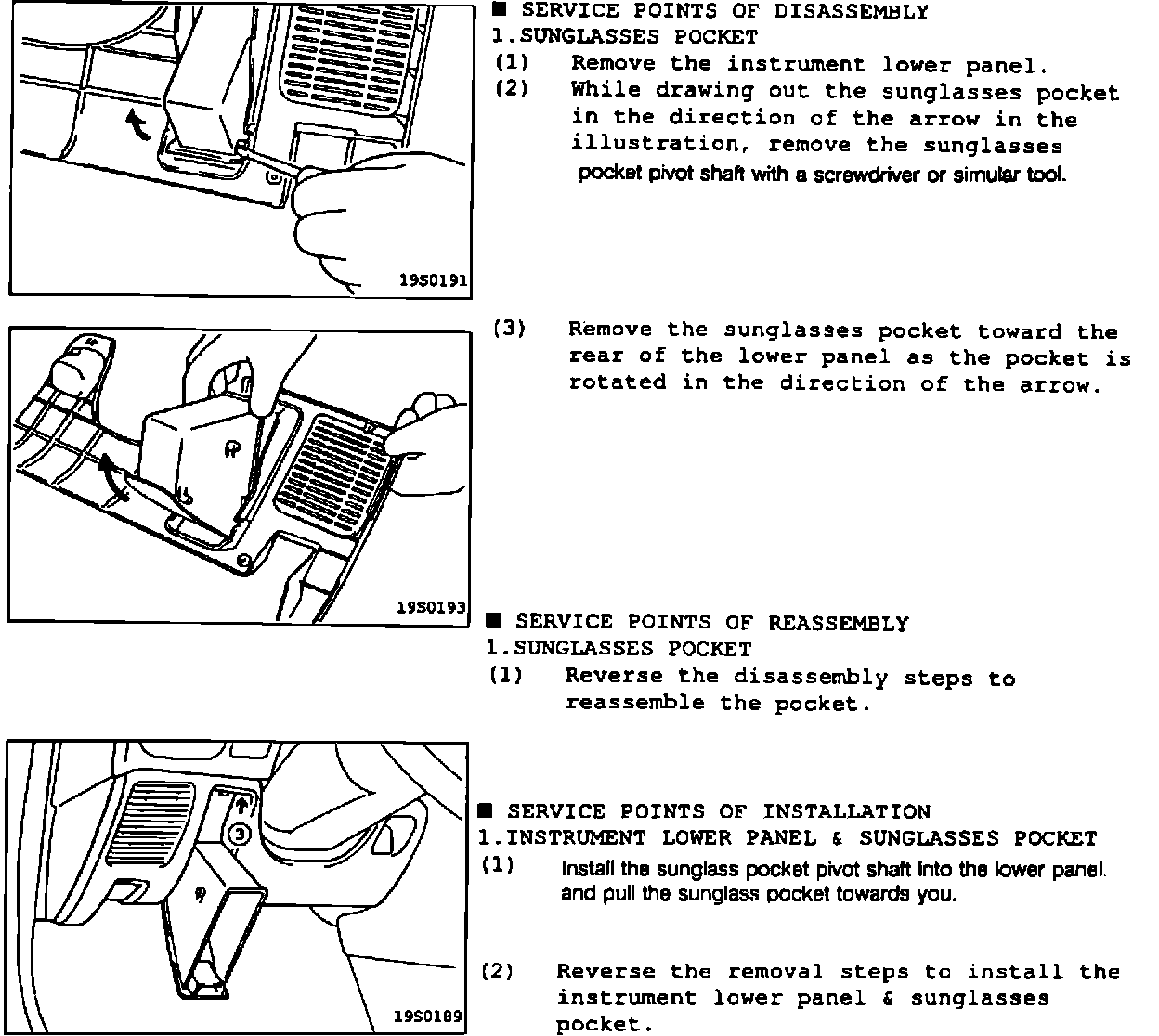

Removal of the sunglass pocket from the instrument panel without removing the instrument lower panel can cause damage to the sunglass pocket pivot shaft. To prevent this damage from happening, a procedure for removal of the lower panel with the sunglass pocket attached and subsequent removal of the sunglass pocket from the lower panel has been established.








REPAIR PROCEDURE



POLICY:
Reimbursable within the provisions of the warranty.


TIME ALLOWANCE
Labor Operation No. 23-11-25-90..............................0.2 Hrs.


FAILURE CODE:
27 - Damaged
