Wiper Motor: Testing and Inspection

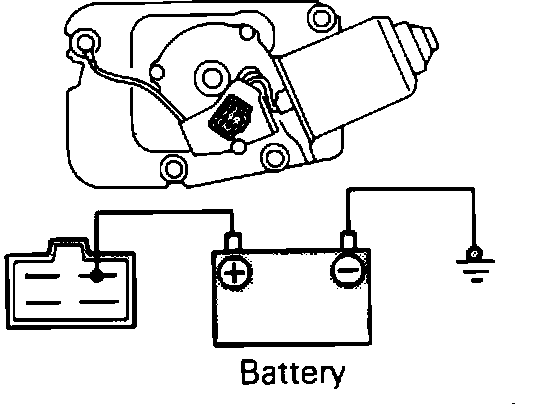

Fig. 28 Wiper Motor Low Speed Test:

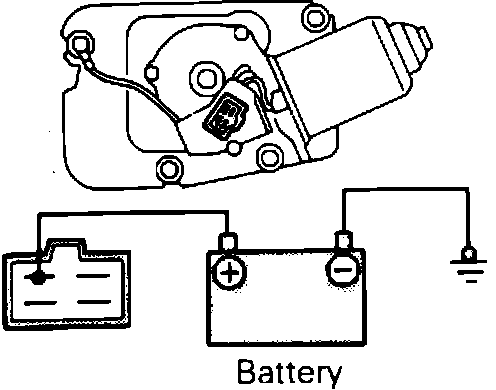

Fig. 29 Wiper Motor High Speed Test:

1. Connect battery to wiper motor and ensure motor operation at low speed.
2. Connect battery to wiper motor and ensure motor operates at high speed.
