Powertrain Management: Locations

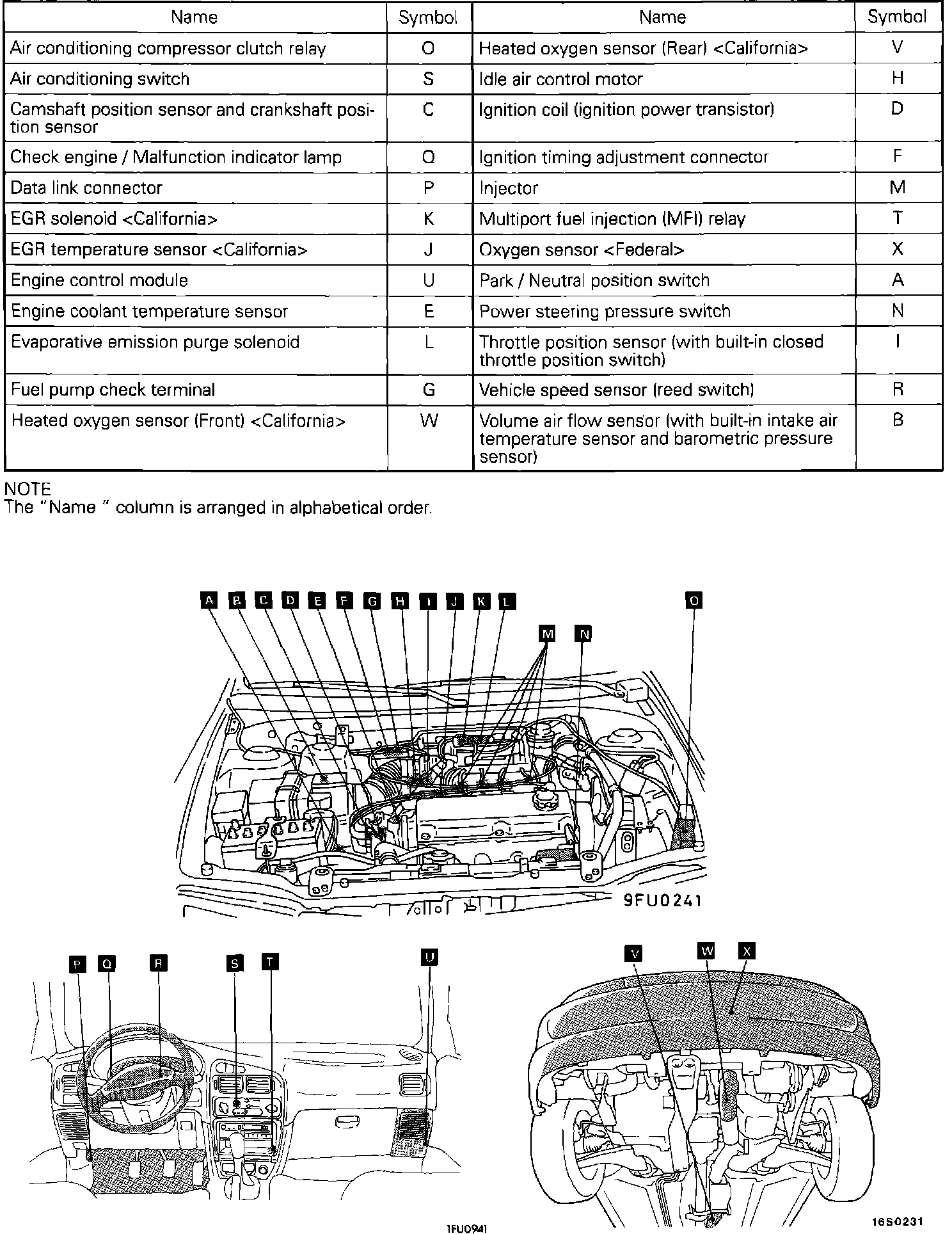

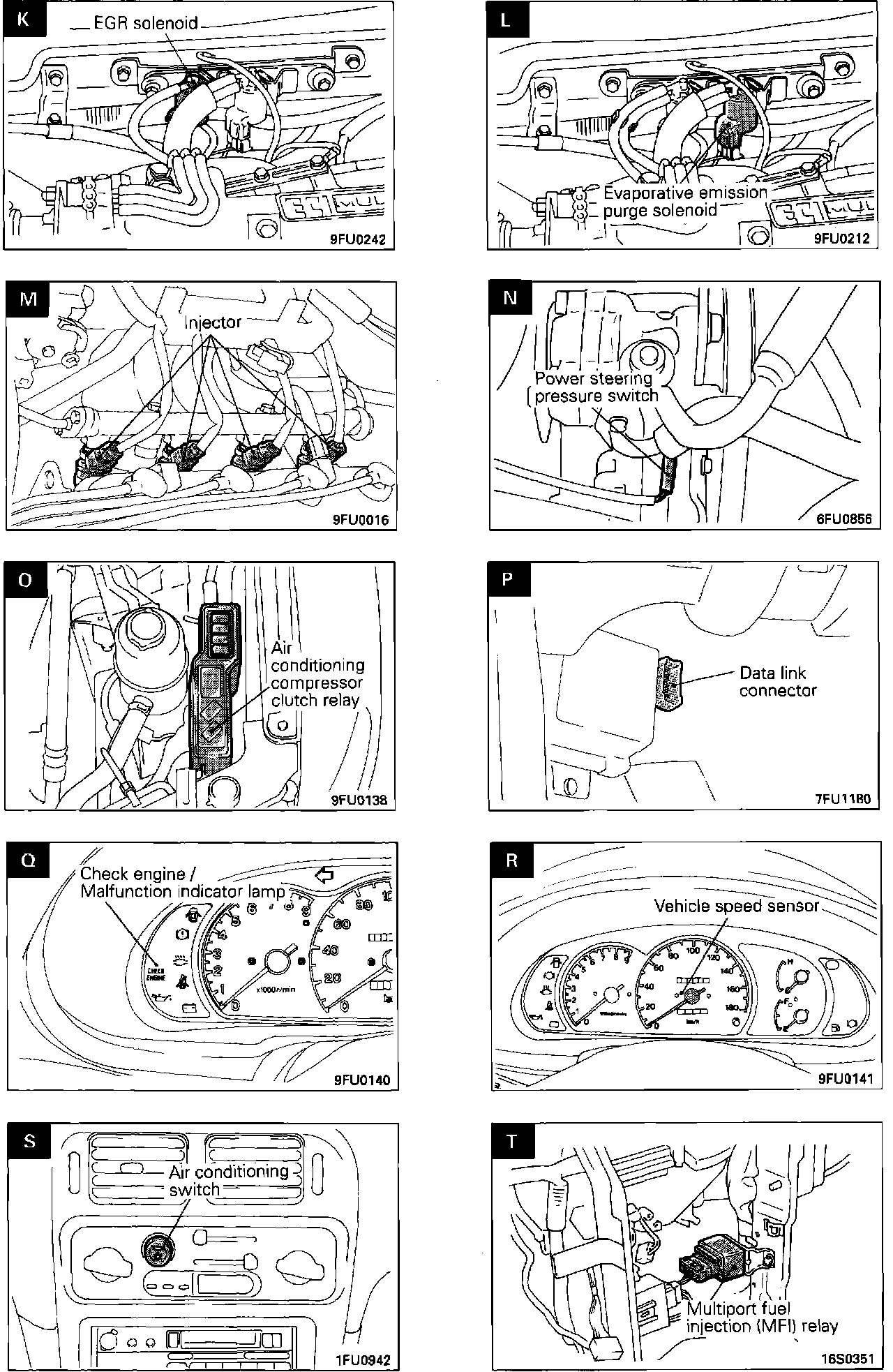

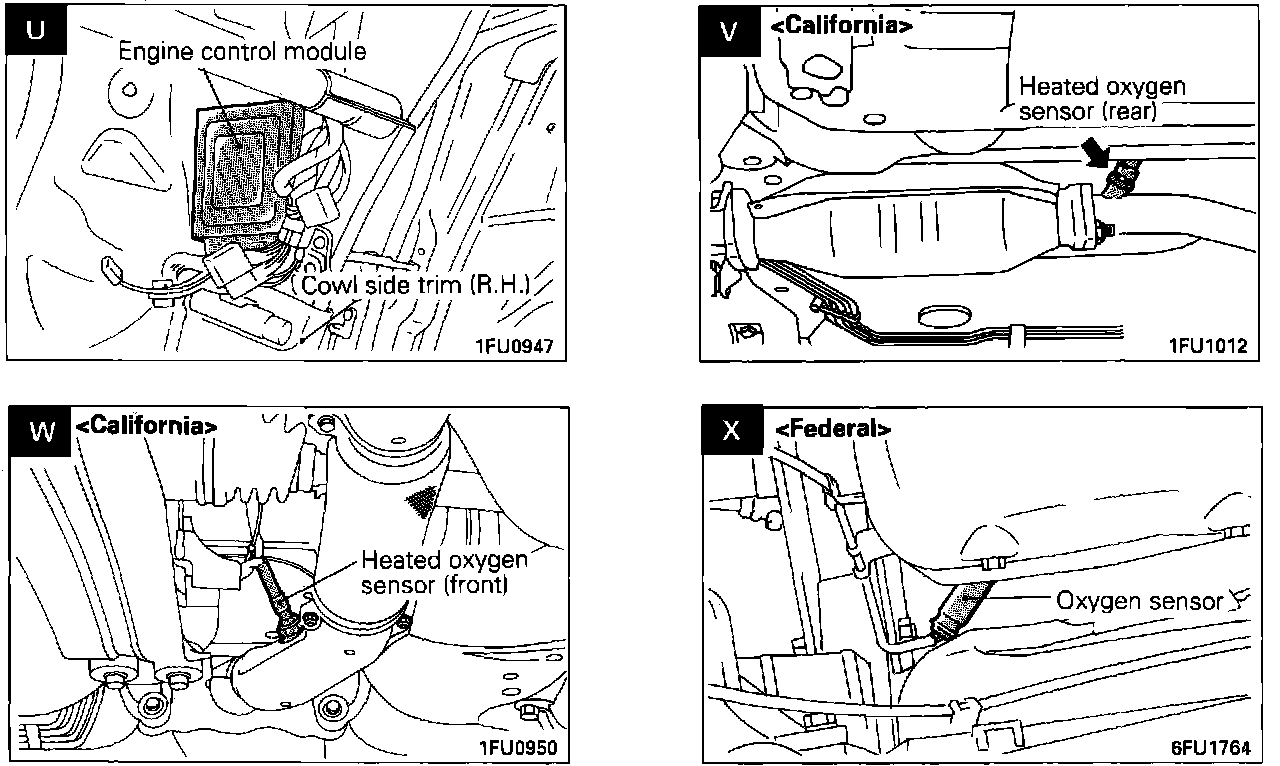

MFI Component Locations:



MFI Component Locations:



MFI Component Locations:



MFI Component Locations:
