Operation CHARM
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1993
>>
Summit Vista AWD L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>
With Manual Transmission
With Manual Transmission

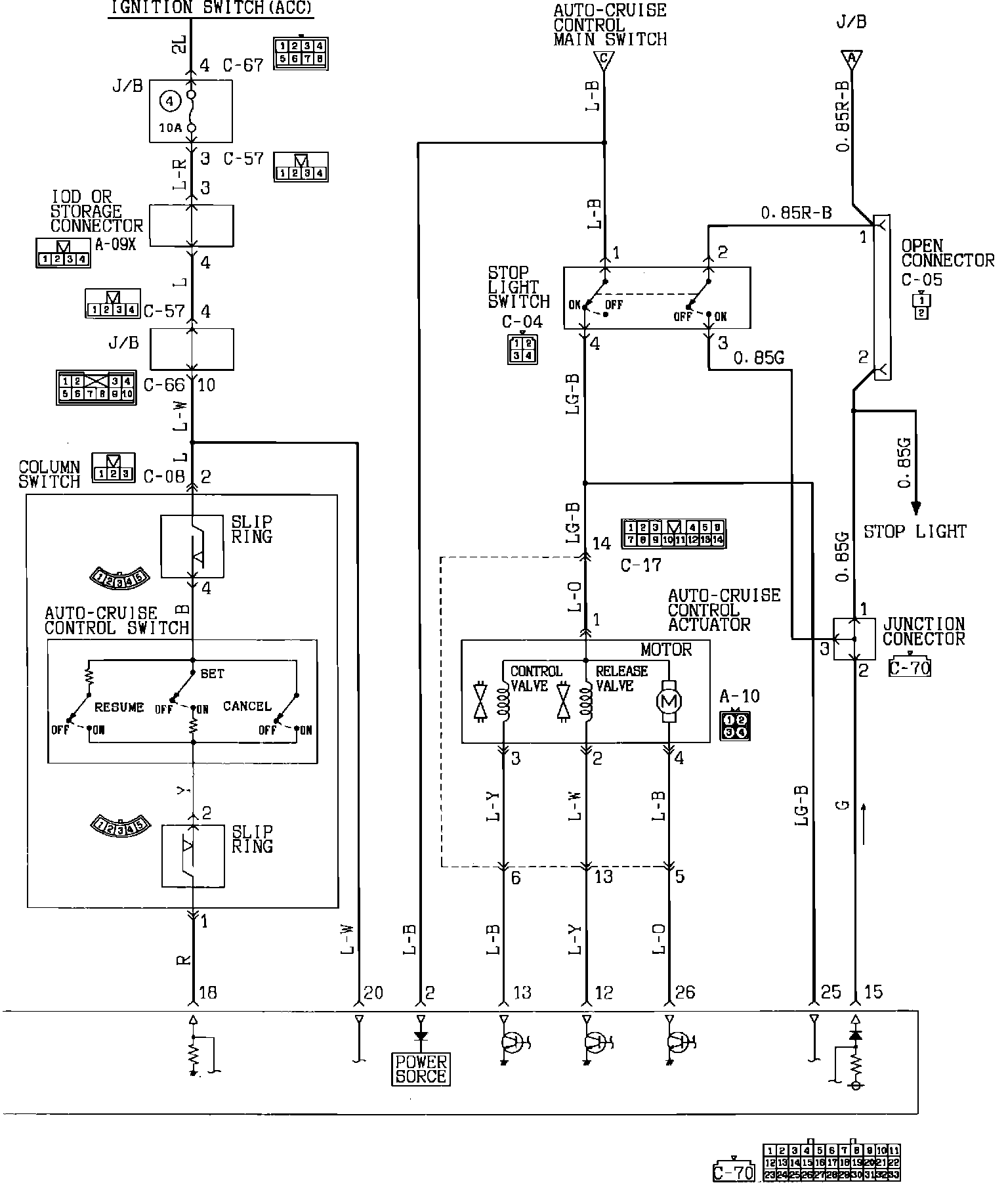

Auto Cruise Control System Diagram:
Auto Cruise Control System Diagram:
Auto Cruise Control System Diagram:
