2 and 3 Digit Codes

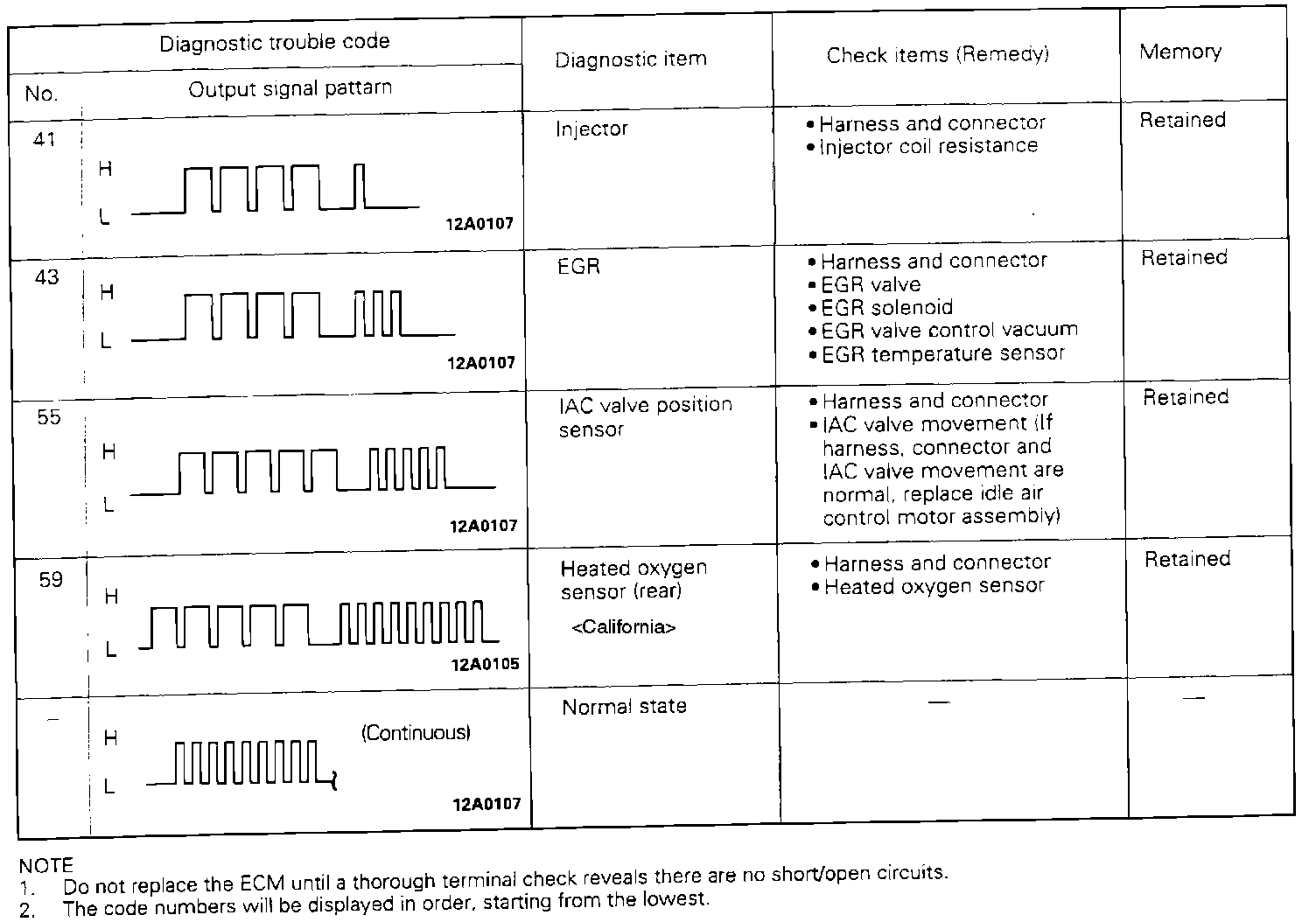

Diagnostic Codes 41 - 59:

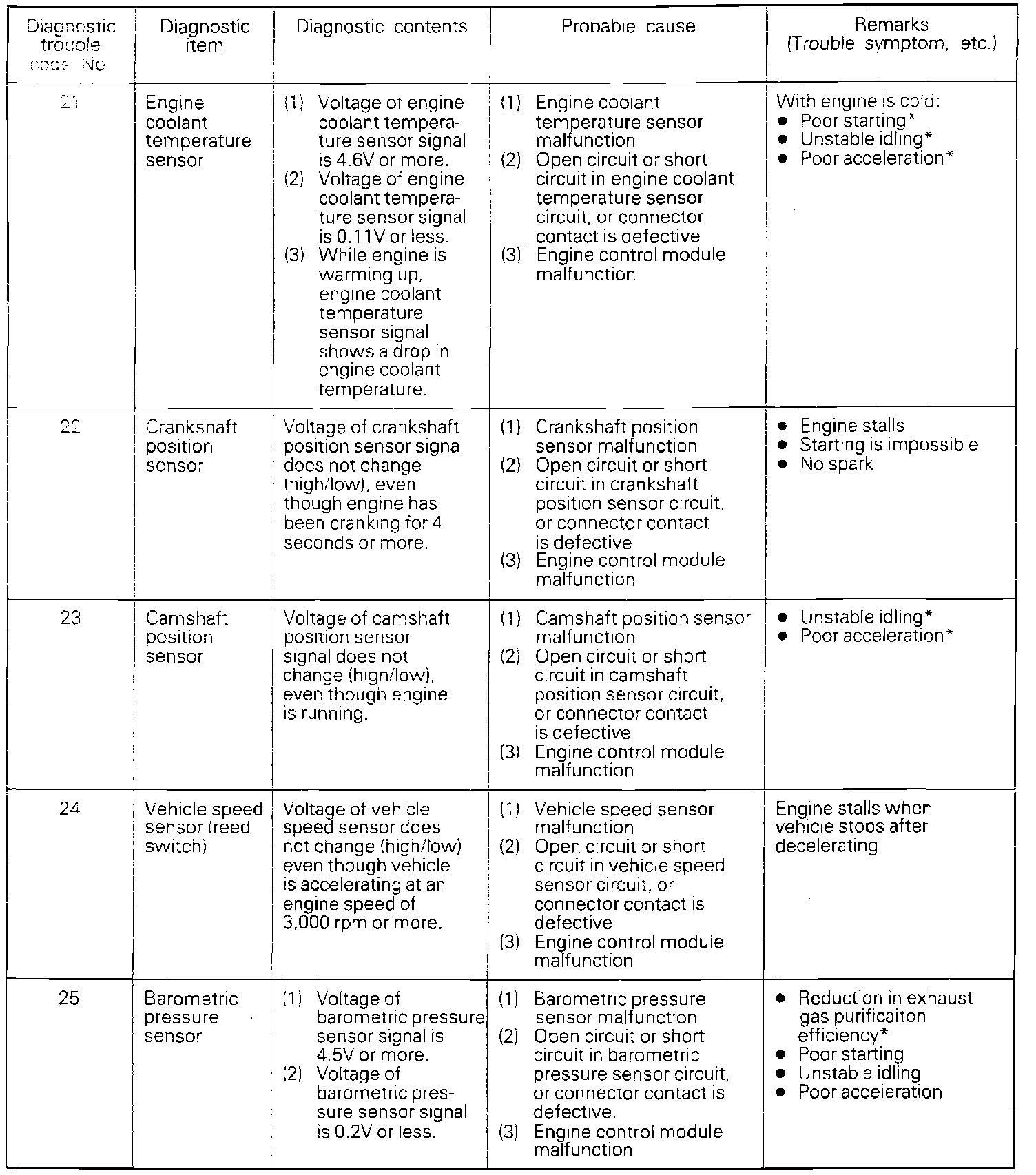

Diagnostic Codes 11 - 36:



Fault Code Cause And Effect Chart:



Fault Code Cause And Effect Chart:



36 - 59:
