With Automatic Transmission

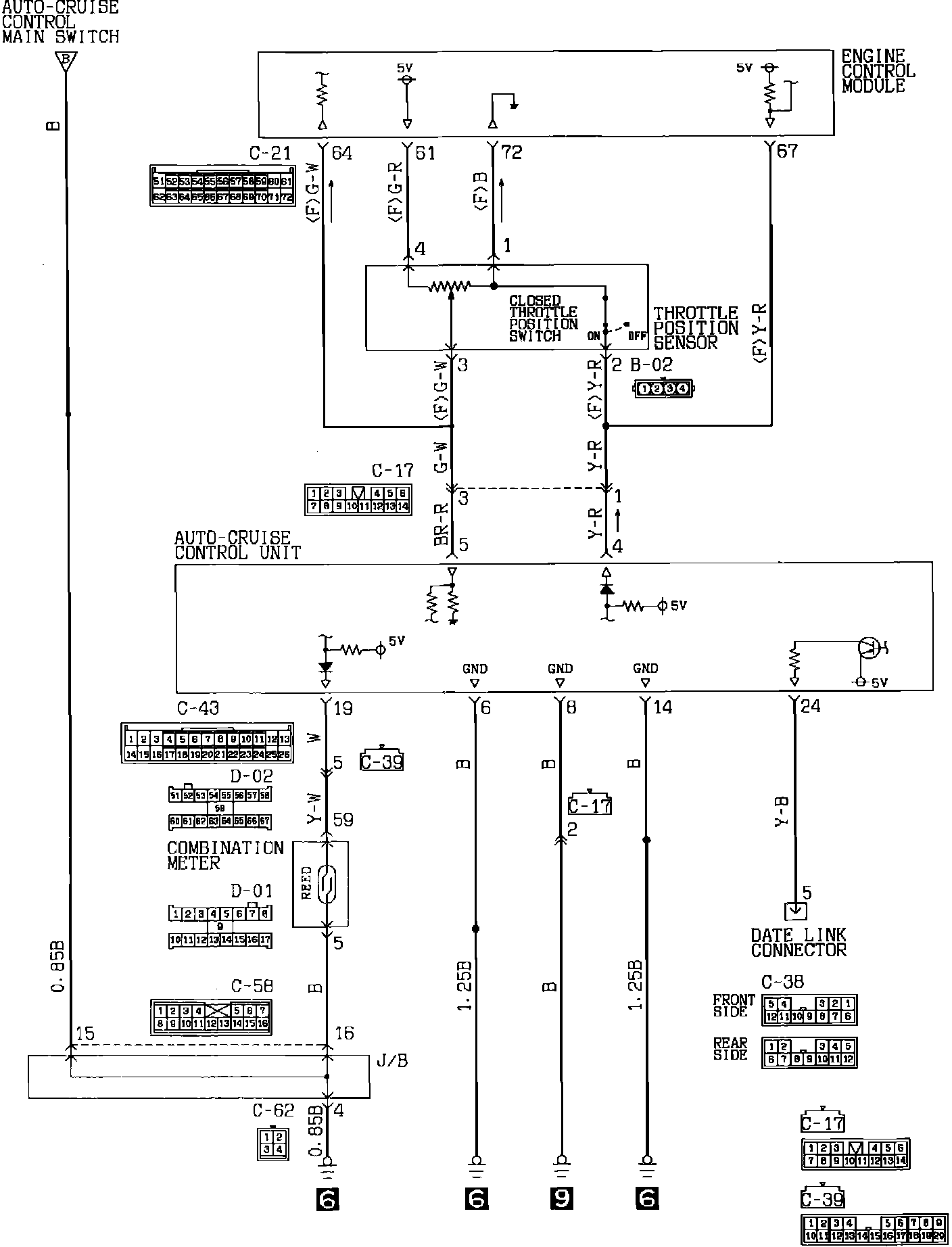

Auto Cruise Control System Diagram:

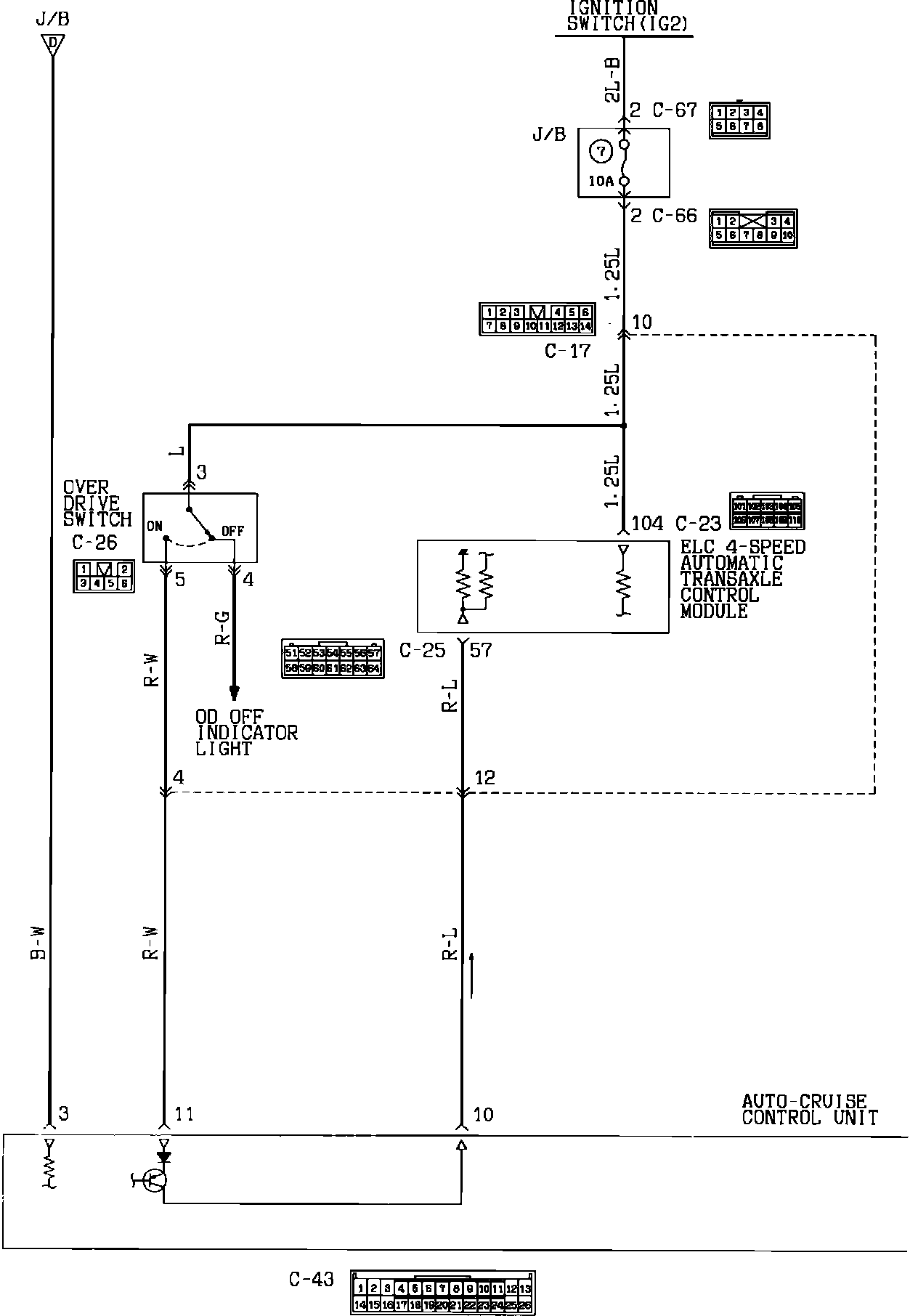

Auto Cruise Control System Diagram:

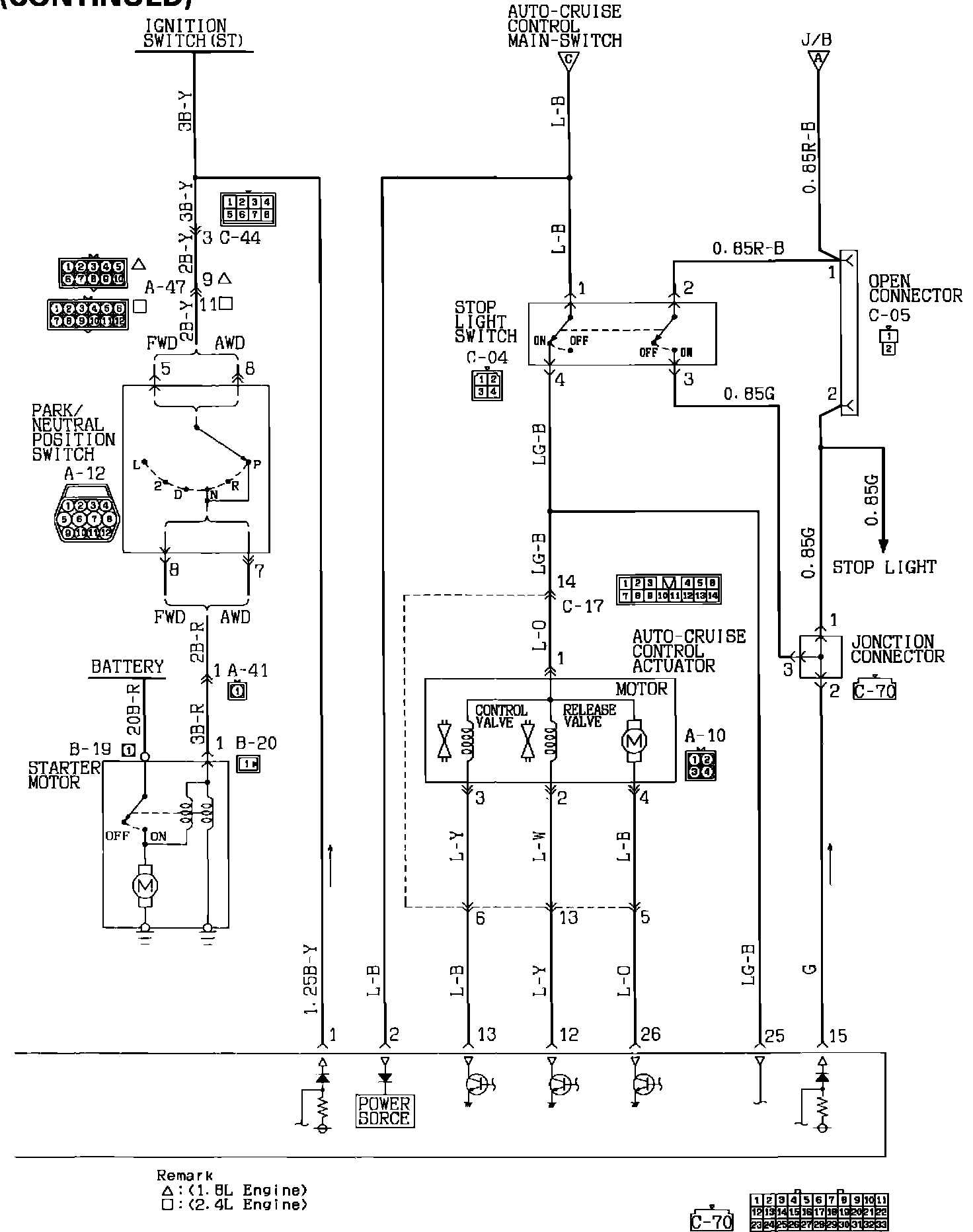

Auto Cruise Control System Diagram:

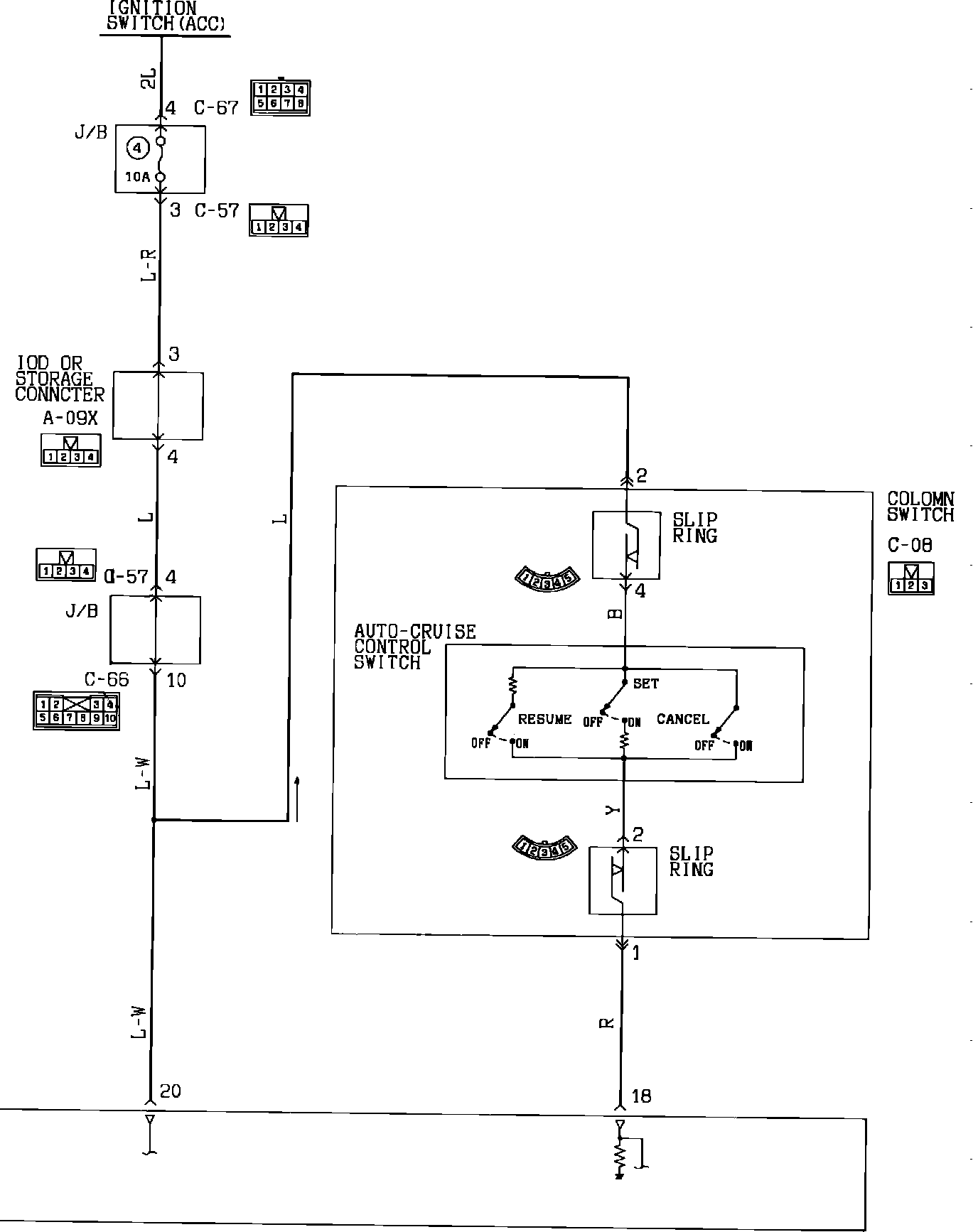

Auto Cruise Control System Diagram:

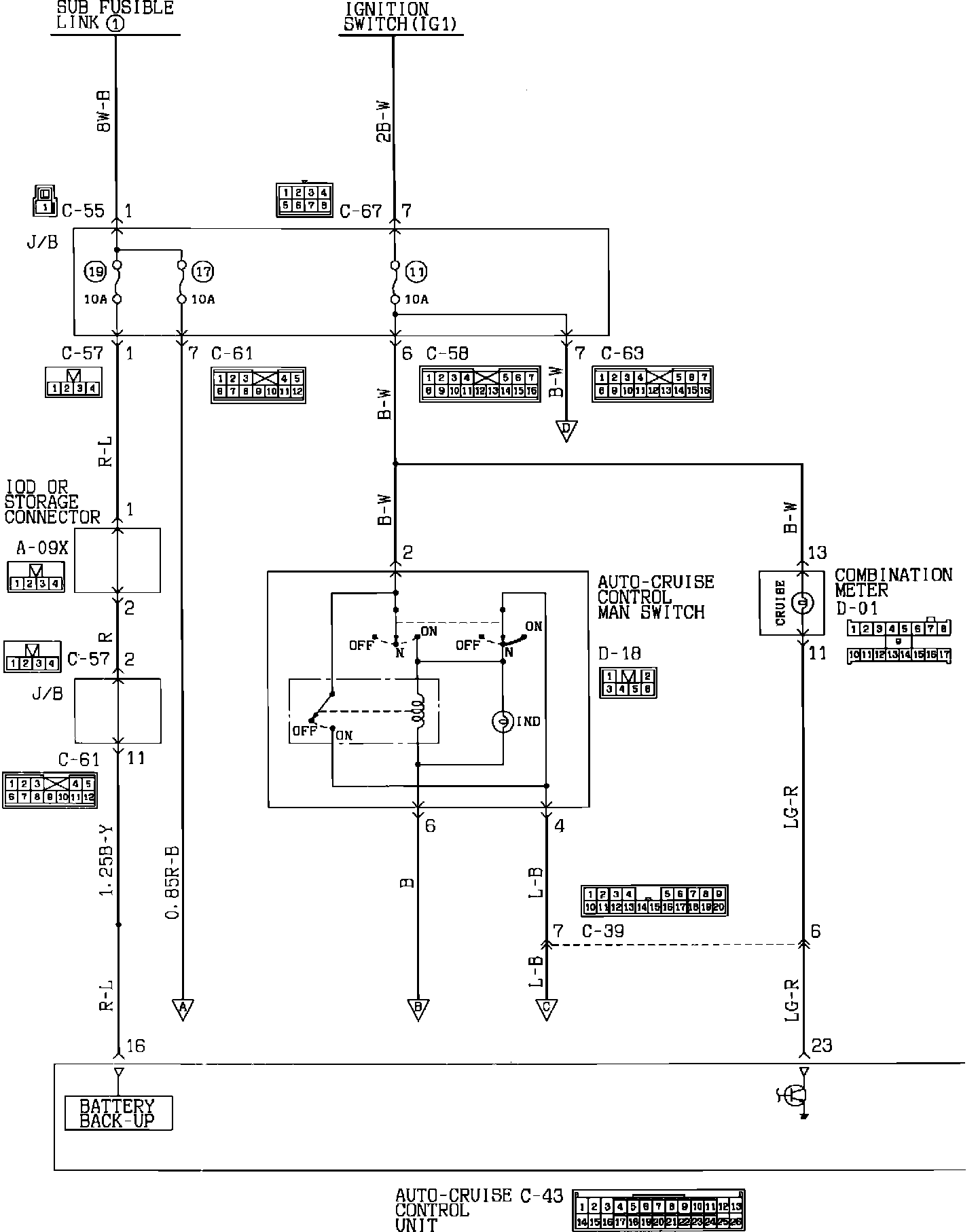

Auto Cruise Control System Diagram:
