Door Locks
>>
With Keyless Entry System
With Keyless Entry System

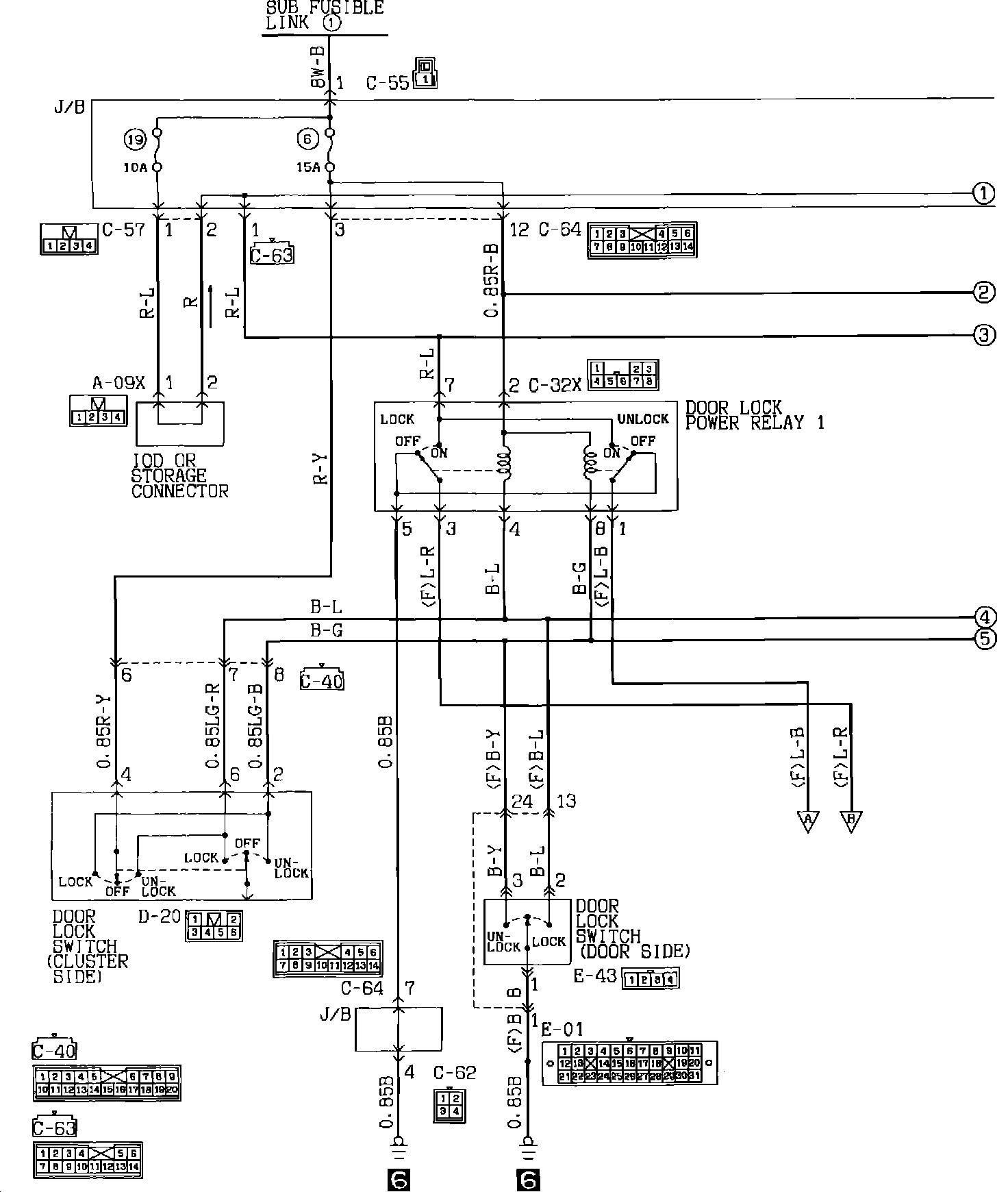

Central Door Locking System:
Central Door Locking System:
Central Door Locking System:
Central Door Locking System:
